Centric 125.66017 - Centric Premium High Carbon Alloy Brake Rotor
$13899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

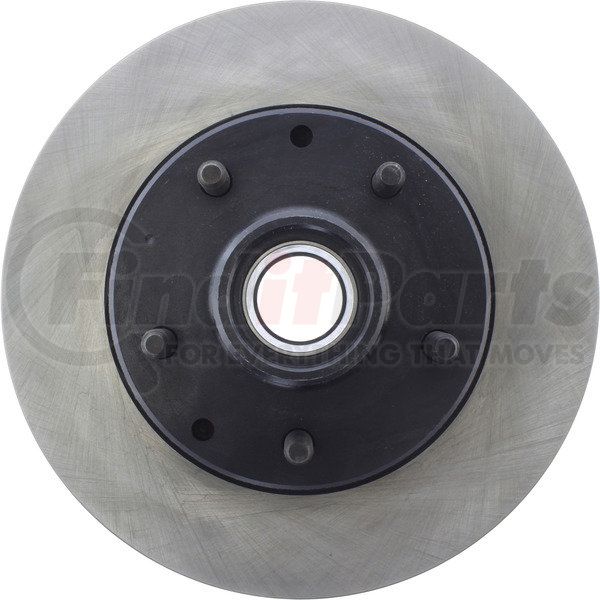

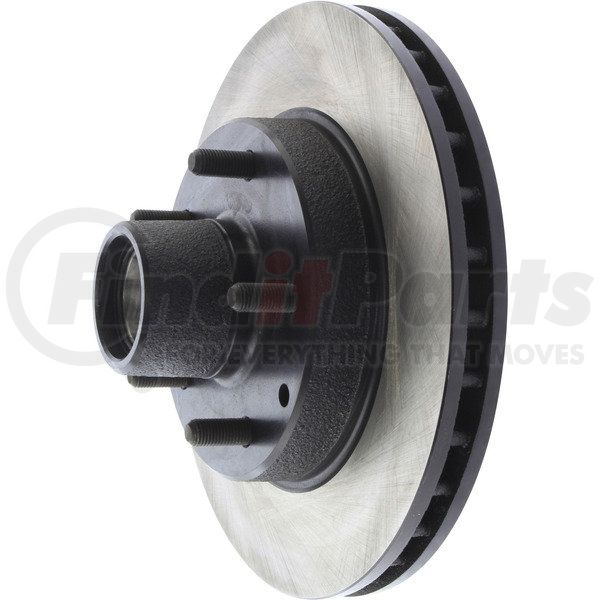

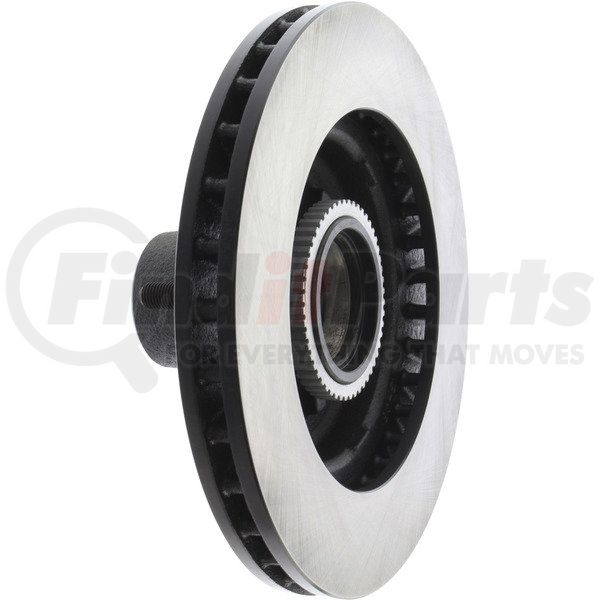

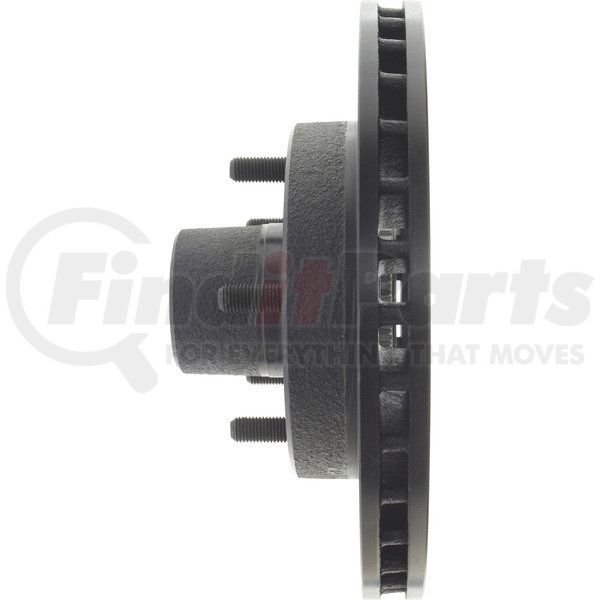

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
Product Attributes
| Outer Bearing # [cntrc] | 410.91034 |
| Weight [cntrc] Lbs | 20.500 |
| Inner Bearing # [cntrc] | 410.91006 |
| Inner Seal # [cntrc] | 417.66004 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.320 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.300 MM |
| Nominal Thickness | 1.035 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 12.000 MM |
| Overall Height | 109.500 MM |
| Overall Height | 4.311 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 266.000 MM |
| Rotor Outside Diameter | 10.472 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 72.000 MM |
| Center Hole Diameter | 2.835 IN |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890133117 |
Part Interchanges
CENTRIC 125.66017 Cross Reference
We have 1 alternatives for the 125.66017 by CENTRIC:
Fits Vehicles
- GMC Sonoma (1991, 1994-2003)
- GMC Jimmy (1992-1997)
- GMC S15 Jimmy (1991)
- Chevrolet S10 (1994-2003)
- Chevrolet Blazer (1995-1997)
- Chevrolet S10 Blazer (1991-1994)
- Isuzu Hombre (1996-2000)
