(888) 312-8812 Login SignupCENTRIC 125.61062 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$5599
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Aug 24
CENTRIC 125.61062 Part Description
Manufacturer
Product Description

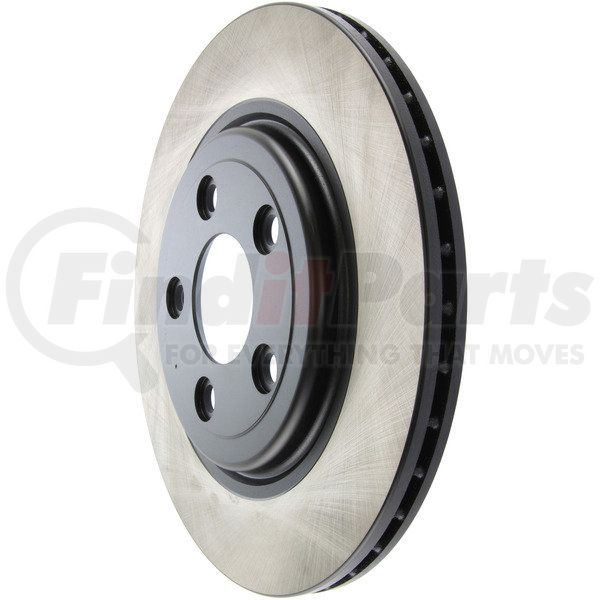

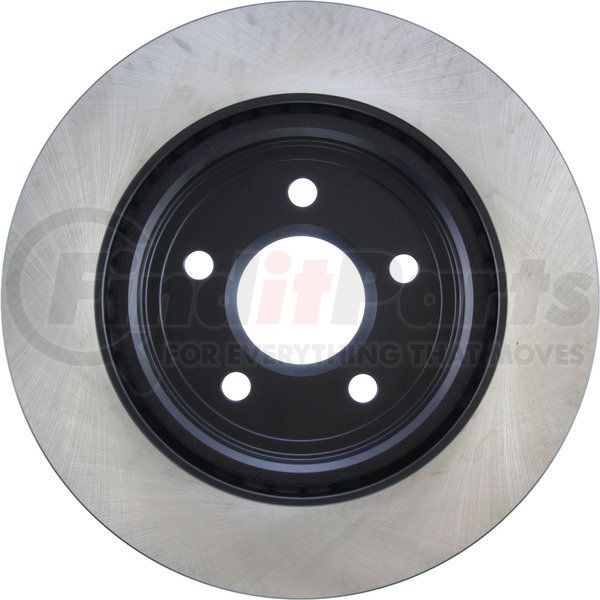

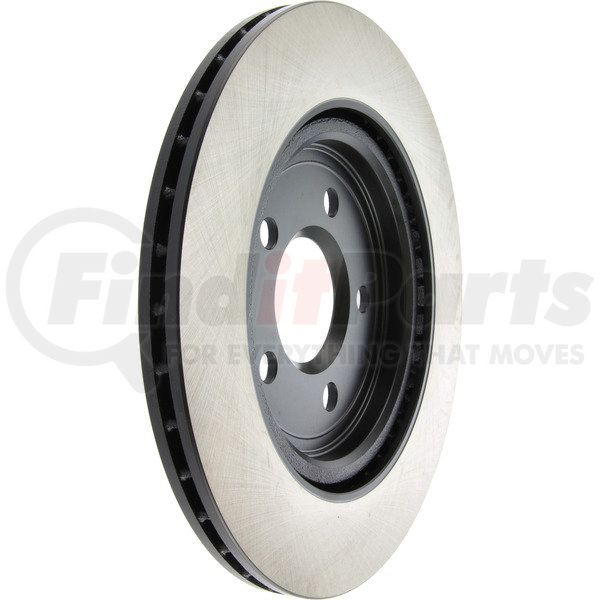

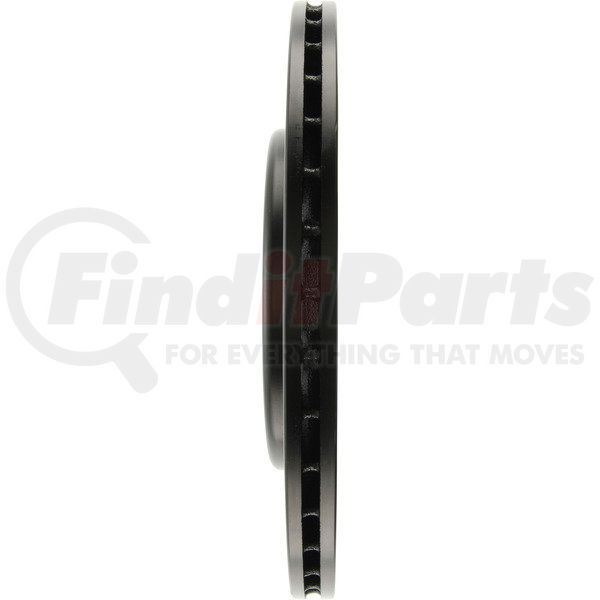

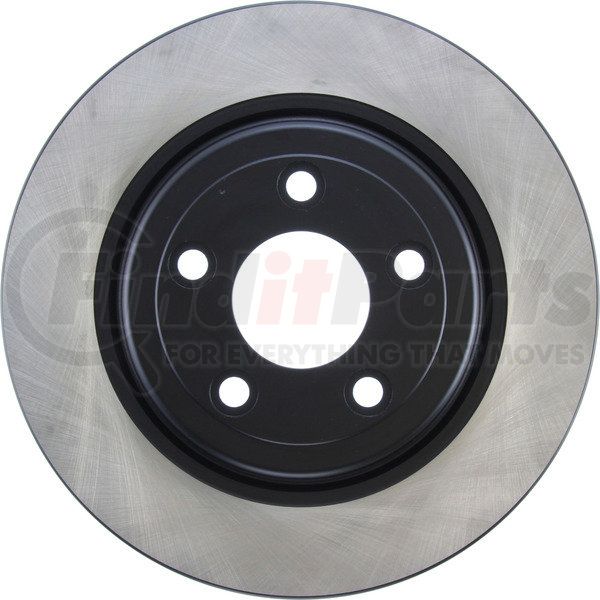

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.61062 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 5.570 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 12.250 |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.500 MM |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Hat Finish | Painted |
| Overall Height | 32.700 MM |
| Overall Height | 1.287 IN |
| Outside Diameter | 288.000 MM |
| Outside Diameter | 11.339 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.535 IN |
| Center Hole Diameter | 64.400 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.100 MM |
| Stud/Lug Hole Diameter | 0.555 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890131908 |
CENTRIC 125.61062 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD125724, BD180175, 0832808, E125-66-067, E130-66-067, 54089, 54089G, 2U2Z1V125EA, JLM20802, XR827087, XW4Z2C026AA, 1R8Z2C026AA, XR858224, XK858129, 102928, 145269, 86840, 4886840, AR8162, E12566067, 1R832C026AA, YH145269, 1407-25696, 25526, 66840P, DDF1108, 19328, 90054046, 290.2262.00 |
| RAYBESTOS | 66840, 66840FZN, 66840R |
| Raybestos Brakes | 66840FZN, 66840R, 66840 |
| WAGNER | BD126249 |
CENTRIC 125.61062 Fits Vehicles
- Lincoln LS (2000-2006)
- Jaguar XJ8 (2004-2005)
- Jaguar Vanden Plas (2004-2005)
- Jaguar S-Type (2000-2005)
- Ford Thunderbird (2002-2005)
