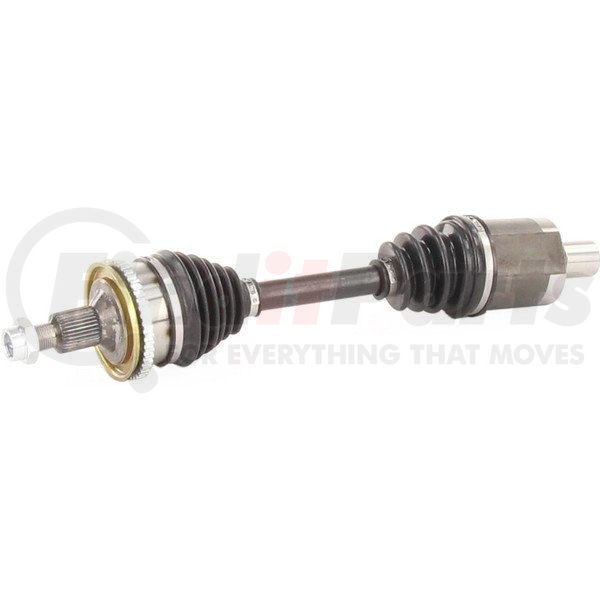

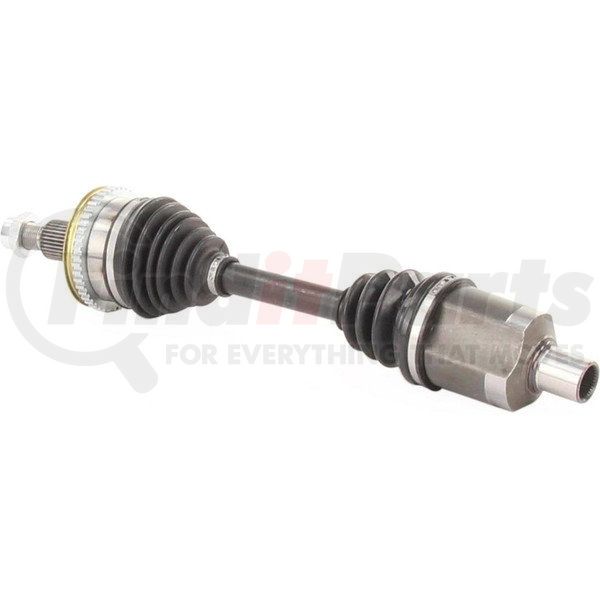

TrakMotive GM-8128 - CV Axle Shaft
- Part Number
- GM-8128
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 47 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .86 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.43 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24x2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.55 |
| Overall Compressed Length (mm) | 522 |
| Axle Nut Socket Size | 36 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084031280 |
Part Interchanges
- ARC 80-2592
- ARC 80-5088
- EMPI 80-1439
- Car Components Technologies (CCT) 8485
- Carquest 411272
- Carquest 801272
- USA Industries AX-67339
- Prestige Autotech 1075
- Drive Tech America GM-6205A
- CARDONE Reman 60-1263
- CARDONE Reman 60-1348
- CARDONE Reman 66-1263
- OEM Part Number 26062351
- OEM Part Number 26064130
- TrakMotive GM-8128
- 411272
- 80-2592
- NCV10541
- 70213
- 179128
Fits Vehicles
- Chevrolet Monte Carlo (1997-1999)
- Chevrolet Lumina (1997-2001)
