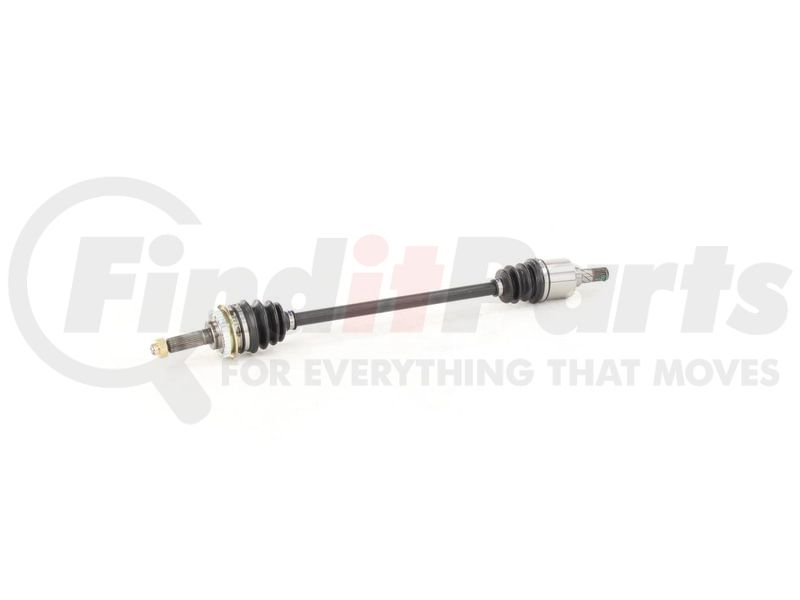

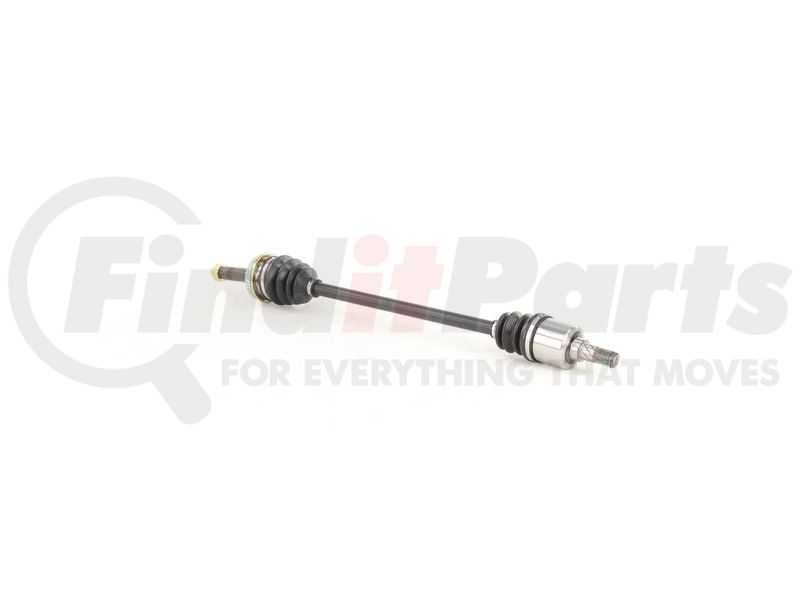

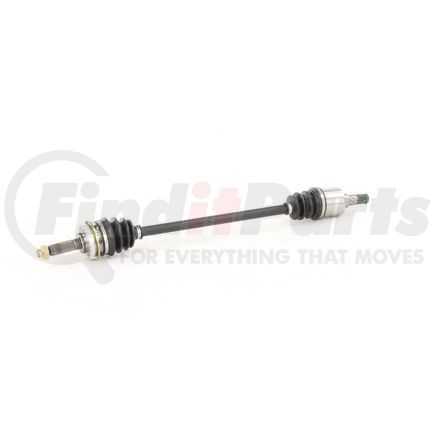

TrakMotive GM-8016 - CV Axle Shaft
- Part Number
- GM-8016
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$9349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 42 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M18x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 23 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.63 |
| Overall Compressed Length (mm) | 778 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084030160 |
Part Interchanges
- ARC 80-3385
- EMPI 80-1248
- Car Components Technologies (CCT) 7784
- Mevotech CV9436
- Carquest 410318
- Carquest 800318
- USA Industries 7087839
- USA Industries AX-8783
- USA Industries AX-87839
- Prestige Autotech 4732
- Prestige Autotech 4736
- American Remanufactured 40-19332S
- Drive Tech America GM-9332A
- Fenwick CV1659
- CARDONE Reman 60-1297
- CARDONE Reman 66-1304
- Carquest Premium AC NCV33504
- OEM Part Number 30013274
- OEM Part Number 30018137
- ODM SK-8-8509A
- TrakMotive GM-8016
- 410318
- NCV33504
- 73508
- 179016
- 800318
- 80-3385
Fits Vehicles
- Geo Metro (1995-1997)
- Chevrolet Metro (1998-2000)
