(888) 312-8812 Login SignupCENTRIC 125.33047 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$5249
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jul 3
CENTRIC 125.33047 Part Description
Manufacturer
Product Description

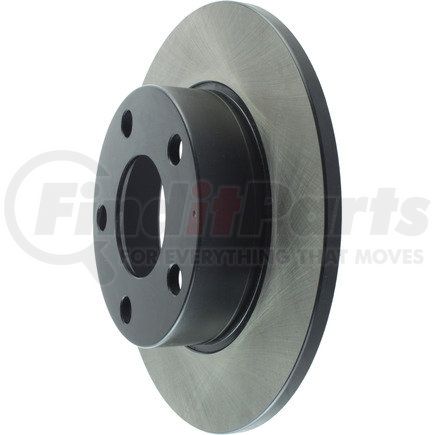

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33047 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 7.500 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 3.410 |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 0.390 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Painted |
| Overall Height | 1.870 IN |
| Overall Height | 47.500 MM |
| Outside Diameter | 245.000 MM |
| Outside Diameter | 9.646 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Diameter | 0.602 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890130239 |
CENTRIC 125.33047 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | SP10224, 410224 |
| N/A | 0832746, 0832809, BD125700, 410224, 6411310, 34167, 34096, 106014, 34167G, 8D0615601A, 8E0615601A, 145323, 86939, 4886939, EBR471, 1.0127.5.4, 125.33047, YH145323, 25596, 25615, 96939P, DDF952, DF4026, 19992, 8996038, 90074014, 100.1232.00 |
| RAYBESTOS | 96939, 96939FZN, 96939R |
| Raybestos Brakes | 96939FZN, 96939R, 96939 |
| WAGNER | BD180093E, BD125700 |
CENTRIC 125.33047 Fits Vehicles
- Volkswagen Passat (1999-2005)
- Audi A4 Quattro (1996-2001)
