CENTRIC 123.67038 Part Description
Manufacturer
Product Description

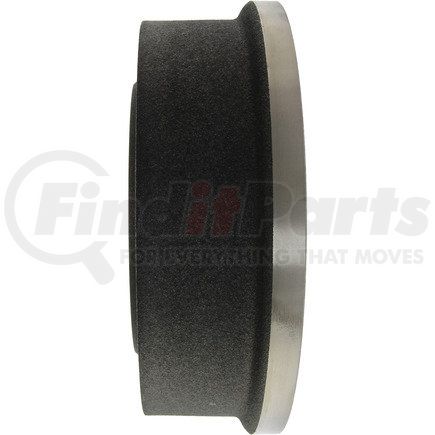

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67038 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.136 |
| Weight [cntrc] Lbs | 24.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 104.394 |
| Height [cntrc] In | 4.110 |
| Friction Surface Width [cntrc] Mm | 74.676 |
| Friction Surface Width [cntrc] In | 2.940 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 282.300 MM |
| Maximum Brake Diameter (Discard) | 11.114 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 326.898 MM |
| Outside Diameter | 12.870 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 17.020 MM |
| Mounting Hole Diameter | 0.670 IN |
| Nominal Drum Diameter | 280.000 MM |
| Nominal Drum Diameter | 11.020 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890209812 |
CENTRIC 123.67038 Cross References
CENTRIC 123.67038 Fits Vehicles
- Dodge Ramcharger (2000-2001)
- Dodge Ram 1500 (2000-2001)
