(888) 312-8812 Login SignupCENTRIC 123.67028 C-Tek Standard Brake Drum
Tap to view 4 more
MSRP: $61.02
$4649
Save $14.53
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
CENTRIC 123.67028 Part Description
Manufacturer
Product Description

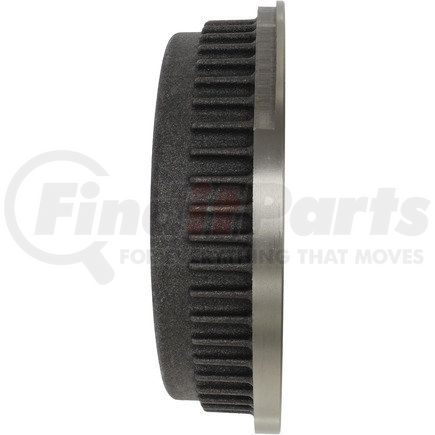

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67028 Specifications
Product Attributes
| Weight [cntrc] Kgs | 8.864 |
| Weight [cntrc] Lbs | 19.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 77.470 |
| Height [cntrc] In | 3.050 |
| Friction Surface Width [cntrc] Mm | 67.056 |
| Friction Surface Width [cntrc] In | 2.640 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 251.200 MM |
| Maximum Brake Diameter (Discard) | 9.890 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 307.594 MM |
| Outside Diameter | 12.110 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 14.478 MM |
| Mounting Hole Diameter | 0.570 IN |
| Nominal Drum Diameter | 250.000 MM |
| Nominal Drum Diameter | 9.843 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890107200 |
CENTRIC 123.67028 Cross References
| Brand | Part Number |
|---|---|
| 9628DGS, 9628, 109628, 52-125491, 52125491 | |
| MAGMA PRODUCTS | PMU14094 |
| N/A | 52-125491, BD125491, 52125491, E127-72-033, E128-72-033, 80020, BD80020, 6391820, D91820, 119628, 80020G, 4683262, 4877262, 4721262, 140681, PDR0681, 203789, 6401709, 440-1709, AD8728, AD8728E, E12772033, E12872033, 100769, 87628, 1408-25704, YH140681, X21841, 23008, 9628, 9628DGS, 9628R, 109628, ZAD8728, 8840028, 78840028, 68460, 36540046 |
| PRONTO | BD80020 |
| RAYBESTOS | 9628, 9628R |
| WAGNER | BD125491 |
CENTRIC 123.67028 Fits Vehicles
- Plymouth Voyager (1996-2000)
- Plymouth Grand Voyager (1996-2000)
- Dodge Grand Caravan (1996-2000)
- Chrysler Voyager (2000)
- Dodge Caravan (1996-2000)
- Chrysler Town & Country (1996-2000)
- Chrysler Grand Voyager (2000-2002)
