(888) 312-8812 Login SignupCENTRIC 123.65007 C-Tek Standard Brake Drum
Tap to view 4 more
$66.79
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.65007 Part Description
Manufacturer
Product Description

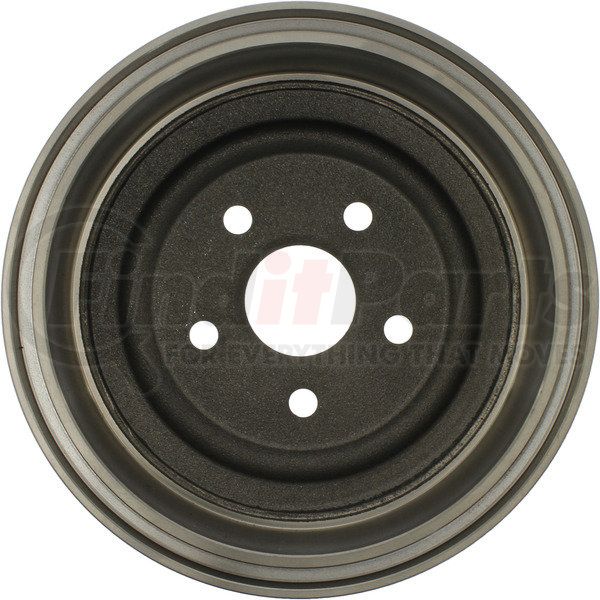

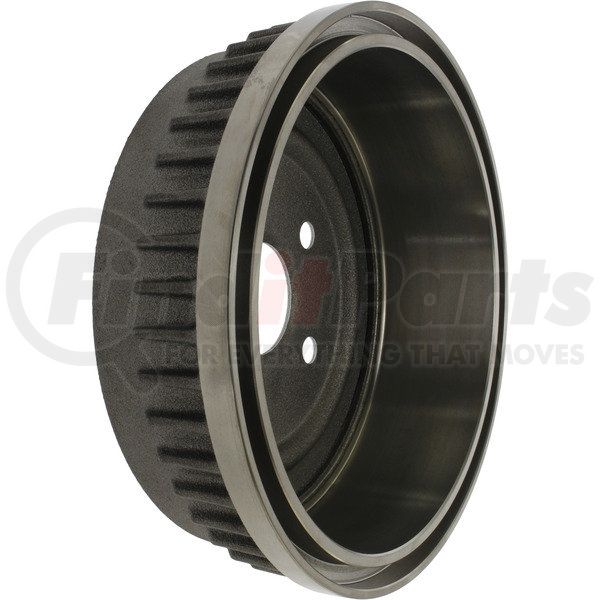

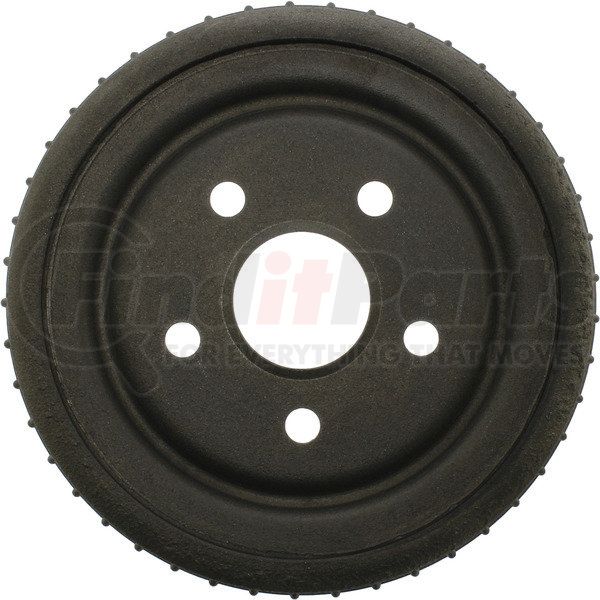

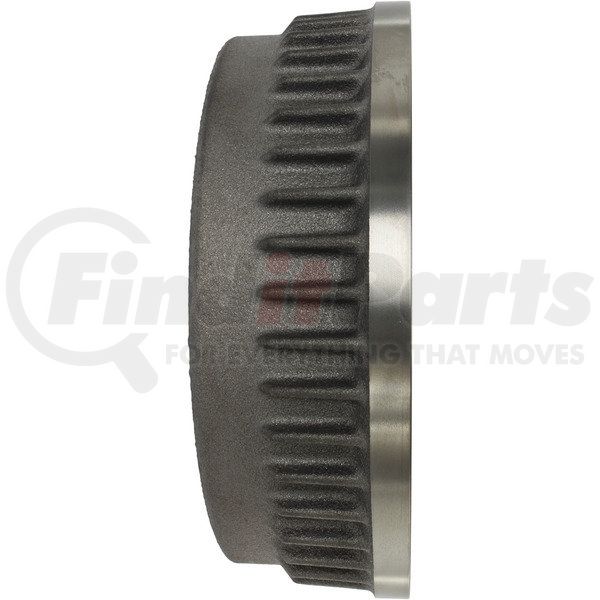

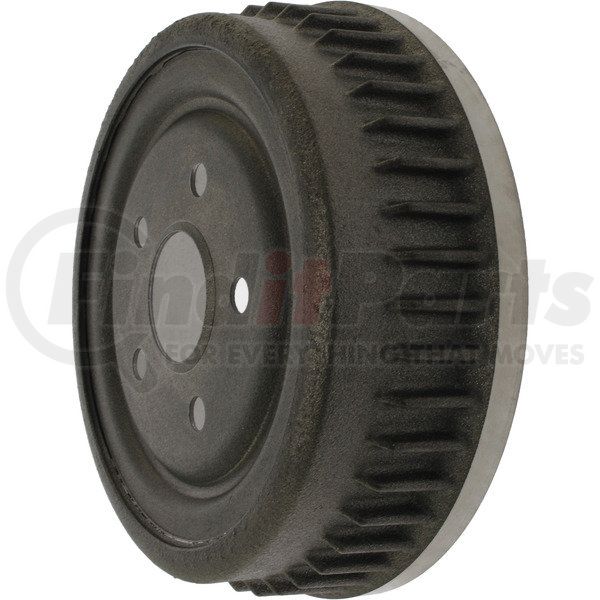

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.65007 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.955 |
| Weight [cntrc] Lbs | 15.300 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 61.722 |
| Hub Hole / Register [cntrc] In | 2.430 |
| Height [cntrc] Mm | 85.852 |
| Height [cntrc] In | 3.380 |
| Friction Surface Width [cntrc] Mm | 74.930 |
| Friction Surface Width [cntrc] In | 2.950 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Maximum Brake Diameter (Discard) | 10.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 297.942 MM |
| Outside Diameter | 11.730 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.494 MM |
| Mounting Hole Diameter | 0.610 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890107170 |
CENTRIC 123.65007 Cross References
| Brand | Part Number |
|---|---|
| 122.65007, F1FZ12A690W | |
| N/A | BD60162, 52-60162, 5260162, E127-70-012, E128-70-012, 8788, BD8788, 123.65007, 8788G, C6TZ1102A, C8UZ1102A, C8UZ1126A, D6TZ1125H, 140144, PDR0144, 202880, 6401146, 915, AD8507, AD8507E, D2648, E12770012, 87064, X21452, BD1106, 2648, 2648R, 2648DGS, 8842007, 78842007, 36554049, 177195 |
| RAYBESTOS | 2648R |
CENTRIC 123.65007 Fits Vehicles
- Ford Econoline (1962-1967)
- Ford E-100 Econoline (1969-1974)
- Ford Club Wagon (1962-1967)
