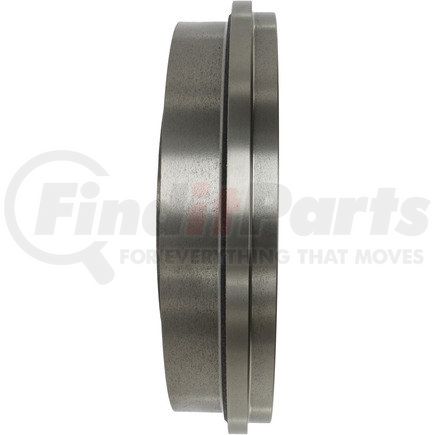

(888) 312-8812 Login SignupCENTRIC 123.63046 C-Tek Standard Brake Drum
Tap to view 4 more
$5049
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Jul 29
CENTRIC 123.63046 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.63046 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.341 |
| Weight [cntrc] Lbs | 13.950 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 65.786 |
| Height [cntrc] In | 2.590 |
| Friction Surface Width [cntrc] Mm | 51.816 |
| Friction Surface Width [cntrc] In | 2.040 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 274.066 MM |
| Outside Diameter | 10.790 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.970 MM |
| Mounting Hole Diameter | 0.550 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890095026 |
CENTRIC 123.63046 Cross References
CENTRIC 123.63046 Fits Vehicles
- Dodge Stratus (2003-2006)
- Chrysler Sebring (2003-2006)
CENTRIC 123.63046 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 123.63046 Questions & Answers
No questions yet
Be the first to ask a question about this product!
