Centric 123.62016 - C-Tek Standard Brake Drum
$8299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

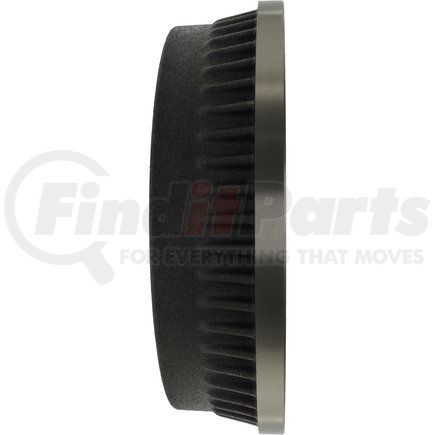

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 8.636 |
| Weight [cntrc] Lbs | 19.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 77.724 |
| Hub Hole / Register [cntrc] In | 3.060 |
| Height [cntrc] Mm | 84.328 |
| Height [cntrc] In | 3.320 |
| Friction Surface Width [cntrc] Mm | 62.230 |
| Friction Surface Width [cntrc] In | 2.450 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 328.930 MM |
| Outside Diameter | 12.950 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.462 MM |
| Mounting Hole Diameter | 0.530 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890052388 |
Part Interchanges
- BD60268
- 52-60268
- 5260268
- E128-67-021
- E127-67-021
- 8870
- BD8870
- D93 580
- 63 93 580
- 8870G
- 112059
- 1235496
- 1244545
- 1244835
- 1244837
- 100973
- 18006035
- 201700
- PDR0199
- 140199
- 440-1255
- 4401255
- 6401255
- 807
- AD8216
- AD8216E
- D2059
- E12767021
- 712059
- 212000C
- 87009
- 1408-25048
- YH140199
- 23017
- X21592
- BD1051
- 2059
- 2059DGS
- 2059R
- 102059
- ZAD8216E
- 78836016
- 78-36016
- 7836016
- 8836016
- 68030
- 18B3
- 177300
- 177360
- 36547015
CENTRIC 123.62016 Cross Reference
We have 4 alternatives for the 123.62016 by CENTRIC:
Fits Vehicles
- Chevrolet Commercial Chassis (1991-1992)
- Chevrolet Brookwood (1971-1972)
- Chevrolet Biscayne (1971-1972)
- Buick Centurion (1971-1973)
- Pontiac Grandville (1971-1975)
- Pontiac Parisienne (1983-1986)
- Pontiac Grand Safari (1971-1978)
- Pontiac Catalina (1971-1981)
- Pontiac Bonneville (1971-1981)
- Oldsmobile 98 (1971-1974, 1977-1984)
- Oldsmobile Custom Cruiser (1977-1986)
- Oldsmobile Delta 88 (1971-1985)
- Chevrolet Impala (1971-1976, 1981-1985)
- Chevrolet Caprice (1971-1976, 1981-1992)
- Cadillac 60 Special (1993)
- Chevrolet Bel Air (1971-1975)
- Cadillac Brougham (1987-1992)
- Cadillac Fleetwood (1977-1986, 1993)
- Cadillac DeVille (1977-1984)
- Cadillac Commercial Chassis (1977-1985, 1992-1993)
- Buick Roadmaster (1992)
- Buick Riviera (1971-1978)
- Buick Estate Wagon (1977-1983)
- Buick LeSabre (1971-1986)
- Buick Electra (1971-1986)
