CENTRIC 123.61009 Part Description
Manufacturer
Product Description

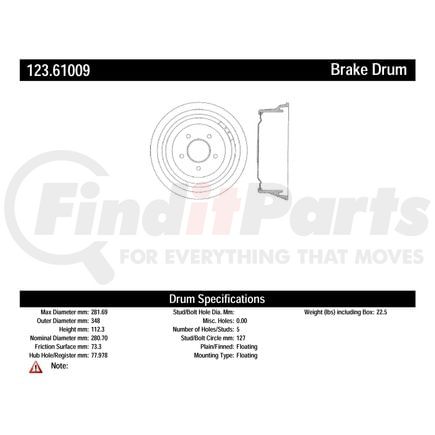

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.61009 Specifications
Product Attributes
| Weight [cntrc] Kgs | 2.168 |
| Weight [cntrc] Lbs | 4.770 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 77.978 |
| Hub Hole / Register [cntrc] In | 3.070 |
| Height [cntrc] Mm | 112.268 |
| Height [cntrc] In | 4.420 |
| Friction Surface Width [cntrc] Mm | 73.406 |
| Friction Surface Width [cntrc] In | 2.890 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 282.400 MM |
| Maximum Brake Diameter (Discard) | 11.120 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 347.980 MM |
| Outside Diameter | 13.700 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.970 MM |
| Mounting Hole Diameter | 0.550 IN |
| Nominal Drum Diameter | 280.700 MM |
| Nominal Drum Diameter | 11.050 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890094913 |
CENTRIC 123.61009 Cross References
| Brand | Part Number |
|---|---|
| 122.61009, F1EZ17A605C | |
| N/A | BD60318, E127-66-014, E128-66-014, 8829, 123.61009, 8829G, D3AZ1126A, D3SZ1126A, PDR0273, 140273, 202290, 6401119, 837, AD8109, D2661, E12766014, C10, C101004, 87017, X21522, BD1112, 2661, 2661R, 2661DGS, 8834009, 78834009, 36554012, 177247 |
| RAYBESTOS | 2661, 2661R |
CENTRIC 123.61009 Fits Vehicles
- Mercury Monterey (1973-1974)
- Mercury Colony Park (1973-1974)
- Lincoln Mark IV (1973-1974)
- Ford Ranch Wagon (1973-1974)
- Ford Galaxie 500 (1973-1974)
- Ford Country Squire (1973-1974)
- Ford Country Sedan (1973-1974)
- Mercury Montego (1973-1976)
- Mercury Grand Marquis (1975-1978)
- Mercury Marquis (1973-1978)
- Lincoln Continental (1973-1979)
- Ford Torino (1973-1976)
- Ford Thunderbird (1973-1976)
- Ford LTD II (1977-1979)
- Ford Gran Torino (1973-1976)
- Ford Elite (1975-1976)
- Ford Custom 500 (1973-1977)
- Ford LTD (1973-1978)
