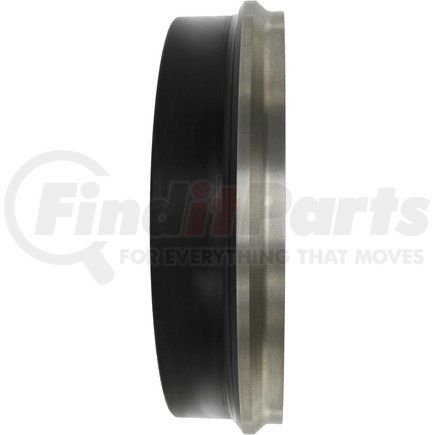

Centric 122.65046 - Centric Premium Brake Drum
$9349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Weight [cntrc] Kgs | 8.477 |
| Weight [cntrc] Lbs | 18.650 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 72.100 |
| Hub Hole / Register [cntrc] In | 2.834 |
| Height [cntrc] Mm | 72.288 |
| Height [cntrc] In | 2.846 |
| Friction Surface Width [cntrc] Mm | 60.930 |
| Friction Surface Width [cntrc] In | 2.399 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Maximum Brake Diameter (Discard) | 10.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 297.100 MM |
| Outside Diameter | 11.697 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.500 MM |
| Mounting Hole Diameter | 0.531 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890396055 |
Part Interchanges
CENTRIC 122.65046 Cross Reference
We have 3 alternatives for the 122.65046 by CENTRIC:
Fits Vehicles
- Mercury Mariner (2008-2011)
- Ford Escape (2008-2012)
- Mazda Tribute (2008-2011)
