(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10550ST 10550ST High Performance, High Volume, High Pressure, Billet Steel Oil Pump
Tap to view 4 more
$19199
Limited availability at this price!
In Stock
Get it by Friday, Sep 4

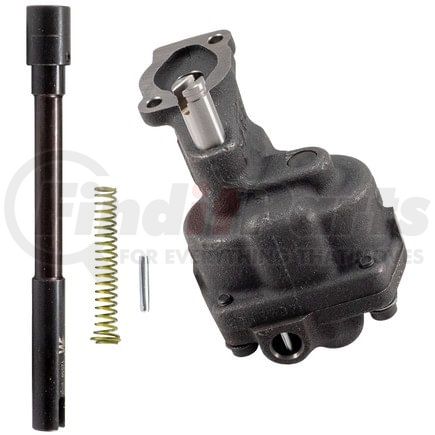

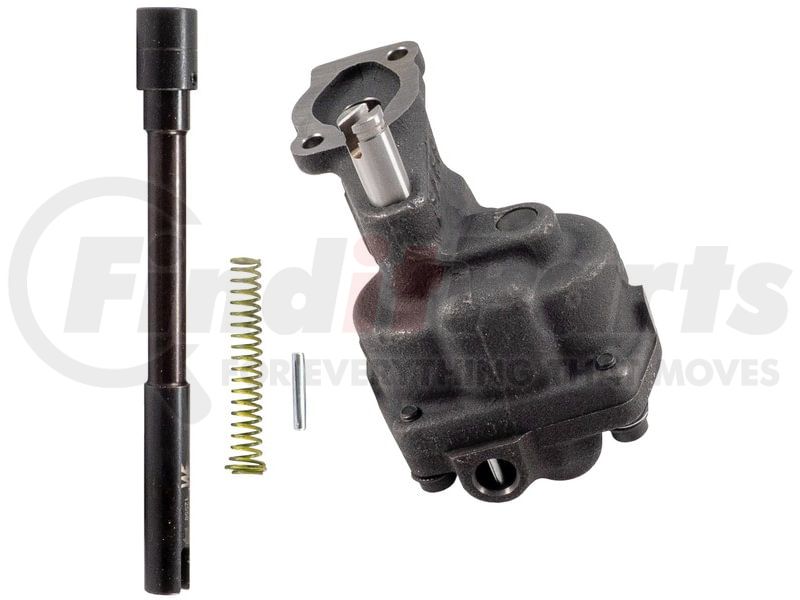

MELLING ENGINE PRODUCTS 10550ST Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- High volume performance upgrade for M-55HV.
- 25% increase in volume over standard oil pump.
- Housing and cover are CNC machined and phosphate coated.
- Includes installed +10 psi higher pressure relief spring and optional -10 psi relief spring.
- Includes 12550 chrome moly intermediate shaft with steel guides.
- Billet steel "Shark Tooth" helical gears.
- Uses 5/8" diameter press in screen.
MELLING ENGINE PRODUCTS 10550ST Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Gear Material | Billet Steel |
| Width | 3.240 IN |
| Width | 82.00 MM |
| Height | 4.500 IN |
| Height | 115.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Tube Diameter | 0.625 IN |
| Pickup Tube Diameter | 16.00 MM |
| Drive Shaft Included | Yes |
| Mounting Hole Diameter | 0.240 IN |
| Mounting Hole Diameter | 6.00 MM |
| Adjustable Bypass Pressure | Yes |
| Additional Cover Shaft Support | No |
| Alternate Pressure Springs Included | Yes |
| Gear Type | Shark Tooth Helical Gear |
| Anti-Cavitation | No |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 25% |
| Manufactured For | GM SBC |
| Upgrade for Pump Number | M-55HV |
| Optional Spring Pressure 1 | (Yellow) 58 PSI |
| Manufactured Pressure | (Green) 70 PSI |
| Optional Spring Pressure 2 | N/A |
| Screen Information | 5/8" Press In |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Yes |
| Governor Spinner Included | No |
| Inlet Size (mm) | 16.00 |
| Nylon Bushing Included | No |
| Guide Included | Yes |
| Hardware Included | No |
| Inlet Size (in) | 0.625 |
| Intermediate Shaft Included | Yes |
| Pickup Screen Included | No |
| Shaft Material | Chromoly Steel |
| Timing Cover Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Washers Included | No |
| Housing Finish | Phosphate Coating |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| UPC | 00729295104711 |
MELLING ENGINE PRODUCTS 10550ST Cross References
| Brand | Part Number |
|---|---|
| MELLING ENGINE PRODUCTS | 10550ST |
| Melling Select Performance | 10550ST |
MELLING ENGINE PRODUCTS 10550ST Fits Vehicles
- Buick LeSabre (1978)
- Chevrolet C15 (1982-1985)
- Chevrolet Commercial Chassis (1991-1994)
- GMC C3500HD (1991-1995)
- Chevrolet C3500HD (1991-1995)
- Chevrolet Estate (1969-1970)
- GMC Truck (1960)
- GMC 3500 (1960-1966)
- GMC 3000 (1960-1966)
- Chevrolet C40 (1960-1962)
- Chevrolet Parkwood (1959-1961)
- Chevrolet 3G (1959)
- Chevrolet 3F (1959)
- Chevrolet 3E (1959)
- Chevrolet 3D (1959)
- Chevrolet 3C (1959)
- Chevrolet 3B (1959)
- Chevrolet Yeoman (1958)
- Chevrolet Truck (1957-1958, 1960)
- Chevrolet Sedan Delivery (1957-1958)
- Chevrolet Nomad (1957-1961)
- Chevrolet Sonora (2000)
- Chevrolet L30 (1999-2000)
- Chevrolet Cargo Van (1997-2000)
- Chevrolet Silverado (1995-1999)
- Chevrolet C35 (1983-2000)
- Chevrolet K20 Panel (1967)
- GMC Suburban (1960-1965)
- GMC K35/K3500 Pickup (1968-1974)
- GMC K25/K2500 Suburban (1967-1974)
- GMC K25/K2500 Pickup (1967-1974)
- GMC K15/K1500 Suburban (1967-1974)
- GMC K15/K1500 Pickup (1967-1974)
- GMC G35/G3500 Van (1970-1974)
- GMC G25/G2500 Van (1967, 1974)
- GMC G15/G1500 Van (1967, 1974)
- GMC C35/C3500 Pickup (1967-1974)
- GMC C25/C2500 Suburban (1967-1974)
- GMC C25/C2500 Pickup (1967-1974)
- GMC C15/C1500 Suburban (1967-1974)
- GMC C15/C1500 Pickup (1967-1974)
- GMC 2500 Series (1960-1963)
- GMC 1500 Series (1960-1963)
- GMC 1000 Series (1960-1963)
- Chevrolet Two-Ten Series (1957)
- Chevrolet Townsman (1969-1972)
- Chevrolet Suburban (1960-1966, 1987, 1990-1994)
- Chevrolet P30 Van (1974)
- Chevrolet P30 Series (1961-1962)
- Chevrolet P20 Van (1974)
- Chevrolet P20 Series (1961-1962)
- Chevrolet P10 Series (1961-1962)
- Chevrolet One-Fifty Series (1957)
- Chevrolet Kingswood (1959-1961, 1969-1972)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K20 Pickup (1960-1974)
- Chevrolet K10 Pickup (1960-1974)
- Chevrolet G30 Van (1974)
- Chevrolet G20 Van (1967-1974)
- Chevrolet G10 Van (1974)
- Chevrolet Del Ray (1957-1958)
- Chevrolet Chevelle (1964-1973)
- Chevrolet C30 Pickup (1960-1974)
- Chevrolet C20 Pickup (1960-1974)
- Chevrolet C10 Pickup (1960-1974)
- Chevrolet Brookwood (1959-1961, 1969-1972)
- Chevrolet Biscayne (1958-1972)
- Pontiac Laurentian (1977-1981)
- Pontiac Ventura (1977)
- Pontiac Sunbird (1978-1979)
- Pontiac Phoenix (1977-1979)
- Pontiac Parisienne (1977-1986)
- Pontiac LeMans (1977-1981)
- Pontiac Grand Prix (1978-1980, 1983-1987)
- Pontiac Grand LeMans (1977-1983)
- Pontiac Grand Am (1978-1980)
- Pontiac Firebird (1977-1987)
- Pontiac Catalina (1980-1981)
- Pontiac Bonneville (1983-1986)
- Oldsmobile Starfire (1977-1979)
- Oldsmobile Omega (1977-1979)
- Oldsmobile Cutlass Supreme (1978-1980)
- Oldsmobile Cutlass Cruiser (1980, 1982)
- Oldsmobile Cutlass Calais (1978-1980)
- Oldsmobile Cutlass Salon (1978-1980)
- Oldsmobile Cutlass (1978-1980)
- GMC Yukon (1992-2000)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC Sprint (1971-1977)
- GMC Sierra 1500 (1999-2002)
- GMC Safari (1985-2001)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC Sonoma (1991-2002)
- GMC S15 (1988-1990)
- GMC S15 Jimmy (1988-1991)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC K3500 (1979-1986, 1988-2000)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986, 1992-1999)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986, 1988-2000)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1986, 1992-1999)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1986, 1988-1999)
- GMC K15 (1975-1978)
- GMC Jimmy (1970-2004)
- GMC Savana 3500 (1996-2002)
- GMC G3500 (1979-1996)
- GMC G35 (1975-1978)
- GMC Savana 2500 (1996-2002)
- GMC G2500 (1979-1995)
- GMC G25 (1975-1978)
- GMC Savana 1500 (1996-2002)
- GMC G1500 (1979-1995)
- GMC G15 (1975-1978)
- GMC Caballero (1978-1987)
- GMC C3500 (1979-1986, 1988-2000)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986, 1992-1999)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986, 1988-2000)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1986, 1992-1999)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986, 1988-1999)
- GMC C15 (1975-1978)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet Tahoe (1995-2000)
- Chevrolet Suburban 1500 (1995-2000)
- Chevrolet Silverado 1500 (1999-2002)
- Chevrolet S10 (1988-2002)
- Chevrolet S10 Blazer (1988-1994)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P30 (1975-1999, 2002)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975, 1977-1978)
- Chevrolet Nova (1969-1979)
- Chevrolet Monza (1975-1979)
- Chevrolet Monte Carlo (1970-1988)
- Chevrolet Malibu (1964-1967, 1973-1983)
- Chevrolet Laguna (1973-1976)
- Chevrolet K3500 (1988-2000)
- Chevrolet K30 (1977-1986)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet K2500 (1988-2000)
- Chevrolet K20 Suburban (1967-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet K1500 (1988-1999)
- Chevrolet K10 Suburban (1967-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet Impala (1958-1985, 1994-1996)
- Chevrolet G30 (1975-1996)
- Chevrolet G20 (1975-1995)
- Chevrolet G10 (1975-1995)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet El Camino (1959-1960, 1964-1987)
- Chevrolet Corvette (1957-1982, 1984-1997)
- Chevrolet Caprice (1966-1996)
- Chevrolet Camaro (1967-1997)
- Chevrolet C3500 (1988-2000)
- Chevrolet C30 (1975-1986)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C20 Suburban (1967-1986)
- Chevrolet C20 (1975-1987)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C1500 (1988-1999)
- Chevrolet C10 Suburban (1967-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1969-1974, 1987-2002)
- Chevrolet Bel Air (1957-1975)
- Chevrolet Astro (1985-2001)
- Cadillac Seville (1976-1980)
- Cadillac Commercial Chassis (1992-1996)
- Cadillac Brougham (1990-1992)
- Cadillac Fleetwood (1993-1996)
- Cadillac Escalade (1999-2000)
- Cadillac Eldorado (1979-1980)
- Buick Skylark (1977-1979)
- Buick Regal (1977-1980, 1982-1987)
- Buick Century (1977-1981)
