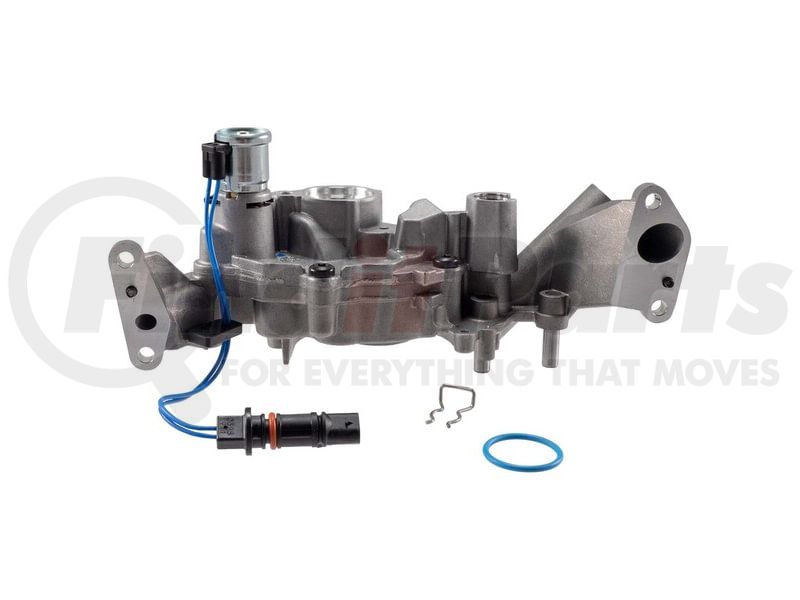

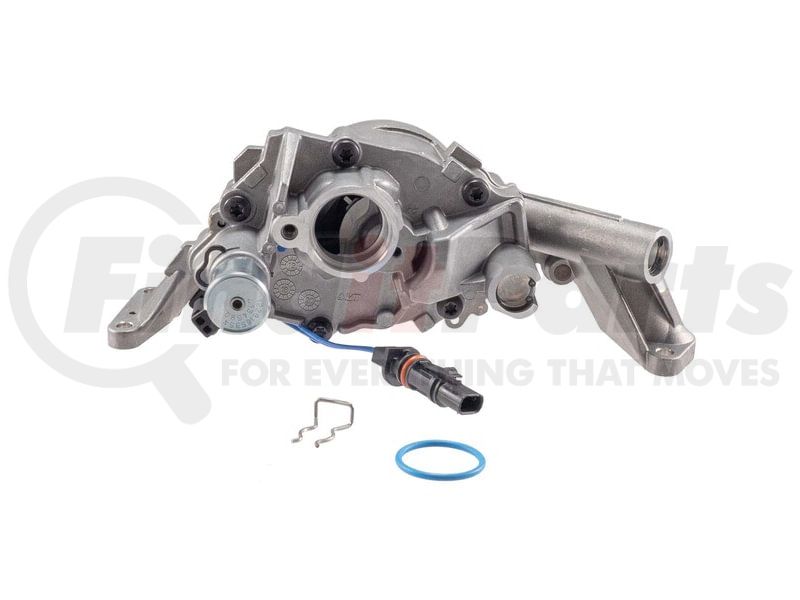

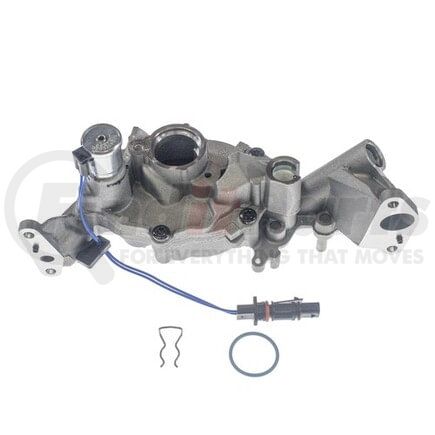

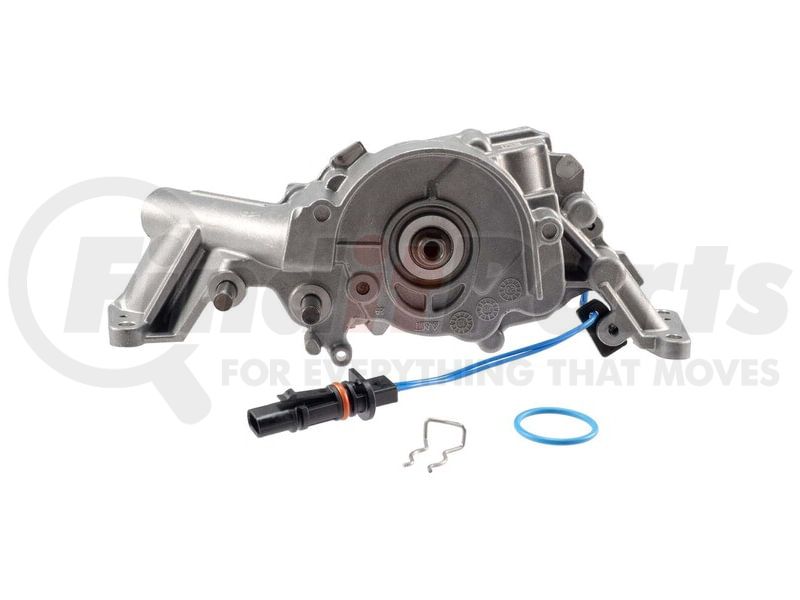

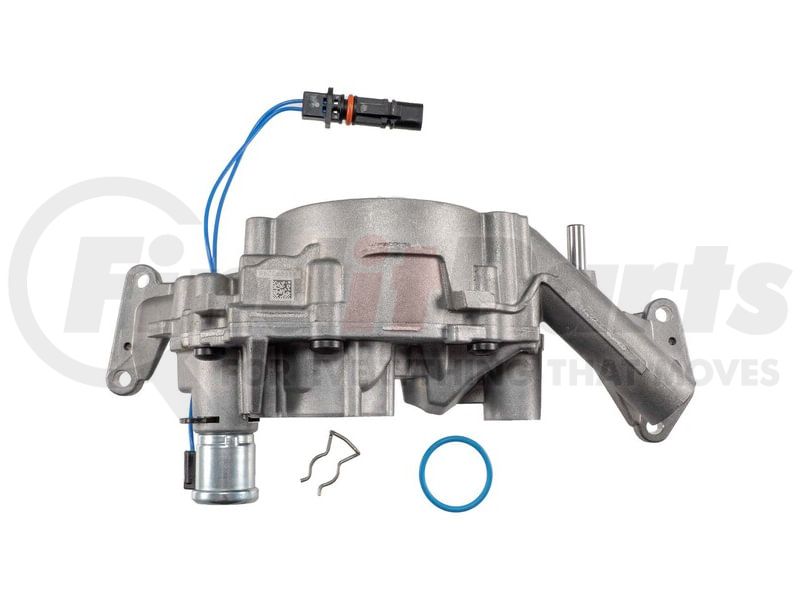

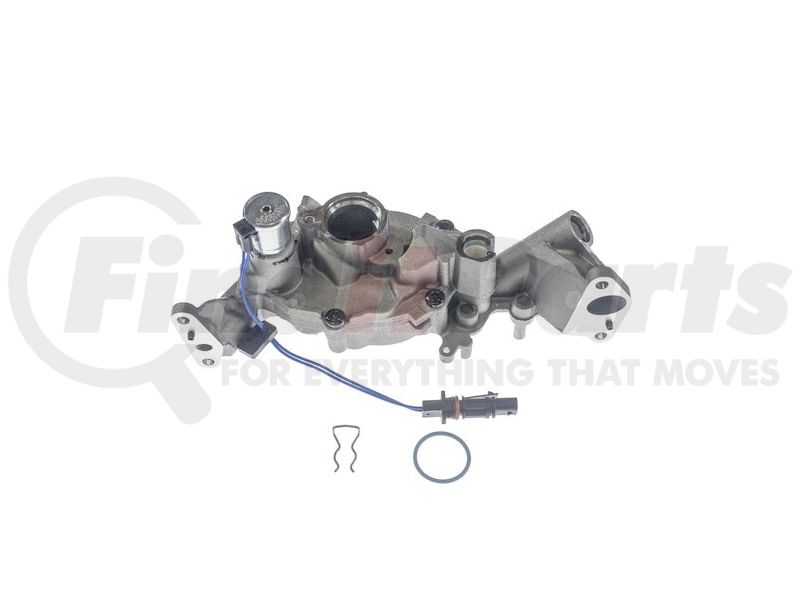

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M528 M528 Stock Replacement : Standard Volume, Standard Pressure, Cast Aluminum Oil Pump With Gasket
Tap to view 4 more
$38199
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 7
MELLING ENGINE PRODUCTS M528 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M528 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 10.25 IN |
| Width | 261.0 MM |
| Height | 3.73 IN |
| Height | 95.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Drive Shaft |
| Oil Pump Type | Rotary |
| Solenoid Included | Yes |
| Mounting Hole Diameter | 0.25 IN |
| Mounting Hole Diameter | 6.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.700 |
| Inlet Size (mm) | 18.00 |
| Cover Material | Aluminum |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Pickup Tube Diameter | 0.700 IN |
| Pickup Tube Diameter | 18.00 MM |
| Rotor Material | Powdered Metal |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CA |
| UPC | 00729295104971 |
MELLING ENGINE PRODUCTS M528 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 5184 295AE, 5184 295AF, 5184 295AG, 6813 8644AA, 6813 8644AB, 6825 2670AA, 6825 2670AB, 6825 2670AM, 6825 2670AN, 6825 2670AO, 6825 2670AP |
| MELLING ENGINE PRODUCTS | M528 |
| Melling | M528 |
| N/A | OP1169, V330763, EP528, 2N1260 |
| Sealed Power | 224-43684 |
| Volkswagen | 7B0 115 103, 7B0 115 103 A, 7B0 115 103 B, 7B0 115 103 F, 7B0 115 105 A |
MELLING ENGINE PRODUCTS M528 Fits Vehicles
- Ram 1500 Classic (2019-2024)
- Jeep Wrangler JK (2018)
- Ram ProMaster 3500 (2014-2021)
- Ram ProMaster 2500 (2014-2021)
- Ram ProMaster 1500 (2014-2021)
- Jeep Cherokee (2014-2022)
- Ram 1500 (2013-2018)
- Ram C/V (2012-2015)
- Jeep Wrangler (2012-2017)
- Volkswagen Routan (2011-2014)
- Chrysler 300 (2011-2023)
- Dodge Durango (2011-2015)
- Dodge Charger (2011-2023)
- Dodge Challenger (2011-2023)
- Dodge Avenger (2011-2014)
- Chrysler 200 (2011-2017)
- Chrysler Town & Country (2011-2016)
- Dodge Grand Caravan (2011-2020)
- Dodge Journey (2011-2019)
- Jeep Grand Cherokee (2011-2015)
