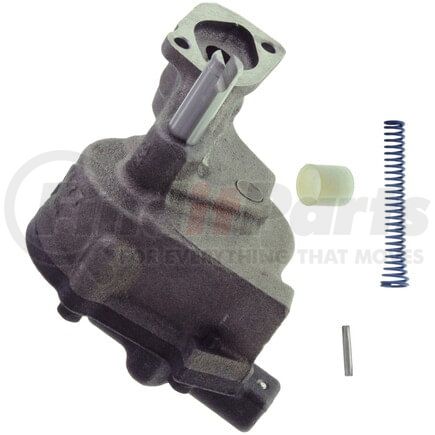

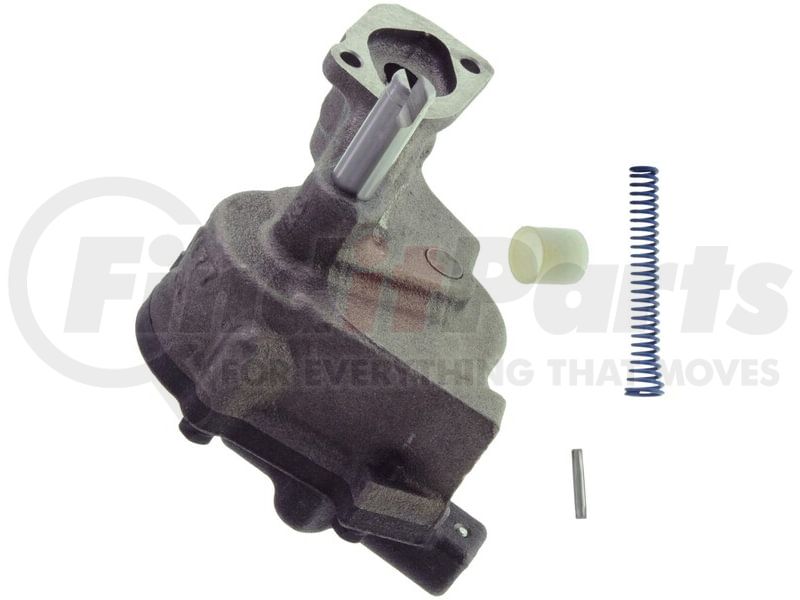

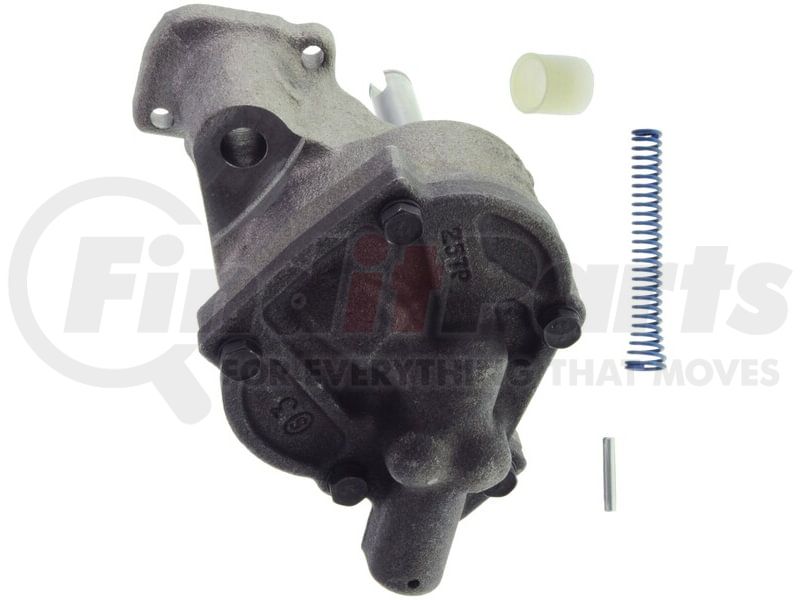

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M77 M-77 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Tap to view 1 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M77 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M77 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 3.82 IN |
| Width | 97.0 MM |
| Height | 4.18 IN |
| Height | 106.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Mounting Hole Diameter | 0.25 IN |
| Mounting Hole Diameter | 6.0 MM |
| Alternate Pressure Springs Included | No |
| Gear Type | Spur Gear |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.750 |
| Inlet Size (mm) | 19.00 |
| Gears Included | Yes |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | Yes |
| Cotter Pin Included | No |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | Yes |
| Nylon Bushing Included | Yes |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.750 IN |
| Pickup Tube Diameter | 19.00 MM |
| Drive Shaft Included | No |
| Adjustable Bypass Pressure | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295101192 |
MELLING ENGINE PRODUCTS M77 Cross References
| Brand | Part Number |
|---|---|
| Avon Automotive | A-77 |
| Badger | 41-54U, B-77 |
| Balkamp | 601-1048 |
| Dynagear | DM-77 |
| Elgin | EM-77 |
| Enginetech | N/A |
| Federated | DM-77 |
| Fleet-Tuf | OP120 |
| General Motors | 3904826, 475908 |
| Hoof | HM77 |
| ITM Engine Components | N/A |
| MAHLE | 601-1048 |
| MELLING ENGINE PRODUCTS | M77 |
| Melling | M-77 |
| Mercury Marine | 808698A1 |
| Muskegon | MM-77 |
| N/A | N/A |
| Perfect Circle | 601-1048, P77 |
| Pioneer | OP-77 |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-4154 |
| TRW | 50054 |
| Topline | N/A |
| Wolverine/Blue Racer | OP-328 |
MELLING ENGINE PRODUCTS M77 Fits Vehicles
- Chevrolet Estate (1969-1970)
- Chevrolet Townsman (1969-1972)
- Chevrolet Nova (1969-1972)
- Chevrolet Kingswood (1969-1972)
- Chevrolet Corvette (1965-1974)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1965-1973)
- Chevrolet Camaro (1967-1972)
- Chevrolet Brookwood (1969-1972)
- Chevrolet Biscayne (1965-1972)
- Chevrolet Monte Carlo (1970-1975)
- Chevrolet Malibu (1975)
- Chevrolet Impala (1965-1976)
- Chevrolet Caprice (1966-1976)
- Chevrolet Bel Air (1965-1975)
