CENTRIC 121.66014 Part Description
Manufacturer
Product Description

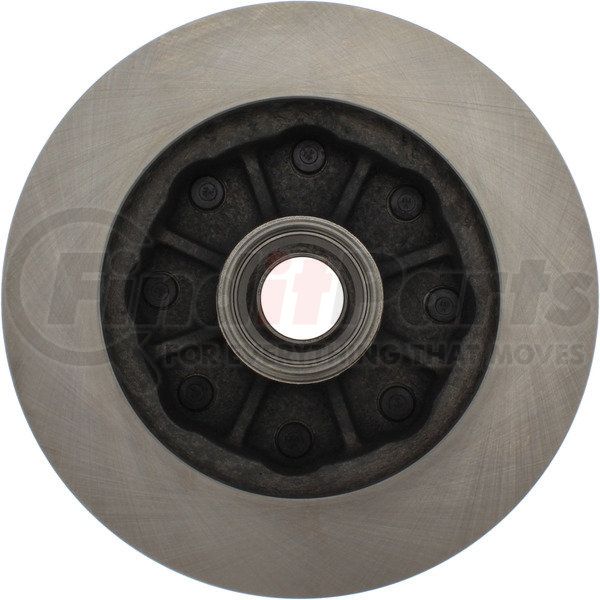

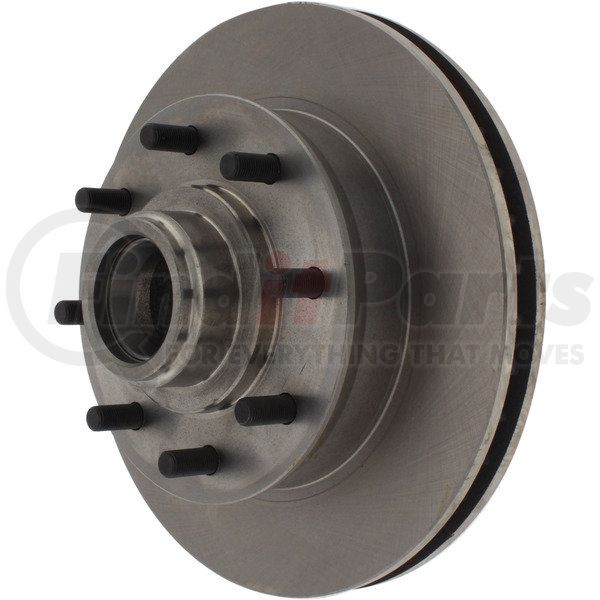

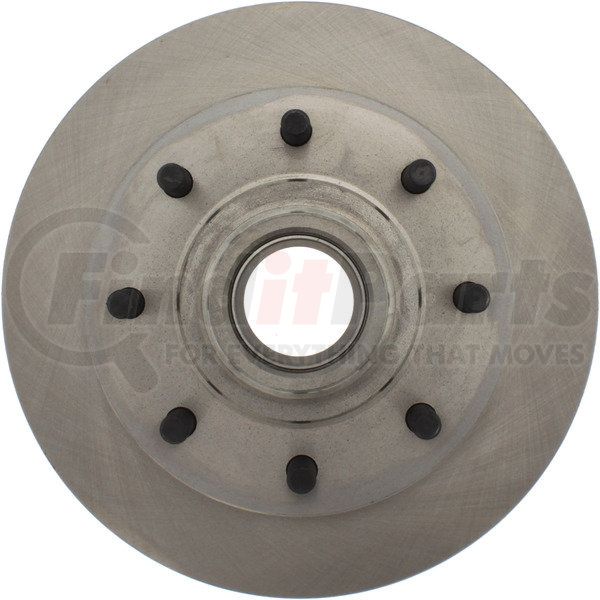

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66014 Specifications
Product Attributes
| Product Grade [cntrc] | Standard |
| Inner Seal # [cntrc] | 417.66008 |
| Outer Bearing # [cntrc] | 415.66000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Race # [cntrc] | 416.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 37.000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Weight [cntrc] Kgs | 16.820 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.700 MM |
| Nominal Thickness | 1.287 IN |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 126.100 MM |
| Overall Height | 4.965 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.200 MM |
| Rotor Outside Diameter | 12.488 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 116.700 MM |
| Center Hole Diameter | 4.594 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890050964 |
CENTRIC 121.66014 Cross References
| Brand | Part Number |
|---|---|
| 105974, 5974RGS, 5974, 52-61814, 5261814, BD61814 | |
| MAGMA PRODUCTS | PMR225181 |
| N/A | 52-61814, 5261814, BD61814, E126-71-019, E125-71-019, 5574, BR5574, 107211, 5574G, 15589447, 15649250, 15981318, 141540, 141807, PRT1807, 101740, 101740E, 4885974, 85974, 574, AR8614, AR8614E, D17309, E8419, E12571019, E12671019, YH141807, 27143, X50364, BR1537, 5974, 5974R, 5974RGS, 105974, 105974R, 7844014, 78944014, 8944014, 78-44014, 65680, 60048013, 177758 |
| RAYBESTOS | 5974R |
| WAGNER | BD125212, BD61814 |
CENTRIC 121.66014 Fits Vehicles
- Chevrolet C3500 (1988-1994)
- Chevrolet C2500 (1989-1994)
- GMC C3500 (1988-1994)
- GMC C2500 (1989-1995)
- Chevrolet C35 (1991-1994)
