CENTRIC 121.39013 Part Description
Manufacturer
Product Description

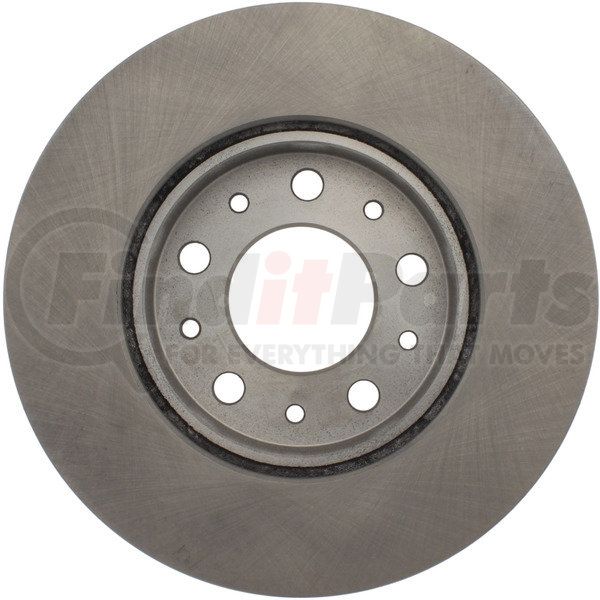

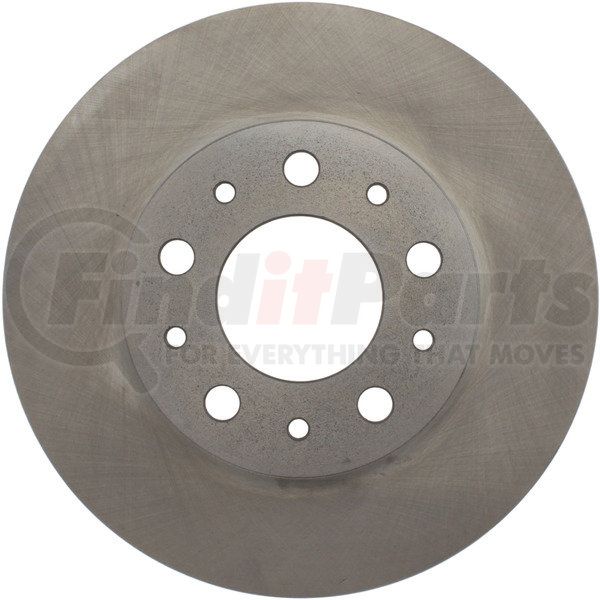

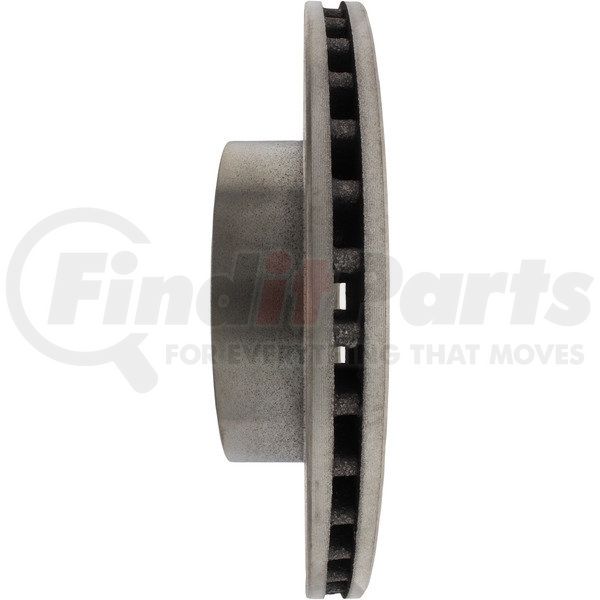

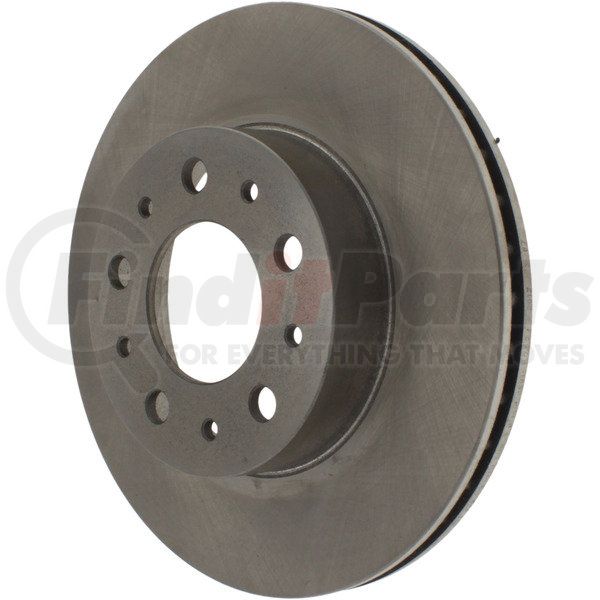

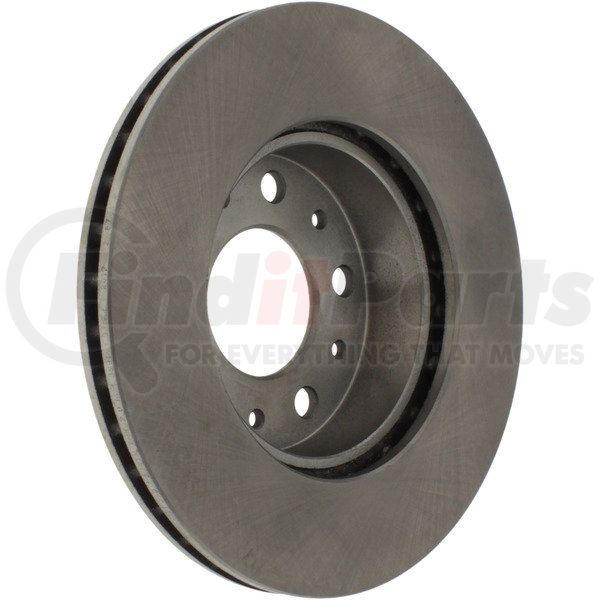

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.39013 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 5.470 |
| Weight [cntrc] Lbs | 12.030 |
| Product Grade [cntrc] | Standard |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 10.335 IN |
| Outside Diameter | 262.500 MM |
| Overall Height | 56.000 MM |
| Overall Height | 2.205 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Discard Thickness | 20.000 MM |
| Discard Thickness | 0.787 IN |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890046585 |
CENTRIC 121.39013 Cross References
| Brand | Part Number |
|---|---|
| 1096460, 96460, 52-61835, 5261835, BD61835 | |
| MAGMA PRODUCTS | PMR603010 |
| N/A | 52-61835, 5261835, BD61835, 0802246, 0832246, 3487, BR3487, 64 21 120, R21 120, 3487G, 106458, 31262100, 13591565, 1359906, 13599063, 1359906A, 2708766, 144870, PRT1531, 141531, 4886460, 86460, 98, EBR271, EBR271E, D17473, 1.6019.2.4, 1601924, VV241V, X50445, 25291, BR1616, 1096460, 1096460R, 96460, 96460R, DDF196, 78-92013, 7892013, 78992013, 63575, 142657, 60027012, 610.1186.00 |
| PRONTO | BR3487 |
| RAYBESTOS | 96460, 96460R |
| WAGNER | BD61835, BD60856 |
CENTRIC 121.39013 Fits Vehicles
- Volvo 760 (1983-1986)
- Volvo 745 (1985)
- Volvo 740 (1985-1990)
