CENTRIC 121.34016 Part Description
Manufacturer
Product Description

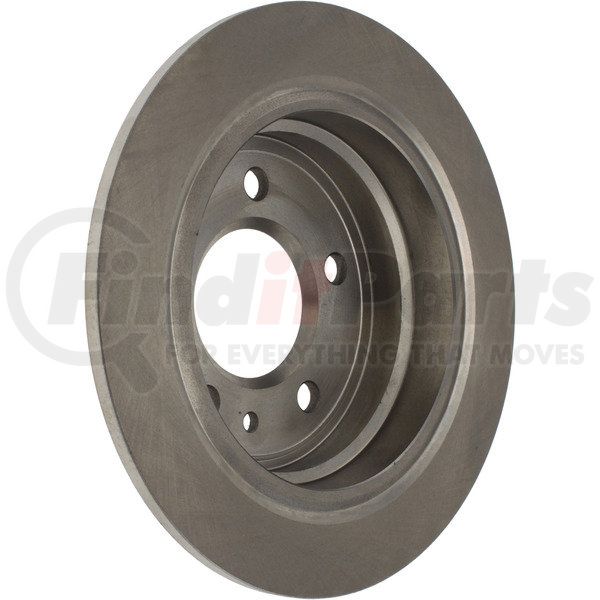

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.34016 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 4.740 |
| Weight [cntrc] Lbs | 10.430 |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 8.400 MM |
| Discard Thickness | 0.331 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Overall Height | 61.100 MM |
| Overall Height | 2.406 IN |
| Outside Diameter | 284.000 MM |
| Outside Diameter | 11.181 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
| Bearings Included | No |
| Center Hole Diameter | 75.000 MM |
| Center Hole Diameter | 2.953 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890312215 |
CENTRIC 121.34016 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 410174 |
| MAGMA PRODUCTS | PMR123011 |
| N/A | BD61860, 0832082, 3409, BR3409, 121.34016, 64 12 030, 3409G, 106656, 34211162968, 34111121387, 34211121387, 34211152571, 34211163140, PRT1336, 141336, 4886308, 86308, 193, EBR206, EBR206E, D17413, 1.0611.5.4, BW111P, X50525, 25099, BR1463, 96308, 96308R, DDF120, DF1566, 8962016, 78962016, 142124, 60031015, 150.1253.00 |
| PRONTO | BR3409 |
| RAYBESTOS | 96308R |
| WAGNER | BD61860 |
CENTRIC 121.34016 Fits Vehicles
- BMW M6 (1987-1988)
- BMW M5 (1988)
- BMW L6 (1987)
- BMW 635CSi (1985-1989)
- BMW 633CSi (1982-1984)
- BMW 535is (1988)
- BMW 535i (1985-1988)
- BMW 533i (1983-1984)
- BMW 528e (1982-1988)
- BMW 524td (1985-1986)
