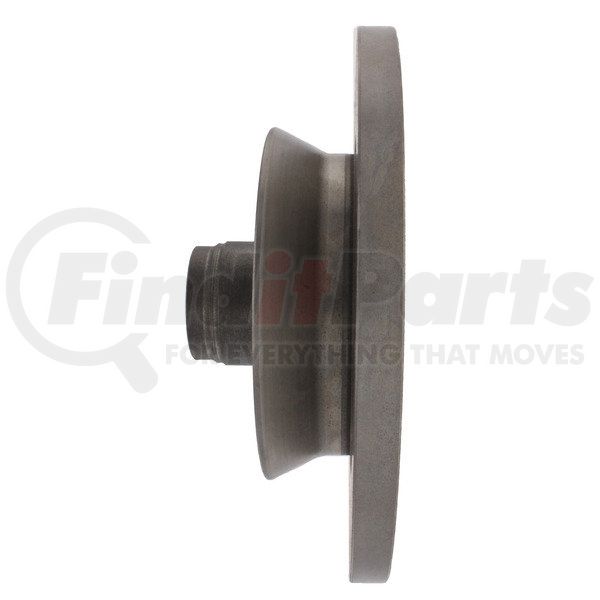

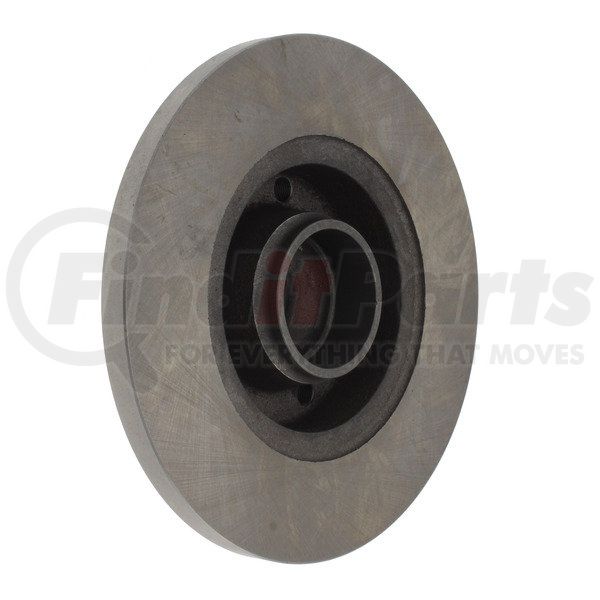

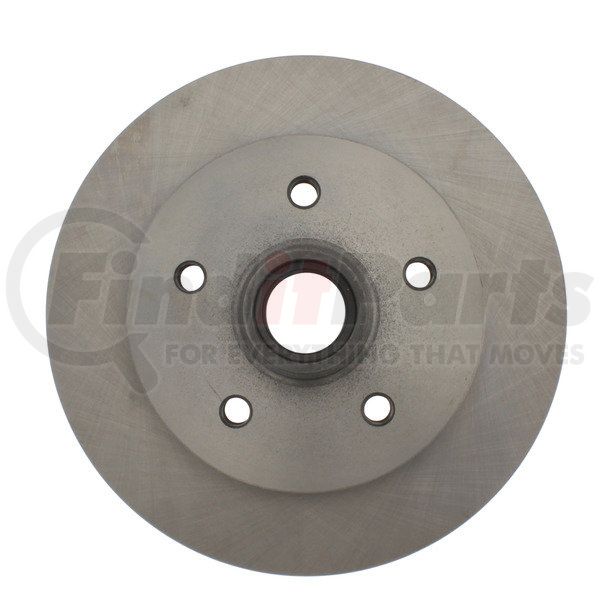

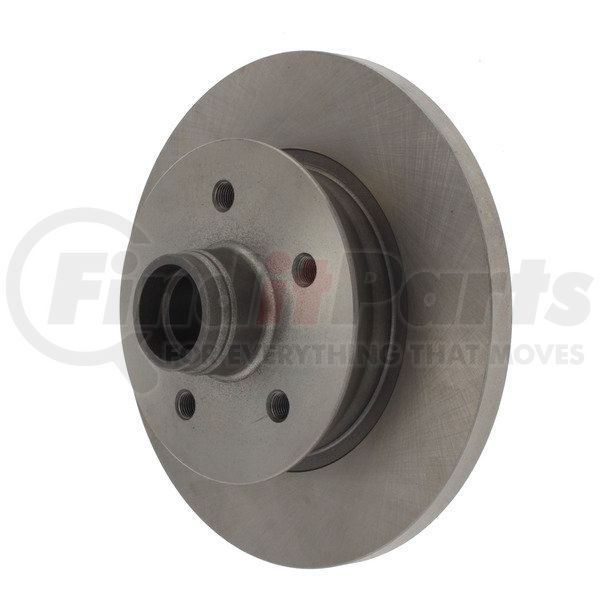

(888) 312-8812 Login SignupCENTRIC 121.33027 C-Tek Standard Brake Rotor
Tap to view 4 more
$9449
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Jul 29
CENTRIC 121.33027 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.33027 Specifications
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 17.280 |
| Outer Bearing # [cntrc] | 410.91002 |
| Inner Bearing # [cntrc] | 415.90000 |
| Inner Seal # [cntrc] | 417.90003 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Standard |
| Inner Race # [cntrc] | 416.90000 |
| Weight [cntrc] Kgs | 7.850 |
| Discard Thickness | 13.000 MM |
| Discard Thickness | 0.512 IN |
| Nominal Thickness | 16.000 MM |
| Nominal Thickness | 0.630 IN |
| Overall Height | 95.500 MM |
| Overall Height | 3.760 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 258.000 MM |
| Rotor Outside Diameter | 10.157 in |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 62.000 MM |
| Center Hole Diameter | 2.441 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 14.000 MM |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890139331 |
CENTRIC 121.33027 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 416104 |
| N/A | 0832184, BD61802, E125-38-032, E126-38-032, 3493, 3421, 121.33027, 64 16 110, 3421G, 251407617D, 251407617F, 251407617G, 251407617K, 251407617M, 251407617N, 251407617L, 117930, PRT1456, 141456, 4885981, 85981, 199, EBR276, EBR276E, D17446, E12538032, E12638032, 1.5814.1.6, VW173C, X50612, 25130, BR1542, 9981, 9981R, DDF542, 78994005, 8994005, 142704, 60074039, 600.1600.00 |
| RAYBESTOS | 9981R |
CENTRIC 121.33027 Fits Vehicles
- Volkswagen Vanagon (1986-1991)
