(888) 312-8812 Login SignupCENTRIC 120.80008 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $169.42
$11699
Save $52.43
Limited availability at this price!
In Stock
Get it by Friday, Jul 3
CENTRIC 120.80008 Part Description
Manufacturer
Product Description

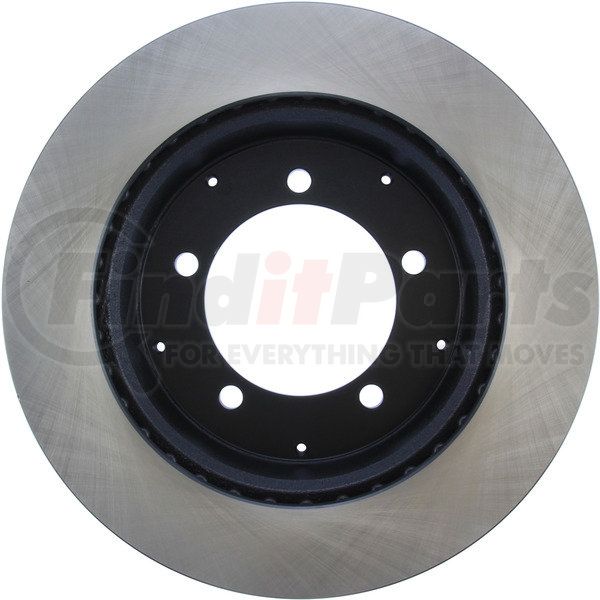

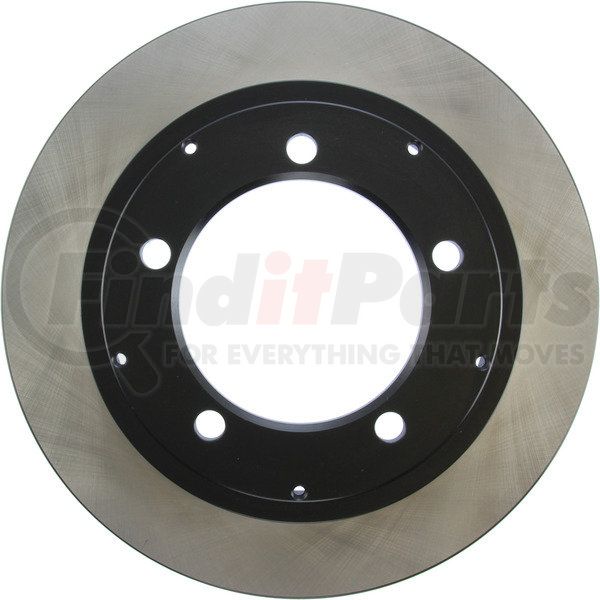

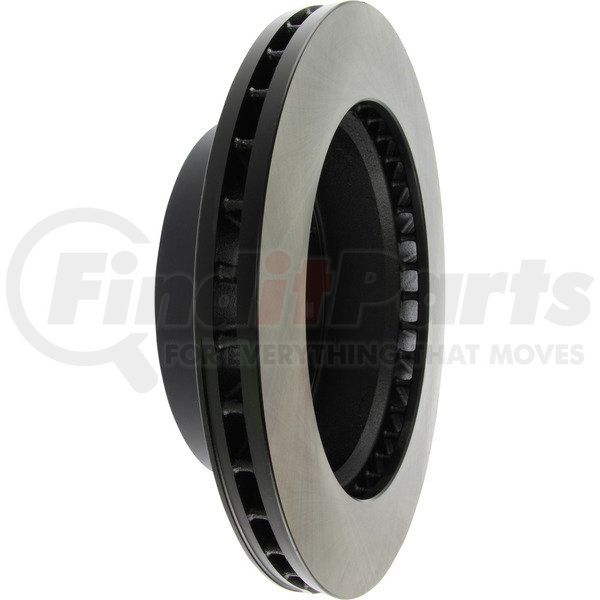

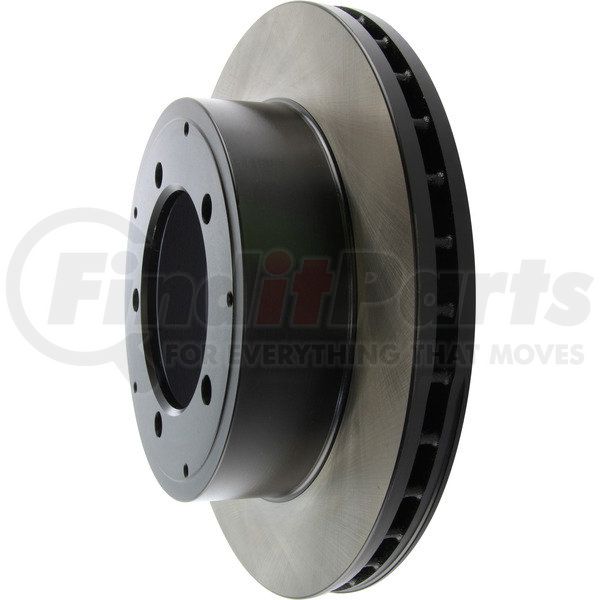

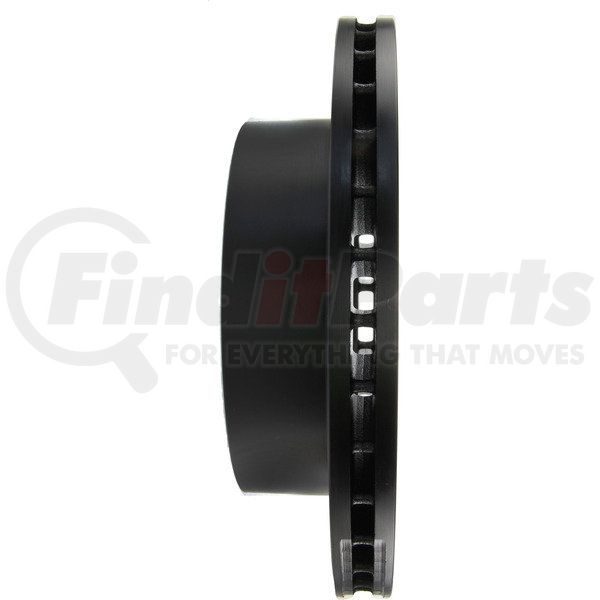

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.80008 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Hat Shaped, Tapped for ABS Ring |
| Weight [cntrc] Kgs | 16.140 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Lbs | 35.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.225 IN |
| Discard Thickness | 31.120 MM |
| Nominal Thickness | 1.344 IN |
| Nominal Thickness | 34.140 MM |
| Overall Height | 3.811 IN |
| Overall Height | 96.800 MM |
| Outside Diameter | 374.600 MM |
| Outside Diameter | 14.748 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 5.402 IN |
| Center Hole Diameter | 137.200 MM |
| Mounting Bolt Hole Circle Diameter | 6.752 IN |
| Mounting Bolt Hole Circle Diameter | 171.500 MM |
| Mounting Bolt Hole Diameter | 16.660 MM |
| Mounting Bolt Hole Diameter | 0.656 IN |
| Hat Finish | Painted |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890044284 |
CENTRIC 120.80008 Cross References
| Brand | Part Number |
|---|---|
| 56994, 8512, BD125088, BD125359, BD125665, 12386682, 15500326, 15514470, 15515716, 15515786, 15619954, 8123866820, 8156199540, 145574, E4229, 23122687002, 23123486002, 56418, 54102F, 54102P | |
| BENDIX | 141271 |
| EUCLID | E11310 |
| MERITOR | 23123486 |
| N/A | BD125088, BD125359, BD125665, E125-85-013, 153122687, 54102F, 54102P, 55053, 55053G, 5584G, 55002G, 1091005, 55002, 12386682, 15514470, 15515716, 15515786, 15619954, 15500326, 8123866820, 8156199540, 18A177, 145574, 101840, 4885859, 4886994, 85859, 86418, 86994, 5584, 702, R6059, D6054, AR9008, D8512, E12585013, E4229, 23122687002, 23123486002, 0620, 122687, 123486, 3159, 3169, 210581, YH141271, YH145574, 72151, X50585, 56418, 8952008, 90048076, 1770908, 177822, 18027777 |
| RAY | 8512 |
| RAYBESTOS | 56994, 56994R |
| Raybestos Brakes | 56994, 56994R, 8512 |
| WAGNER | BD125088, BD125665 |
| WEBB | 54102 |
| WEBB (LIFE SHIELD) | 54102 |
CENTRIC 120.80008 Fits Vehicles
- GMC P60 (1983-1990)
- Isuzu FVR (1996-2002)
- Isuzu FTR (1996-2002)
- Isuzu FSR (1996-2002)
- GMC P6000 (1983-1990, 1992-1996)
- GMC B7 (1993-2002)
- GMC B6000 (1980-1991)
- GMC C7500 Topkick (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet B7 (1993-2002)
- Chevrolet B60 (1980-1991)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- GMC C5000 Topkick (1990-1991)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
- GMC C5000 (1988-1990)
- GMC C7000 (1983-1990)
- GMC C6000 (1983-1990)
- Chevrolet C70 (1983-1990)
- Chevrolet C60 (1983-1990)
- Chevrolet C50 (1983-1990)
- GMC P4500 (1988-1990)
- Chevrolet P40 (1988)
- Chevrolet P60 (1983-1990, 1992-1996)
- GMC T7500 (1997-2002)
- GMC T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- GMC P6500 (1992-1996)
- Chevrolet P6000 (1992-1996)
