CENTRIC 120.65101 Part Description
Manufacturer
Product Description

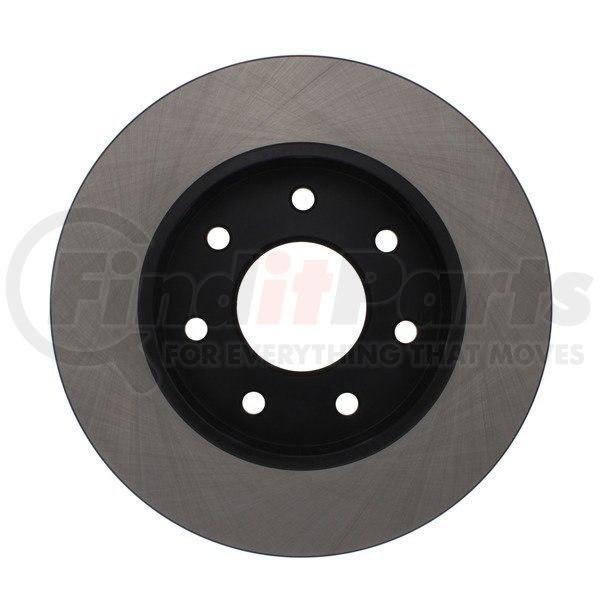

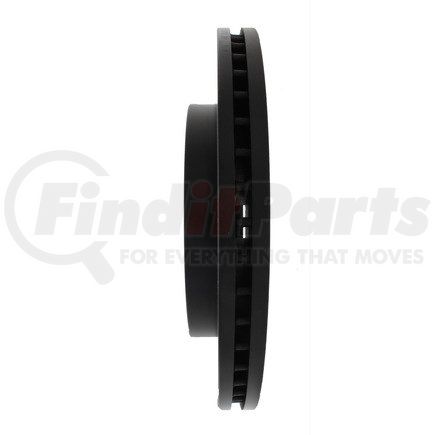

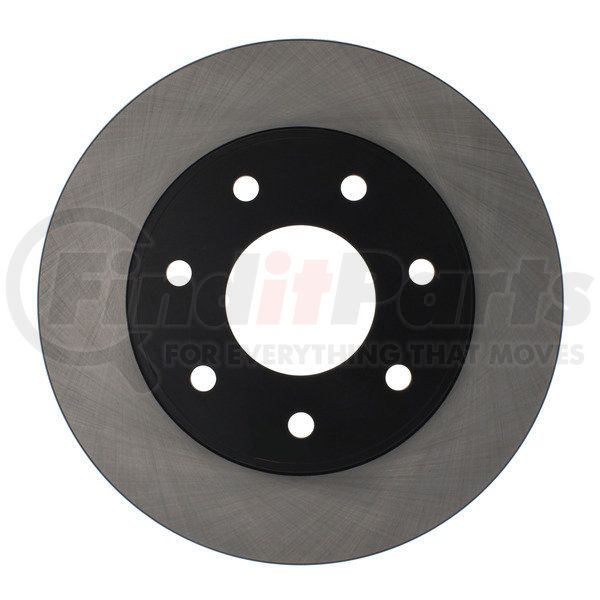

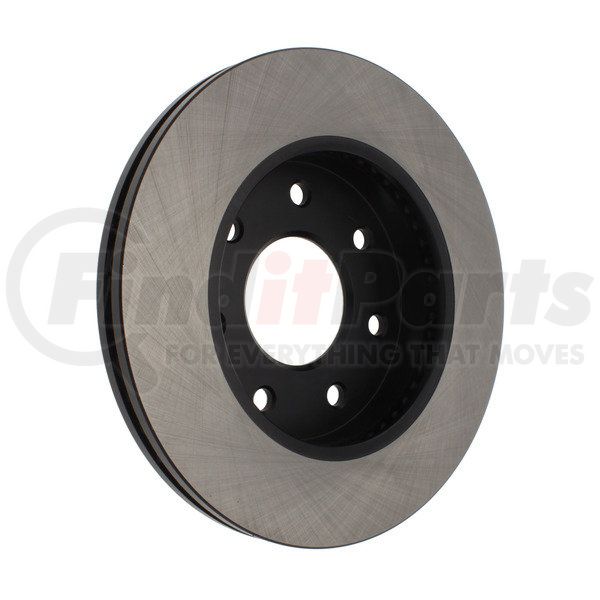

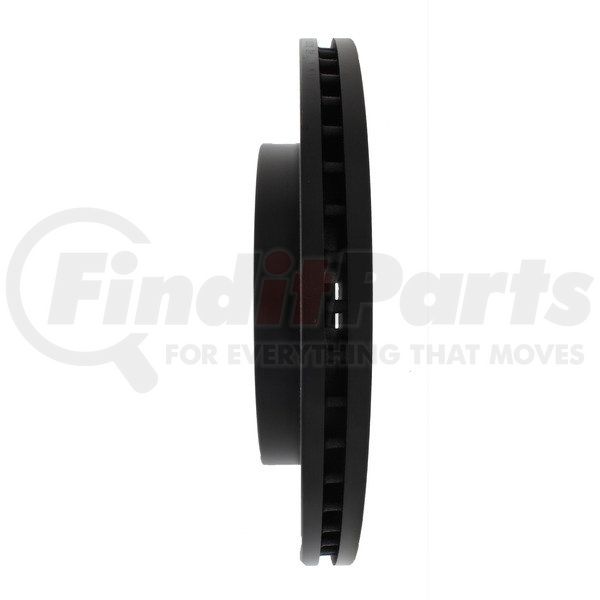

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.65101 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.820 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 26.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Painted |
| Overall Height | 54.000 MM |
| Overall Height | 2.126 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.543 IN |
| Center Hole Diameter | 90.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150.000 MM |
| Stud/Lug Hole Quantity | 7 |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Diameter | 0.602 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890420217 |
CENTRIC 120.65101 Cross References
| Brand | Part Number |
|---|---|
| 680181, BD126112 | |
| N/A | 120.65101, BD126112, BD126112E, E125-70-106, 54110GT, 0204262350, 02042J2339, 54110, YH145544, 27364, 54110G, 4L3Z1125BA, 4L3Z1125BC, 4U2Z1V125EA, 5L3Z1125BA, 145544, 880181, 2054110, AR8597, 60054187, E12570106 |
| NEOTEK | 1071027GF |
| Neotek Premium Drums and Rotors | 1071027GF |
| RAYBESTOS | 680181, 680181FZN, 680181PER, 680181R |
| Raybestos Brakes | 680181, 680181FZN, 680181PER, 680181R |
| WAGNER | BD126112, BD126112E |
CENTRIC 120.65101 Fits Vehicles
- Lincoln Mark LT (2006-2008)
- Ford F-150 (2004-2008)
