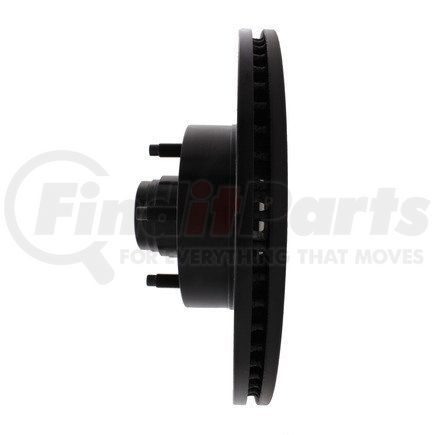

(888) 312-8812 Login SignupCENTRIC 120.65083 Centric Premium Brake Rotor
Tap to view 4 more
$147.49
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.65083 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65083 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.91005 |
| Inner Seal # [cntrc] | 417.61003 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 24.750 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 410.91003 |
| Weight [cntrc] Kgs | 11.250 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.200 MM |
| Nominal Thickness | 1.031 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 108.000 MM |
| Overall Height | 4.252 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 305.000 MM |
| Rotor Outside Diameter | 12.008 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.400 MM |
| Center Hole Diameter | 2.772 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890016526 |
CENTRIC 120.65083 Cross References
| Brand | Part Number |
|---|---|
| 680021, BD125726 | |
| N/A | 120.65083, BD125726, BD125726E, E125-70-088, 6492365, KH134693, 1L541102CB, 134693, YH145340, 54096, 27236, 54096G, 1L5Z1102CA, 5L2Z1102BA, 145340, 880021, 19691, AR8585, 60054172, E12570088 |
| NEOTEK | 107159GF |
| Neotek Premium Drums and Rotors | 107159GF |
| RAYBESTOS | 680021, 680021R |
| Raybestos Brakes | 680021, 680021R |
| WAGNER | BD125726E, BD125726 |
CENTRIC 120.65083 Fits Vehicles
- Ford Explorer Sport (2001-2003)
- Ford Explorer Sport Trac (2001-2005)
