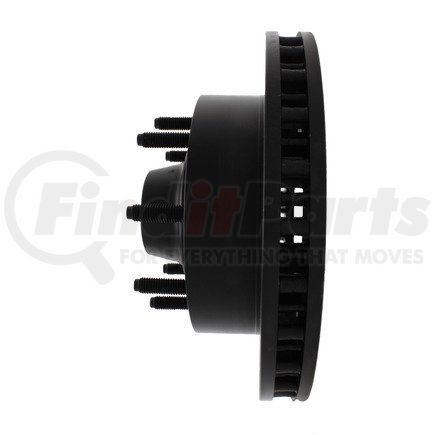

(888) 312-8812 Login SignupCENTRIC 120.65073 Centric Premium Brake Rotor
Tap to view 4 more
$16399
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 30
CENTRIC 120.65073 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65073 Specifications
Product Attributes
| Weight [cntrc] Lbs | 43.000 |
| Vane Style [cntrc] | Pillar |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 415.68004 |
| Weight [cntrc] Kgs | 19.550 |
| Inner Seal # [cntrc] | 417.65003 |
| Outer Race # [cntrc] | 416.68001 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 415.68002 |
| Product Grade [cntrc] | Premium |
| Inner Race # [cntrc] | 416.68003 |
| Discard Thickness | 36.000 MM |
| Discard Thickness | 1.417 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 143.600 MM |
| Overall Height | 5.654 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 331.000 MM |
| Rotor Outside Diameter | 13.031 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 2.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 124.000 MM |
| Center Hole Diameter | 4.882 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890036050 |
CENTRIC 120.65073 Cross References
| Brand | Part Number |
|---|---|
| 66785, BD125645 | |
| N/A | BD125645, E125-70-078, 54071, 54071G, F81A1102BA, F81Z1102BA, 1C3Z1V102AA, BRR263, 145255, 102003, 86785, 86786, 4886785, AR8573, E12335, E12570078, 211223, 211223C, 54071DSR, YH145255, 54071DSL, 1407-25779, 27266, 8942073, 60054163 |
| NEOTEK | 107182GF |
| Neotek Premium Drums and Rotors | 107182GF |
| RAYBESTOS | 66785, 66785R |
| Raybestos Brakes | 66785, 66785R |
| WAGNER | BD125645E, BD125645 |
CENTRIC 120.65073 Fits Vehicles
- Ford F-350 Super Duty (1999-2002)
- Ford F-250 Super Duty (1999-2002)
- Ford Excursion (2000-2002)
