(888) 312-8812 Login SignupCENTRIC 120.65004 Premium Brake Rotor
Tap to view 1 more
$43.91
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.65004 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

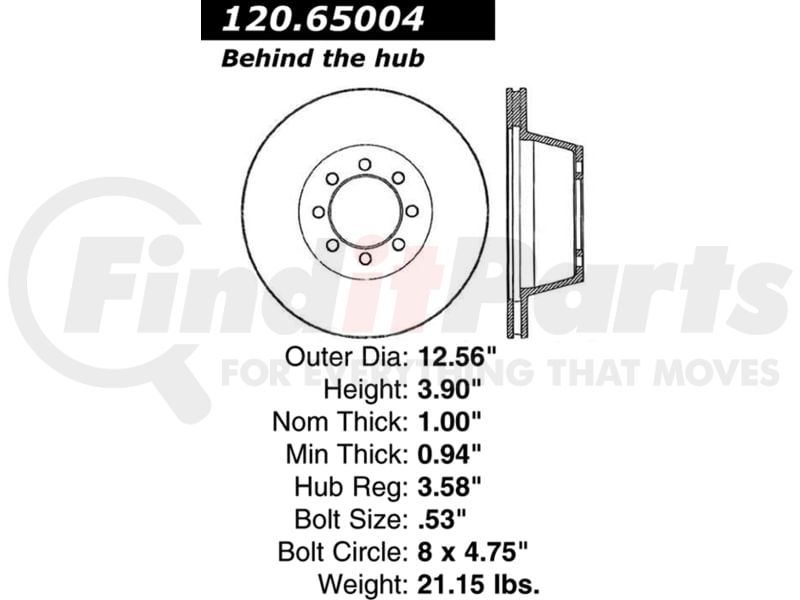

CENTRIC 120.65004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 9.610 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Behind the Hub |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 21.150 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Mounting Bolt Hole Diameter | 0.528 IN |
| Mounting Bolt Hole Diameter | 13.400 MM |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Center Hole Diameter | 3.579 IN |
| Center Hole Diameter | 90.900 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Mounting Bolt Hole Quantity | 8 |
| Outside Diameter | 12.559 IN |
| Outside Diameter | 319.000 MM |
| Overall Height | 3.898 IN |
| Overall Height | 99.000 MM |
| Hat Finish | Painted |
| Nominal Thickness | 25.400 MM |
| Nominal Thickness | 1.000 IN |
| Discard Thickness | 23.880 MM |
| Discard Thickness | 0.940 IN |
CENTRIC 120.65004 Cross References
CENTRIC 120.65004 Fits Vehicles
- Ford F-350 (1968-1975)
- Ford E-350 Econoline (1975-1976)
CENTRIC 120.65004 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 120.65004 Questions & Answers
No questions yet
Be the first to ask a question about this product!
