(888) 312-8812 Login SignupCENTRIC 120.48009 Centric Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.48009 Part Description
Manufacturer
Product Description

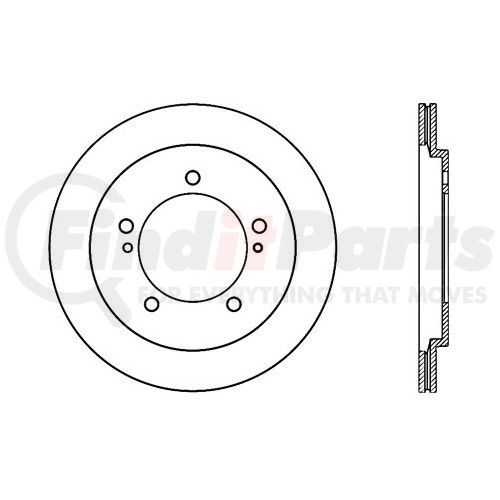

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.48009 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 4.550 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 10.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 15.000 MM |
| Discard Thickness | 0.591 IN |
| Nominal Thickness | 17.000 MM |
| Nominal Thickness | 0.669 IN |
| Hat Finish | Coated |
| Overall Height | 29.000 MM |
| Overall Height | 1.142 IN |
| Outside Diameter | 286.500 MM |
| Outside Diameter | 11.280 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 108.200 MM |
| Center Hole Diameter | 4.260 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.700 MM |
| Stud/Lug Hole Diameter | 0.500 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890075080 |
CENTRIC 120.48009 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 56927, 56927FZN, 56927R |
| Neotek Premium Drums and Rotors | 107273GF |
| N/A | 0832863, BD125690, BD125722, BD125722E, E125-53-014, 55068, 6493010, 55060, 55060G, 55068G, 5521167D01, 30022977, 30024673, 5521165D01, 101879, 145281, 145297, 86846, 86927, 4886846, 4886927, DF6023, JBR955, JBR969, E12553014, 120.48009, YH145297, X51353, 25639, 25649, 56846, DDF1687, DDF1282, 19729, 60047060 |
CENTRIC 120.48009 Fits Vehicles
- Chevrolet Tracker (1999-2004)
- Suzuki Vitara (1999-2004)
CENTRIC 120.48009 Cross References
We have 8 alternatives for the 120.48009 by CENTRIC:
