(888) 312-8812 Login SignupRAYBESTOS 56927FZN Raybestos Element3 Coated Brake Rotor
$31.29
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56927FZN Part Description
Manufacturer
Product Description

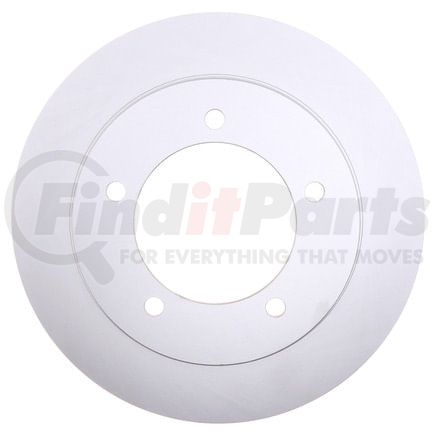

Raybestos Element3 Coated Brake Rotor
Application Summary
2004-1999 Chevrolet Tracker Front, 2004-1999 Suzuki Vitara Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 56927FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.27 IN |
| Center Hole Diameter | 108.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.591 IN |
| Discard Thickness | 15 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.67 IN |
| Nominal Thickness | 17 MM |
| Outside Diameter | 11.29 IN |
| Outside Diameter | 286.75 MM |
| Overall Height | 1.145 IN |
| Overall Height | 29.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213090543 |
RAYBESTOS 56927FZN Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-886 |
| ADVANCE AUTO PARTS | 145297, 15670202, YH145297, YH145297C, YH145297P |
| AMERICAN REMANUFACTURED | 89-10027 |
| AUTOSPECIALTY | JBR955, JBR955E |
| AUTOXTRA | 8056927, AX55060 |
| AUTOZONE | 55060, 55060DG, DL55060 |
| BECK/ARNLEY | 083-2863 |
| BENDIX | 145297 |
| BOSCH | 25010725 |
| BRAKEBEST | 25010725, 56927, 56927FZN, 56927R, 56927RGS, 81-125722, BD125722 |
| BREMBO | 09.9142.10, 25649 |
| Brembo | 09.9142.11 |
| CENTRIC | 120.48009, 121.48009, 320.48009 |
| Casting Numbers | 211260-C, 325561 |
| Centric Parts | 120.48009, 121.48009, 320.48009 |
| DURA CORP | BR55060 |
| DuraGo | BR55060, BR55068 |
| GM | 30024673 |
| GREN | 81902 |
| GUARDIAN | 52-125722 |
| General Motors | 30024673 |
| MIGHTY DISTRIBUTING SYSTEM | 55060 |
| MONROE BRAKES | BD125722 |
| NAPA BRAKES | SDK6420 |
| NEWTEK AUTOMOTIVE | 55060 |
| Newtek Automotive USA | 55060 |
| PEP BOYS | 55060G |
| PROMAX | 14-55060 |
| QUALIS | 55060 |
| QUALITEE INTERNATIONAL | 64-93-365 |
| QUALITY BRAND | 55060, Q612 |
| Qualis | 55068 |
| STANDARD ROTORS AND DRUMS | 55060 |
| SUZUKI | 5521165D01, 5521167D01 |
| THE UNIVERSAL GROUP | 101879 |
| TRUSTAR | 493365, R93365 |
| TopNotch | TN56927GEO |
| UAP | 55060 |
| Ultra Brake | SZ-812 |
| Universal | 101879 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51353 |
| WABCO | PS125722 |
| WABCO - Archived | PS125722 |
| WAGNER BRAKE | BD125722 |
| WINHERE | 442670, YH2670 |
| WORLDPAC | 1427-732168 |
| Wagner Brake | BD125722E |
RAYBESTOS 56927FZN Fits Vehicles
- Chevrolet Tracker (1999-2004)
- Suzuki Vitara (1999-2004)
