CENTRIC 120.47017 Part Description
Manufacturer
Product Description

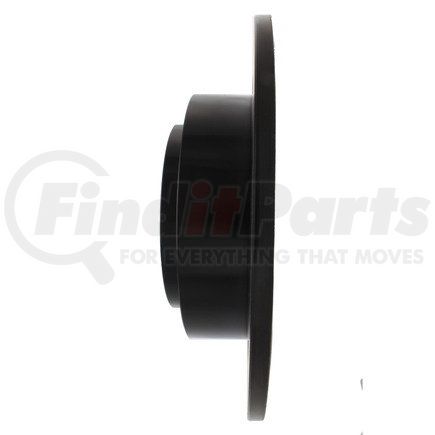

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.47017 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 171.000 |
| Weight [cntrc] Kgs | 5.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 2 |
| Max Pb Drum Dia [cntrc] In | 6.732 |
| Weight [cntrc] Lbs | 11.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 8.500 MM |
| Discard Thickness | 0.335 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Painted |
| Overall Height | 2.591 IN |
| Overall Height | 65.800 MM |
| Outside Diameter | 289.700 MM |
| Outside Diameter | 11.406 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.000 MM |
| Nominal Drum Diameter | 6.693 IN |
| Bearings Included | No |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.508 IN |
| Stud/Lug Hole Diameter | 12.900 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890166344 |
CENTRIC 120.47017 Cross References
| Brand | Part Number |
|---|---|
| 96937, BD125755, BD126175 | |
| N/A | BD125755, BD126175, BD126175E, 0832867, E125-52-022, BR3127302, 6477230, 31273, 31273G, 26700AE04A, 26700AE04B, 26700AE04C, 145298, 4886937, 86937, JBR945, E12552022, 120.47017, YH145298, 25651, X51344, 2031273, 18A1115A, 90013032 |
| NEOTEK | 106417GF |
| Neotek Premium Drums and Rotors | 106417GF |
| PRONTO | BR3127302 |
| RAYBESTOS | 96937, 96937FZN, 96937R, 96937R2 |
| Raybestos Brakes | 96937, 96937FZN, 96937R |
| WAGNER | BD126175E, BD126175 |
CENTRIC 120.47017 Fits Vehicles
- Subaru Outback (2000-2004)
- Subaru Legacy (2000-2004)
- Subaru Baja (2003-2006)
