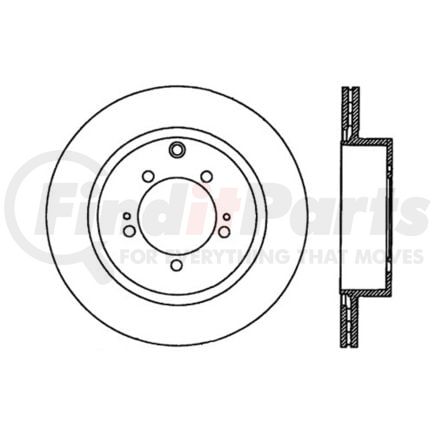

(888) 312-8812 Login SignupCENTRIC 120.46075 Premium Brake Rotor
Tap to view 1 more
$147.11
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.46075 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.46075 Specifications
Product Attributes
| Weight [cntrc] Kgs | 8.800 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Hat Id [cntrc] Mm | 190.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 19.350 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Hat Id [cntrc] In | 7.480 |
| Misc Holes [cntrc] | 3 |
| Vane Style [cntrc] | Pillar |
| Stud/Lug Hole Diameter | 0.488 IN |
| Stud/Lug Hole Diameter | 12.400 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 3.150 IN |
| Center Hole Diameter | 80.000 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 7.476 IN |
| Nominal Drum Diameter | 189.900 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| Overall Height | 59.100 MM |
| Overall Height | 2.327 IN |
| Hat Finish | Painted |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
CENTRIC 120.46075 Cross References
CENTRIC 120.46075 Fits Vehicles
- Mitsubishi Lancer (2008-2015)
