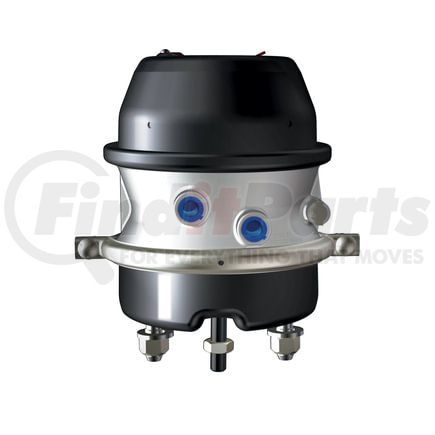

3430535ESH by MGM BRAKES - Air Brake Chamber - Combination

MGM Brakes 3430535ESH - Air Brake Chamber - Combination

Part Number
3430535ESH
Manufacturer
MGM BRAKES
Description

Air Brake Chamber - Combination

details

$345.49

15 day lead time

We verify inventory within 1 business day before charging your payment method.
Order online or call us at (888) 312-8812 to confirm. We'll find it for you!
New! No hassle Return Policy details
Free Economy shipping on orders over $499 details
This item will ship about 15 days after the date of purchase
Pay over 3-12 months with Affirm Logo. Learn more

MGM BRAKES part description

General Description

Line Haul

Features and Benefits

  • Tamper Resistant Design
  • Molded Nitrile Rubber Push-Rod Air Seal
  • Center Hole Shield
  • Externally Stored Release Bolt
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • 360 Aluminum Center Case
  • "Long Life" Power Spring
  • Epoxy Coated Return Spring
  • Weatherseal Plug
  • Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
  • Stroke Alert
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only

Technical Specifications

Stroke 2.50" (63.5 mm)
Weight lb (kg) Combination 19.4 lb (8.8 kg)
Weight lb (kg) Single 11.3 lb (5.1 kg)
A 9.04" (229.6 mm)
B 6.66" (169.2 mm)
C 8.31" (211.1 mm)
D 8.21" (208.5 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC (M16 x 1.5 - 6g)
G 5/8" - 18 UNF (M16 x 1.5 - 6g)
Inlets 3/8" - 18 NPTF (M16 x 1.5 - 6H)
X - Min. (aftermarket unit only) 8.00" (203.2 mm)

Product Description

Double Diaphragm Brake Chamber

Features & Benefits

  • Tamper Resistant
  • Externally Stored Release Bolt
  • Epoxy-Coated Head
  • 360 Aluminum Center Case
  • Long Life Power Spring
  • Weatherseal Plug
  • Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
  • Breather Tube
  • Composite Guide

Product Attributes

Chamber Type Double Diaphragm Brake
Diaphragm Diameter Rubber IN
Mounting Bolt Length 1.540 IN
Mounting Bolt Thread 5/8-11
Port Size 3/8-18 NPTF
Spring Size 30
Service Size 30
Stroke 2.50 IN
UNIT Production

Additional Information

Country of Origin (Primary) US
21
VMRS Code 013004000
California Proposition 65 Warning California residents see Prop 65 Warning(s)
