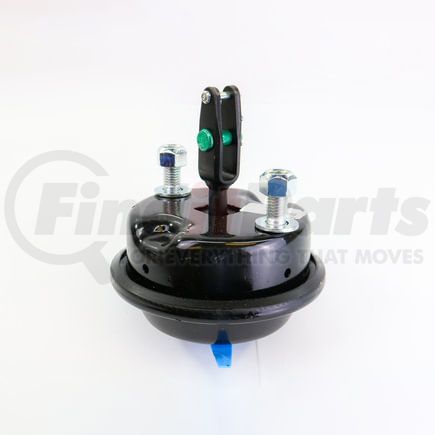

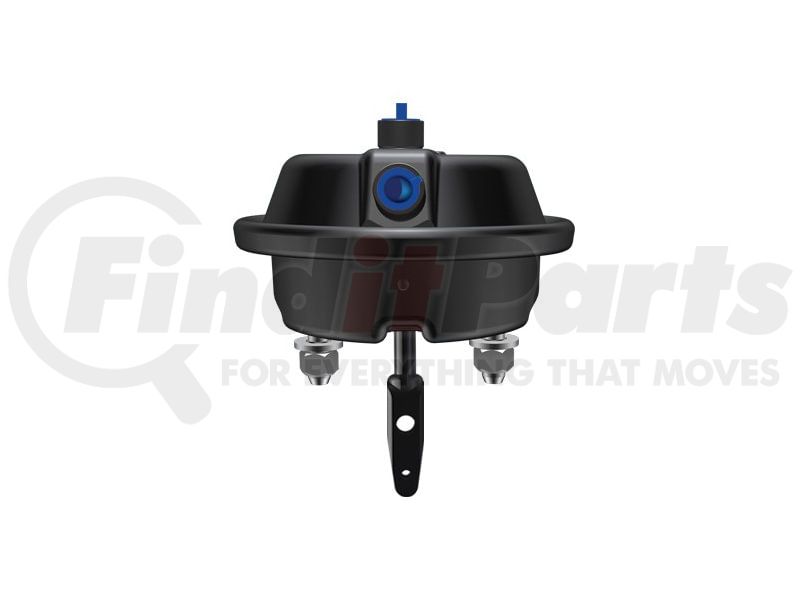

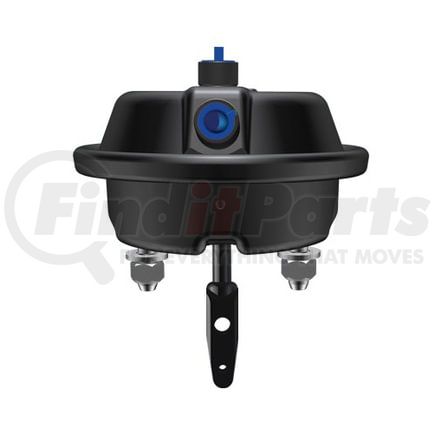

MGM BRAKES part description

Specifications


Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.530
Port Size: 3/8-18 NPTF
Sealed
Welded Yoke
Stroke (in.): 2.50

Service Size: 20
Spring Size: N/A

Features & Benefits

  • Formed Steel Pressure Cap -Epoxy-Coated (CS20 Models have Zinc Iron Chromate Coating)
  • Formed Steel Non-Pressure Chamber -Epoxy-Coated
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Top and Side Air Ports -3/8" NPTF
  • Center Hole Shield
Model: CS20L

Technical Data

Stroke 2.50" (63.5 mm)
Weight lb (kg) 6.80 lb (3.1 kg)
A 4.37" (111.0 mm)
B 3.63" (92.0 mm)
C 7.00" (177.8 mm)
D 4.75" (120.7 mm)
E 5/8" - 11 UNC
Inlets 3/8" - 18 NPTF
Y 2.25"

Replacement Parts

1 Kit -NP Chamber (a) N/A
2 Kit -Nuts & Bolts N/A
3 Clamp Band Assembly N/A
4 Diaphragm N/A
5 Kit -Push-Rod Assembly (a) SAE N/A
5a Kit -Push-Rod Assembly (a) METRIC N/A
6 Return Spring N/A
7 Kit -Center Hole Shield N/A
8 NP Chamber Assembly (a) N/A
9 Kit -Nuts & Washers SAE 9002001
9a Kit -Nuts & Washers METRIC N/A
10 Hex Nut -Yoke SAE N/A
10a Hex Nut -Yoke METRIC N/A
11 Pressure Cap (2-inlet/steel) N/A
