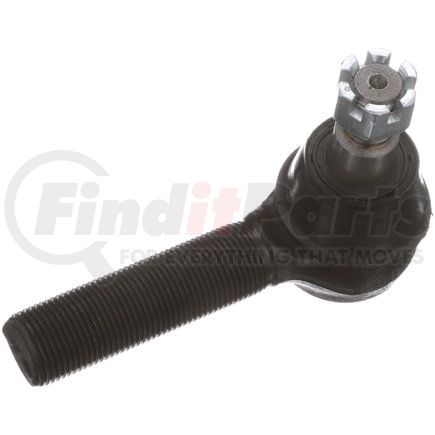

Delphi TA5704 - Tie Rod End
$12549
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 138.00 MM |
| Color | Black |
| Shank Length | 26.10 MM |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Stud Length | 26.10 MM |
| Finish | Painted |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 57 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 28.70 MM |
| Height | 57.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Boot Color | Black |
| Weight | 3.28 lb |
| Cone Outside Diameter | 26.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length - Stud Center to End | 81.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 16 |
| End 1 Thread Diameter | 9.50 MM |
| Shank Length | 1.028 IN |
| Stud Length | 1.028 IN |
| End 2 Thread Diameter | 1.130 IN |
| Cone Outside Diameter | 1.028 IN |
| Length - Stud Center to End | 3.189 IN |
| End 1 Thread Diameter | 0.374 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604335284 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Chevrolet W6500 Tiltmaster (1996)
- Isuzu FVR (1996-2002)
- Isuzu FTR (1996-2002)
- Isuzu FSR (1996-2002)
- GMC P6500 (1994-1996)
- Chevrolet P6000 (1994-1996)
- GMC T7500 (1997-2002)
- GMC T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- GMC B7 (1993-1999)
- GMC C7500 Topkick (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet B7 (1993-1999)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C7000 Topkick (1994-1996)
- Chevrolet C70 Kodiak (1994-1996)
- Chevrolet C60 Kodiak (1994-1996)
- GMC C6000 Topkick (1994-1996)
