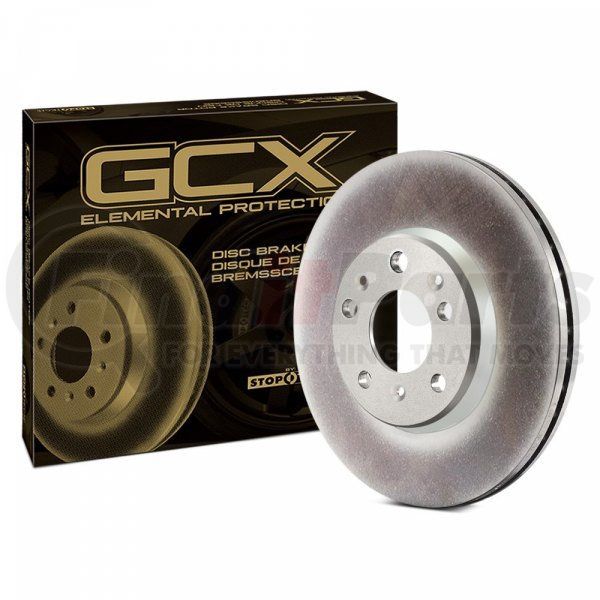

Centric 320.62138H - Centric GCX Rotor with Full Coating and High Carbon Content
$14699
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] In | 6.276 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 159.400 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 23.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 10.660 |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27.000 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 61.200 MM |
| Overall Height | 2.409 IN |
| Outside Diameter | 12.638 IN |
| Outside Diameter | 321.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.700 MM |
| Center Hole Diameter | 2.783 IN |
| Mounting Bolt Hole Circle Diameter | 115.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.200 MM |
| Stud/Lug Hole Diameter | 0.559 IN |
Fits Vehicles
- Cadillac ATS (2013-2019)
