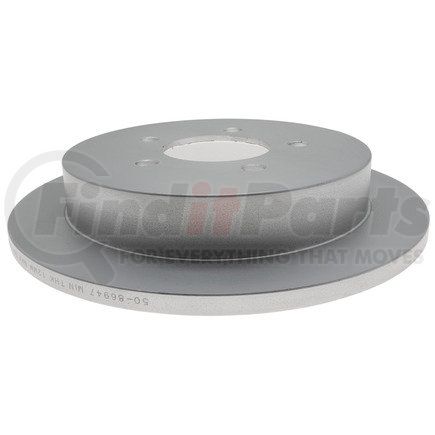

CENTRIC 320.65085F Centric GCX Rotor with Full Coating

★★★★★ (0)

$44.99

Limited availability at this price!

In Stock

Get as soon as Wednesday, Dec 2
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

CENTRIC 320.65085F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.65085F Specifications

Product Attributes

Weight [cntrc] Lbs19.000
Weight [cntrc] Kgs8.640
Max Pb Drum Dia [cntrc] Mm230.000
Max Pb Drum Dia [cntrc] In9.055
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc]Floating / DIH
Misc Holes [cntrc]0
Product Grade [cntrc]Premium
Discard Thickness12.000 MM
Discard Thickness0.472 IN
Nominal Thickness14.200 MM
Nominal Thickness0.559 IN
Disc FinishFully Coated
Hat FinishCoated
Overall Height56.300 MM
Stud/Lug Hole Diameter0.630 IN
Stud/Lug Hole Diameter16.000 MM
Stud/Lug Hole Quantity5
Mounting Bolt Hole Circle Diameter5.315 IN
Mounting Bolt Hole Circle Diameter135.000 MM
Center Hole Diameter3.445 IN
Center Hole Diameter87.500 MM
Bearings IncludedNo
Nominal Drum Diameter8.992 IN
Nominal Drum Diameter228.400 MM
Solid Or Vented Type RotorSolid
Surface TypeSmooth
ABS Tone Ring IncludedNo
Outside Diameter13.150 IN
Outside Diameter334.000 MM
Overall Height2.217 IN

Additional Information

NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590392821

CENTRIC 320.65085F Cross References

BrandPart Number
MAGMA PRODUCTSPSR205184
RAYBESTOS66947FZN, 66947R, 66947, 66947R2

CENTRIC 320.65085F Fits Vehicles

  • Ford Expedition (1999-2002)
  • Ford F-150 (2000-2003)
  • Ford F-150 Heritage (2004)
  • Lincoln Blackwood (2002)
  • Lincoln Navigator (2000-2002)
