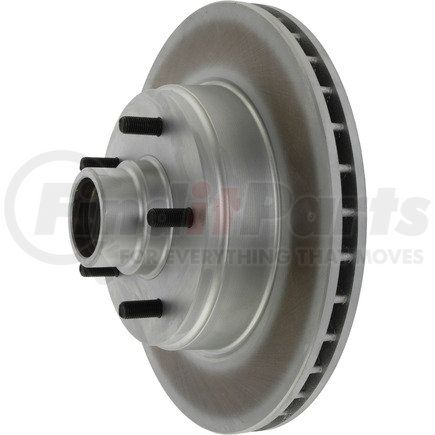

(888) 312-8812 Login SignupCENTRIC 320.62035F Centric GCX Rotor with Full Coating
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.62035F Part Description
CENTRIC 320.62035F Specifications
Product Attributes
| Outer Bearing # [cntrc] | 410.91003 |
| Weight [cntrc] Kgs | 12.050 |
| Product Grade [cntrc] | Premium |
| Inner Seal # [cntrc] | 417.62000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.91006 |
| Weight [cntrc] Lbs | 26.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.300 MM |
| Nominal Thickness | 1.035 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 12.000 MM |
| Overall Height | 117.300 MM |
| Overall Height | 4.618 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 301.200 MM |
| Rotor Outside Diameter | 11.858 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 77.700 MM |
| Center Hole Diameter | 3.059 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
CENTRIC 320.62035F Cross References
CENTRIC 320.62035F Fits Vehicles
- Oldsmobile Custom Cruiser (1991-1992)
- Chevrolet Impala (1994-1996)
- Chevrolet Caprice (1991-1996)
- Cadillac Commercial Chassis (1992-1996)
- Cadillac Brougham (1991-1992)
- Cadillac 60 Special (1993)
- Cadillac Fleetwood (1993-1996)
- Buick Commercial Chassis (1991-1996)
- Buick Roadmaster (1991-1996)
- Chevrolet Commercial Chassis (1991-1994)
