CENTRIC 120.44169 Part Description
Manufacturer
Product Description

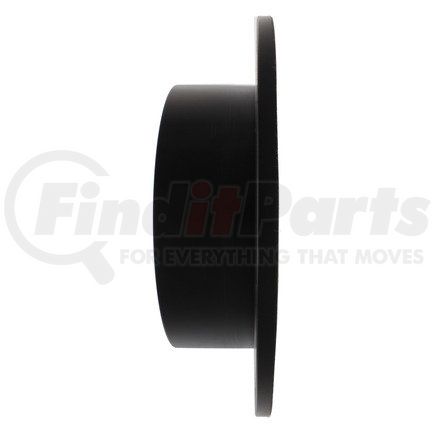

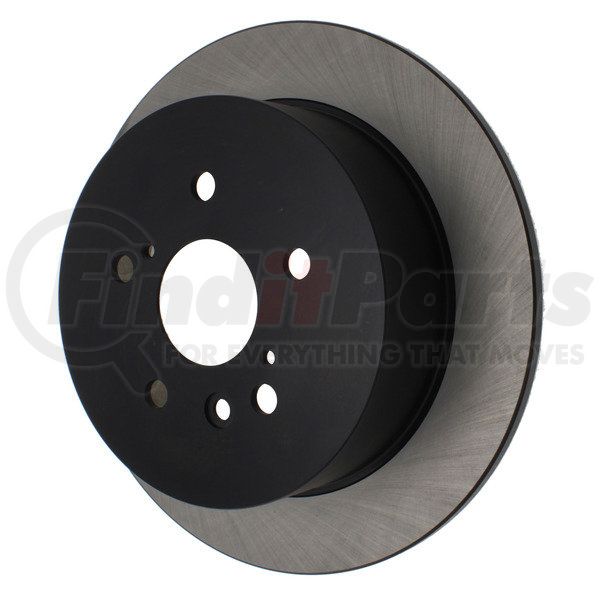

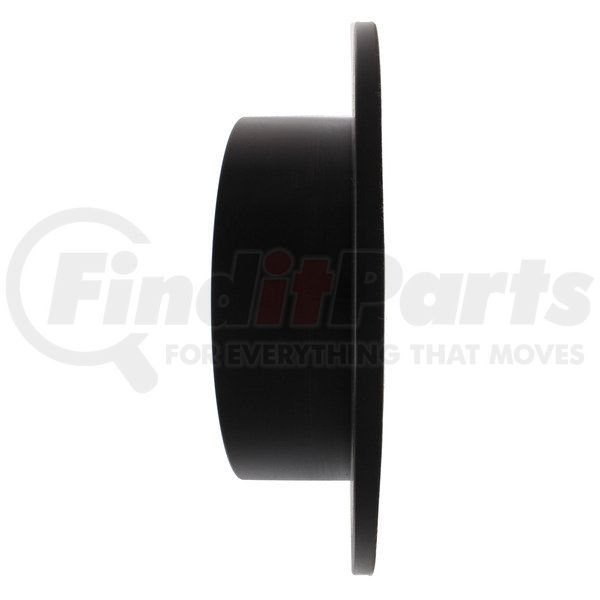

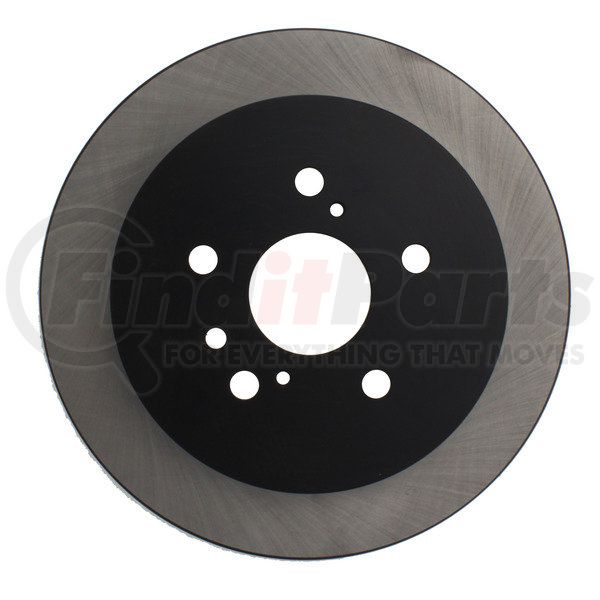

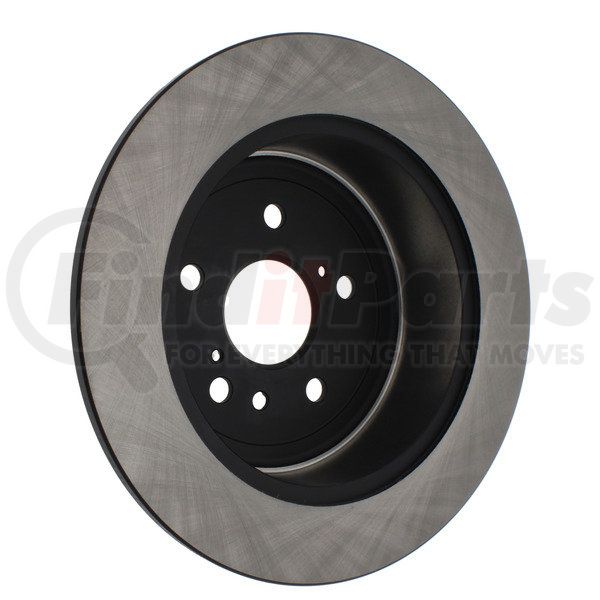

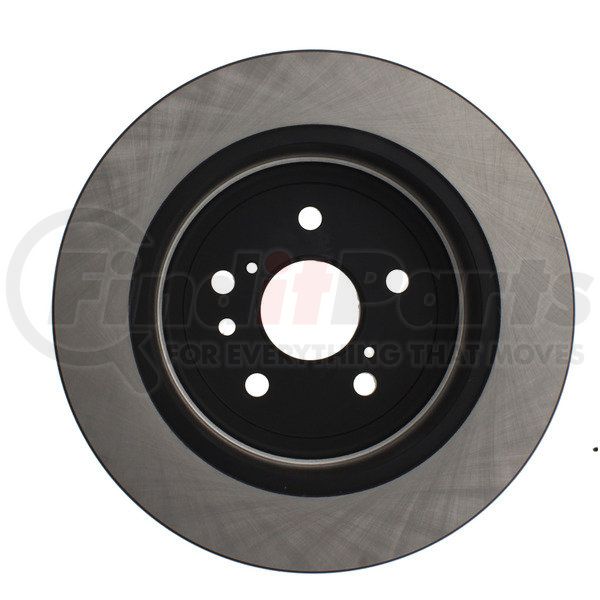

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.44169 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 3 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 5.930 |
| Weight [cntrc] Lbs | 13.050 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 9.000 MM |
| Discard Thickness | 0.354 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 69.800 MM |
| Overall Height | 2.748 IN |
| Outside Diameter | 298.000 MM |
| Outside Diameter | 11.732 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 189.000 MM |
| Nominal Drum Diameter | 7.441 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890535904 |
CENTRIC 120.44169 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | A6R044U |
| N/A | 120.44169, BD180363, BD180363E, 02042K2261, YH270084, 44645, 1407-270084, 44645G, 71916, 424310T010, 880727, 850156, 90076086 |
| NEOTEK | 1063056GF |
| Neotek Premium Drums and Rotors | 1063056GF |
| PRONTO | BR90076002 |
| RAYBESTOS | 980727, 980727FZN, 980727R, 980727R2 |
| Raybestos Brakes | 980727, 980727FZN, 980727R |
| WAGNER | BD180363, BD180363E |
CENTRIC 120.44169 Fits Vehicles
- Toyota Venza (2009-2016)
