CENTRIC 123.67025 Part Description
Manufacturer
Product Description

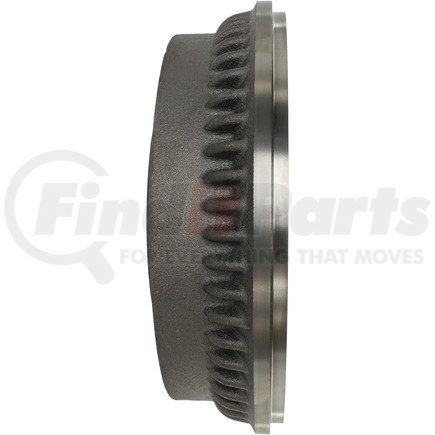

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67025 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.136 |
| Weight [cntrc] Lbs | 24.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 96.012 |
| Height [cntrc] In | 3.780 |
| Friction Surface Width [cntrc] Mm | 67.056 |
| Friction Surface Width [cntrc] In | 2.640 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 281.600 MM |
| Maximum Brake Diameter (Discard) | 11.080 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 342.900 MM |
| Outside Diameter | 13.500 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 17.020 MM |
| Mounting Hole Diameter | 0.670 IN |
| Nominal Drum Diameter | 280.000 MM |
| Nominal Drum Diameter | 11.020 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890053231 |
CENTRIC 123.67025 Cross References
| Brand | Part Number |
|---|---|
| 109563, 9563, 52-125394, 52125394, BD125394 | |
| MAGMA PRODUCTS | PMU14084 |
| N/A | FT05015, 52-125394, 52125394, BD125394, E127-72-030, E128-72-030, 80009, BD80009, BR80009, 63 91 700, D91700, 80009G, 52008315, 140660, PDR0660, 203721, 6401692, 440-1692, 1230, AD8725, AD8725E, D9465, E12772030, E12872030, 87563, YH140660, 23088, BD1621, 9563, 9563R, 109563, 9563DGS, 78840025, 8840025, 7840025, 78-40025, 68425, 36540043 |
| PRONTO | BD80009 |
| RAYBESTOS | 9563, 9563R |
| WAGNER | BD125394 |
CENTRIC 123.67025 Fits Vehicles
- Dodge Ramcharger (1999)
- Dodge Ram 1500 (1994-1999)
