DORMAN part description

Product Description

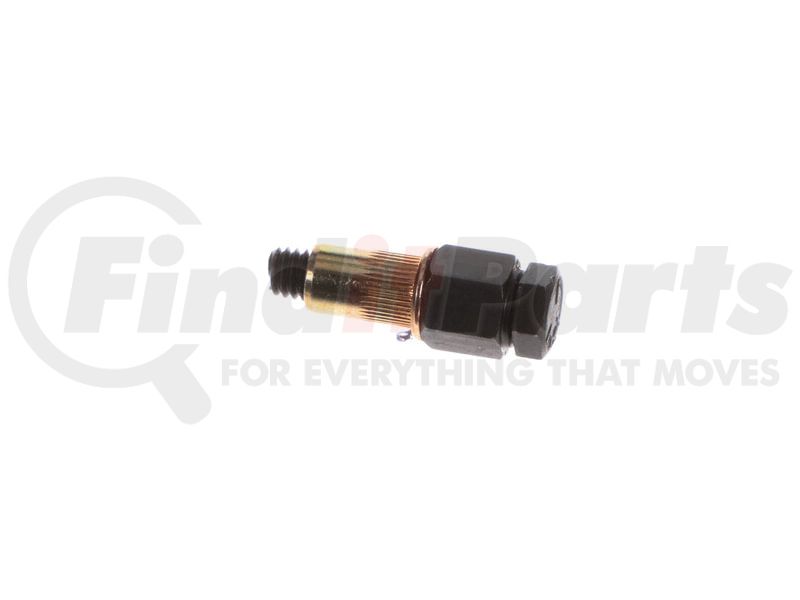

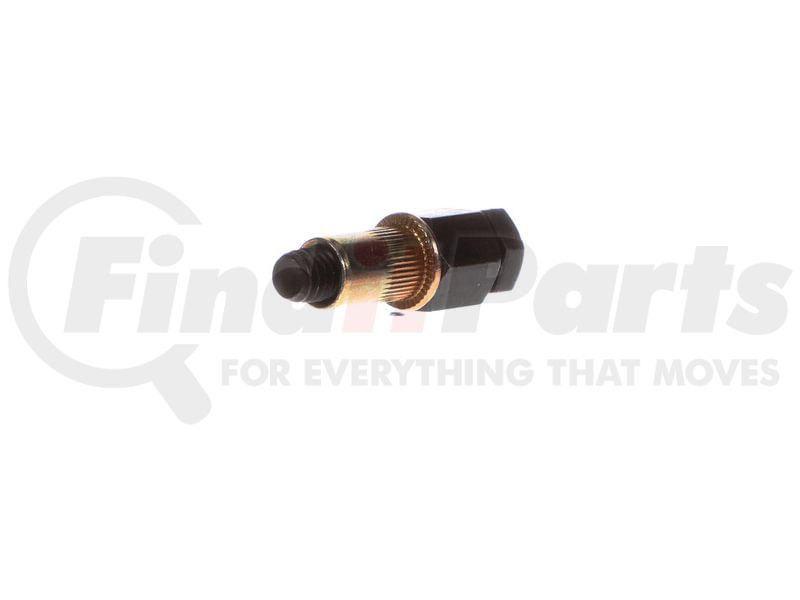

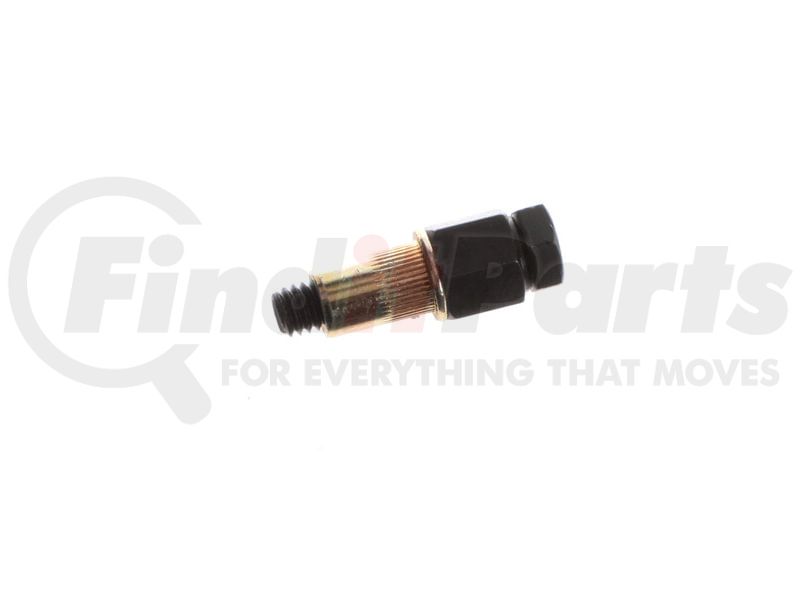

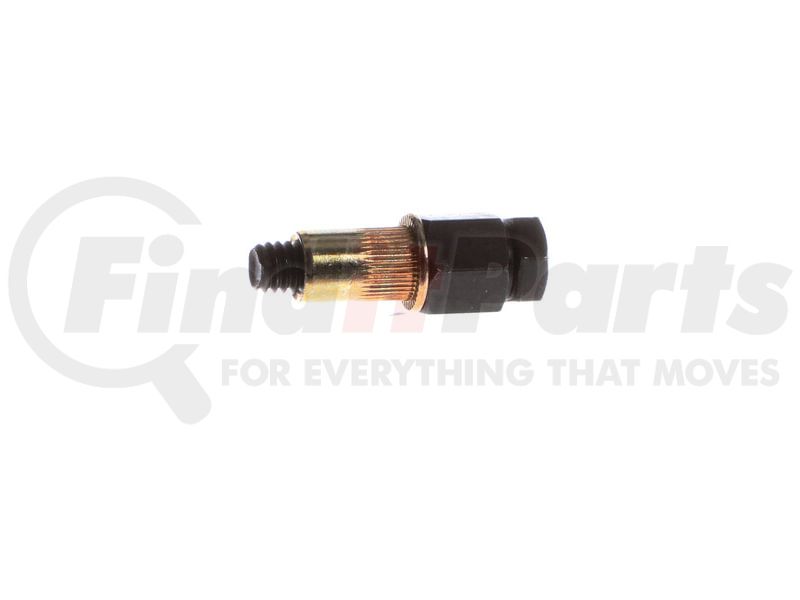

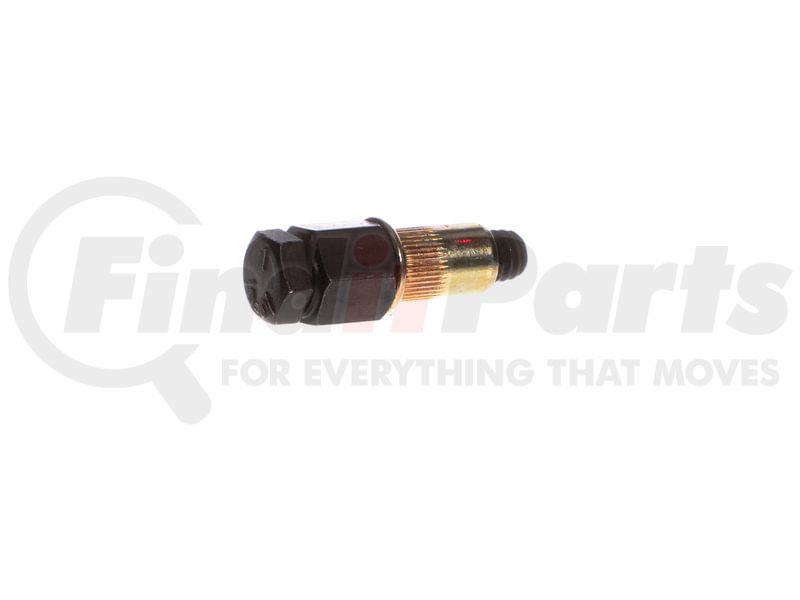

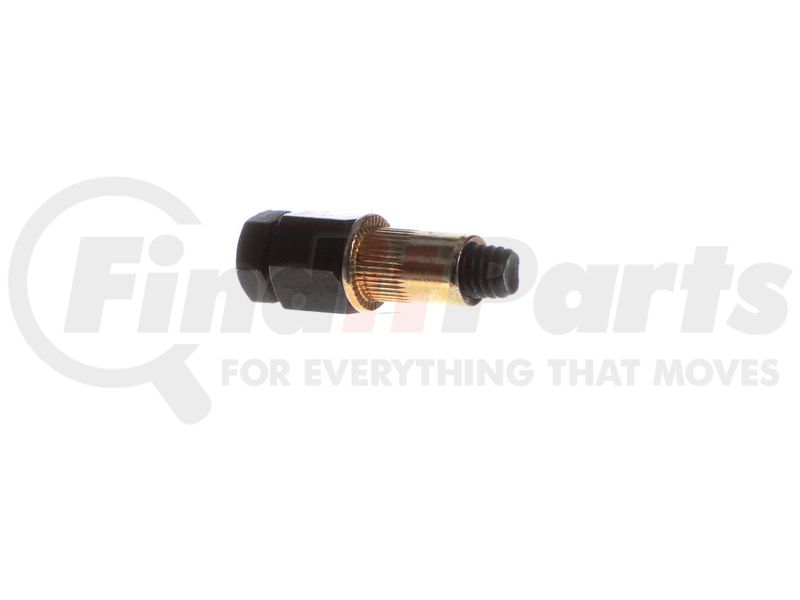

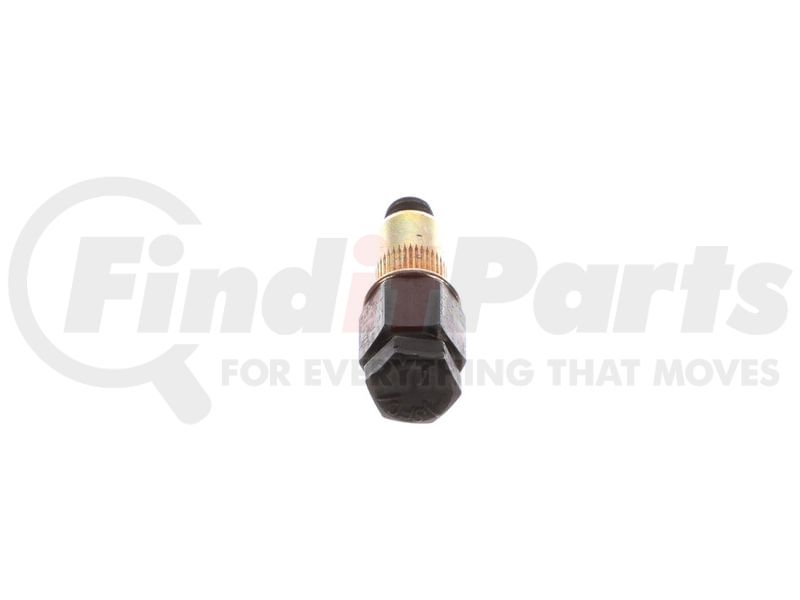

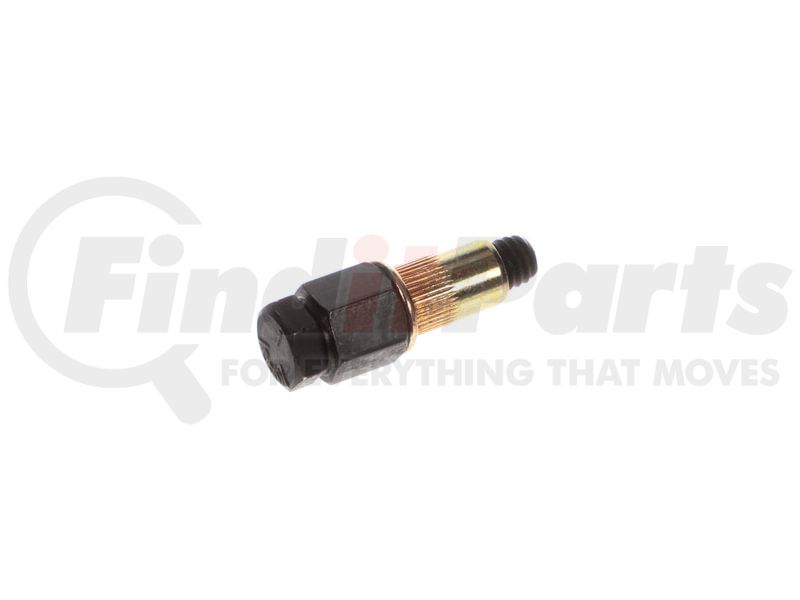

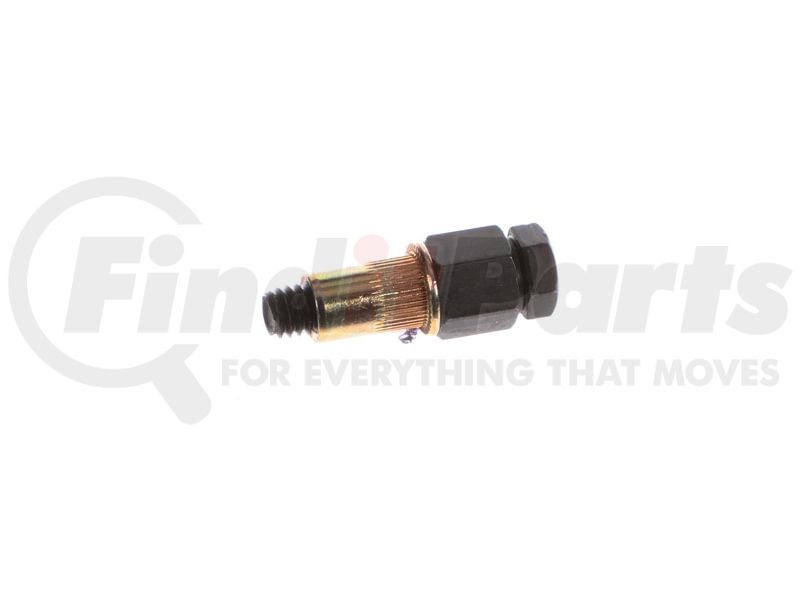

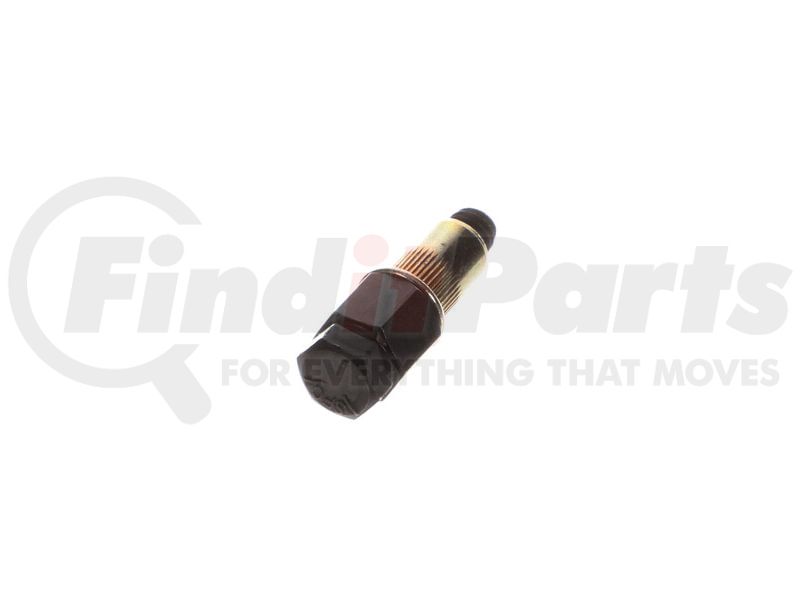

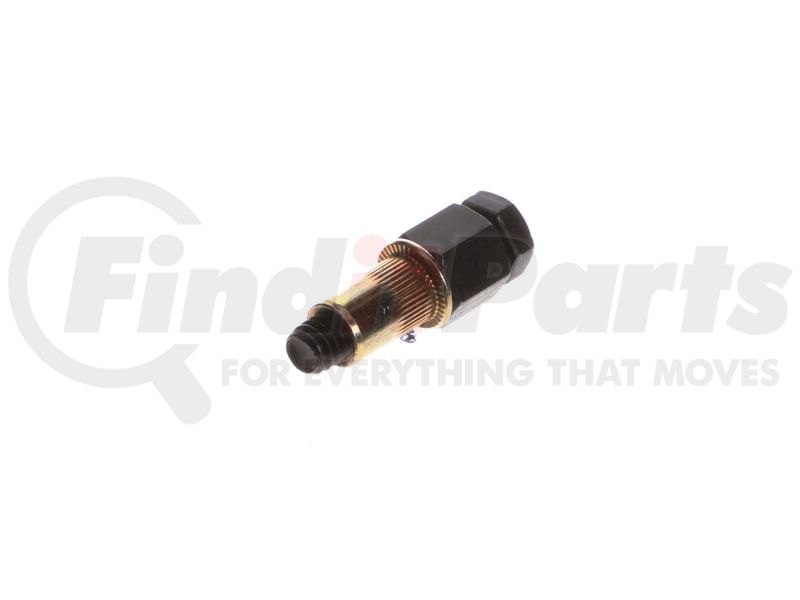

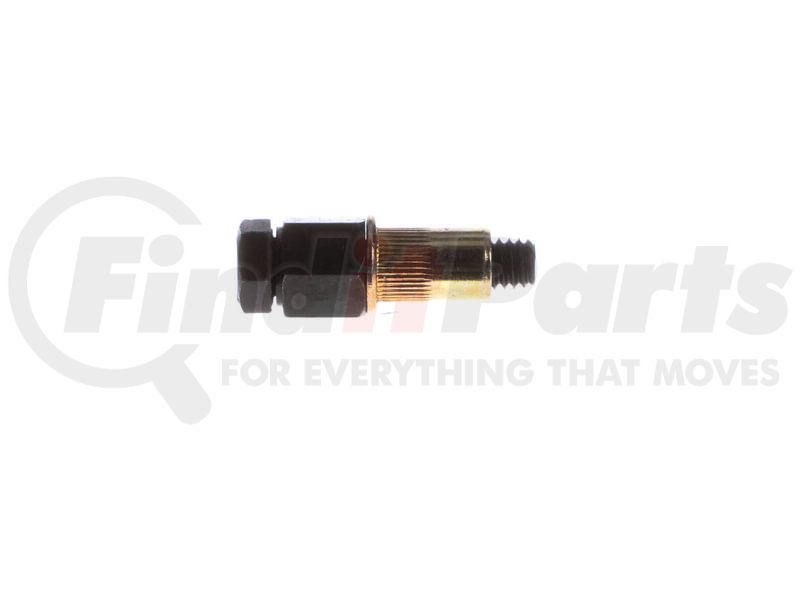

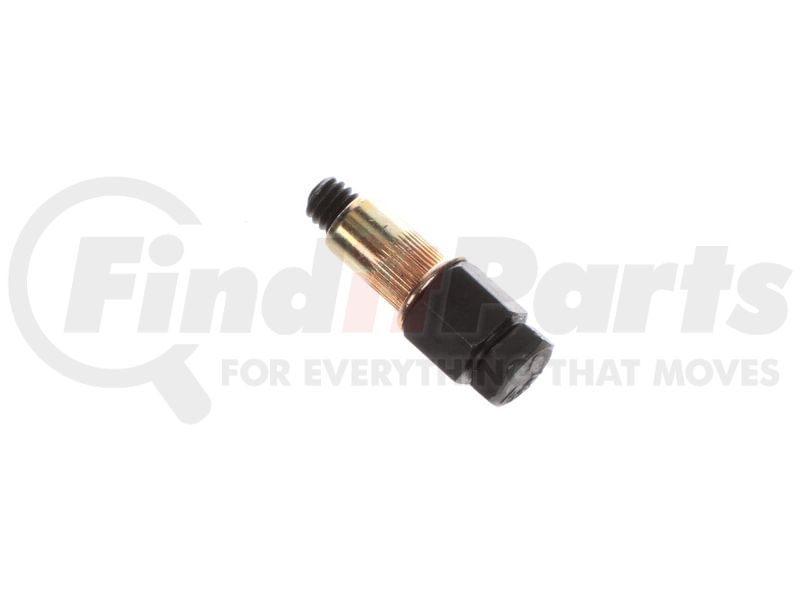

Rivet Nut Tool SAE - 5/16-18

Features & Benefits

  • Cost-effective solution - this rivet nut installation bolt will set and install a 5/16-18 rivet nut, which can be compressed by turning the bolt with a wrench, eliminating the need for specialized rivet installation tools
  • Diverse applications - simplest method to install rivet nuts, a hassle-free way to install a wide variety of aftermarket accessories to vehicle body panels and the chassis when a conventional nut-and-bolt connection is impossible
  • Durable construction - salt spray-tested for corrosion resistance, precision-threaded and manufactured from quality steel for long and reliable service
  • Quality assured - backed by a team of product experts in the United States and more than a century of automotive experience

Rivet, Nut, Tool, Tools, Nuts, Rivets

Product Attributes

Callout Size 5/16-18 in
Color Black; Yellow Zinc
Depth 1 in
Drill Size 7/16 in
Fqa Compliant No
Finish Black; Yellow Zinc
Grade Grade 5
Head Tool Size 1/2 in
Head Type Hex; Hex
Heat Hardened No
Material Steel
Overall Length 1.7 in
Package Contents 1 Rivet Nut Tool; 1 Rivet Nut
Partial Thread Yes
SAE or Metric SAE
Shank Length 0.45 in
Specialty Yes
Thread Diameter 5/16 in
Thread Direction Right Hand Thread
Thread Length 1.05 in
Thread Pitch 0
Thread Type Coarse
Threads Per Inch 18
Type Rivet Nut Tool
Zinc Coated No; Yes

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8204110060
UPC 00194883056909
VMRS Code 053006010
UNSPSC 53006010
