(888) 312-8812 Login SignupDELPHI TC3907 Control Arm and Ball Joint Assembly
Tap to view 2 more
$34349
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jun 12
DELPHI TC3907 Part Description
Manufacturer
Product Description

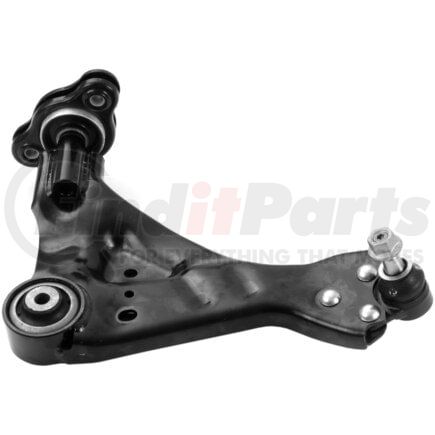

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3907 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.240 IN |
| Control Arm Maximum Width | 133.10 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 1.043 IN |
| Ball Joint Stud Length | 26.50 MM |
| Control Arm Maximum Length | 18.504 IN |
| Control Arm Maximum Length | 470.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604356340 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3907 Cross References
| Brand | Part Number |
|---|---|
| CORTECO | 49104993 |
| MEVOTECH | CMS101526 |
| MEYLE | 0146100046, 0160500110 |
| Mercedes-Benz | 447 330 15 07 |
| N/A | 602.66025, A 447 330 15 07 |
| VAICO | V30-3166 |
DELPHI TC3907 Fits Vehicles
- Mercedes-Benz Metris (2016-2020)
DELPHI TC3907 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC3907 Questions & Answers
No questions yet
Be the first to ask a question about this product!
