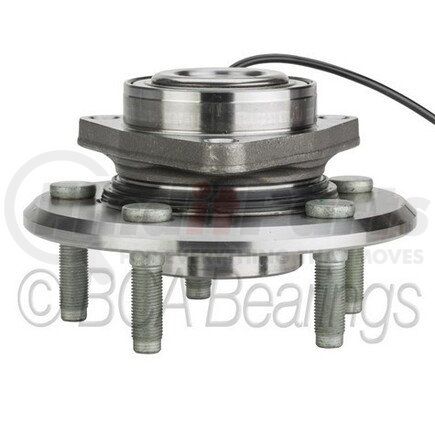

NTN WE61567 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$29199
Limited Availability
Pay over 3-12 months with
. Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
Spline Quantity | 33 |
Flange Bolt Hole Quantity | 3 |
Wheel Pilot Diameter | 3.059 IN |
Brake Pilot Diameter | 3.087 IN |
Wheel Stud Quantity | 5 |
Flange Shape | Modified Triangle |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Tone Ring |
Drive Type | Driven |
Flange Offset | 1.843 IN |
Bolt Circle Diameter | 5.500 IN |
Knuckle Bolt Circle Diameter (Inches) | 4.961 |
Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |
Knuckle Bolt Hole Size | M14X1.5 |
Wheel Stud Size | 9/16-18UNF IN |
Additional Information
Country of Origin (Primary) | KR |
Harmonized Tariff Code (Schedule B) | 8708995800 |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 662810615678 |
Part Interchanges
- Power Train PT515073
- Mevotech H515073
- GMB 7990287
- Raybestos Brakes 715073
- DuraGo 29515073
- GSP 126073
- Alltech Automotive 515073
- CRS Automotive NT515073
- Chrysler 52070323AB
- Chrysler 68030387AB
- Chrysler 68030387AA
- Chrysler 52070323AA
- SKF BR930285
- Timken SP500100
- Precision Bearing 515073
- MOOG Chassis Products 515073
- Centric Parts 402.67007E
- Centric Parts 402.67007
- Schaeffler 102012
- Schaeffler FW773
- DT Components 515073
- Autopart International 141144742
- MPA WH515073
- WJB WA515073
Fits Vehicles
- Dodge Ram 1500 (2002-2005)
