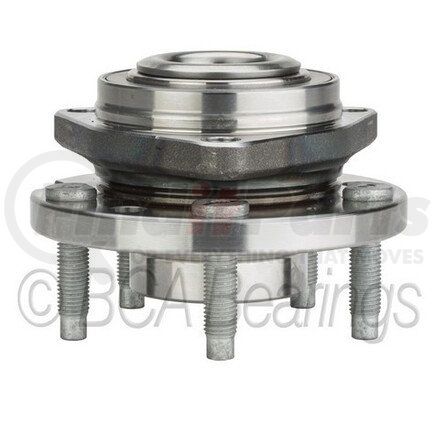

(888) 312-8812 Login SignupNTN WE61541 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$45249
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61541 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61541 Specifications
Product Attributes
| Spline Quantity | 30 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 65.0 MM |
| Brake Pilot Diameter | 70.0 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Triangle |
| Anti Lock Braking System | No |
| Drive Type | Driven |
| Flange Offset | 39.0 MM |
| Flange Diameter | 5.394 IN |
| Bolt Circle Diameter | 110.0 MM |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.488 |
| Knuckle Bolt Circle Diameter (Millimeters) | 114.0 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615418 |
NTN WE61541 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | FW281, 513260 |
| Alltech Automotive | 513260 |
| Autopart International | 1411246652 |
| CENTRIC | 400.62011 |
| CRS Automotive | NT513260 |
| Centric Parts | 400.62011, 400.62011E |
| DT Components | 513260 |
| Drive Tech America | NT513260 |
| Fenco | WH513260 |
| GMB | 7300411 |
| General Motors | 10345967 |
| MOOG Chassis Products | 513260 |
| MPA | WH513260 |
| Mevotech | H513260 |
| Parts Master | PM513260 |
| Power Train | PT513260 |
| Raybestos Brakes | 713260 |
| SKF | BR930643 |
| Schaeffler | FW9260, 559580A |
| Timken | HA590185 |
| WJB | WA513260 |
NTN WE61541 Fits Vehicles
- Pontiac Solstice (2006-2008)
