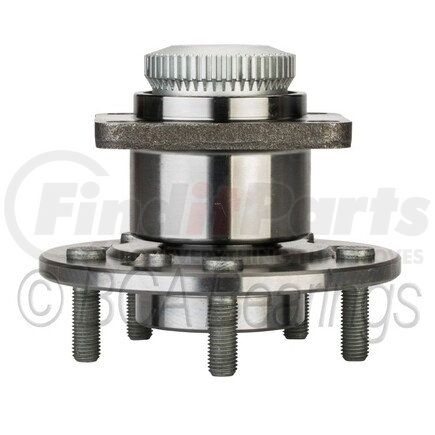

NTN WE61501 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61501 Specifications
Product Attributes
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 2.780 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Rectangular |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Drive Type | Non-driven |
| Flange Offset | 2.550 IN |
| Bolt Circle Diameter | 3.961 IN |
| Knuckle Bolt Circle Diameter (Inches) | 3.961 |
| Knuckle Bolt Circle Diameter (Millimeters) | 100.6 |
| Knuckle Bolt Hole Size | 15/32in |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | ES |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615012 |
NTN WE61501 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 513041 |
| Alltech Automotive | 513041 |
| Autopart International | 141104725 |
| CENTRIC | 406.62000 |
| CRS Automotive | NT513041 |
| Centric Parts | 406.62000 |
| DT Components | 513041 |
| Drive Tech America | NT513041 |
| DuraGo | 29513041 |
| Fenco | WH513041 |
| GMB | 7300330 |
| GSP | 104041 |
| General Motors | 12413025, 7466949, 7470580, 7466932, 7470579 |
| MOOG Chassis Products | 513041 |
| MPA | WH513041 |
| Mevotech | H513041 |
| Parts Master | PM513041 |
| Parts Plus | P513041 |
| Power Train | PT513041 |
| Raybestos Brakes | 713041 |
| SKF | BR930049 |
| Schaeffler | RW941, 102287 |
| Timken | 513041 |
| WJB | WA513041 |
NTN WE61501 Fits Vehicles
- Pontiac Bonneville (1988-1990)
- Oldsmobile Toronado (1988-1990)
- Oldsmobile Delta 88 (1988-1990)
- Oldsmobile 98 (1987-1990)
- Cadillac Seville (1989-1990)
- Cadillac Commercial Chassis (1987-1990)
- Cadillac Fleetwood (1987-1990)
- Cadillac Eldorado (1988-1990)
- Cadillac DeVille (1987-1990)
- Cadillac Allante (1988-1990)
- Buick Riviera (1988-1990)
- Buick Reatta (1988-1990)
- Buick LeSabre (1988-1990)
- Buick Electra (1988-1990)
