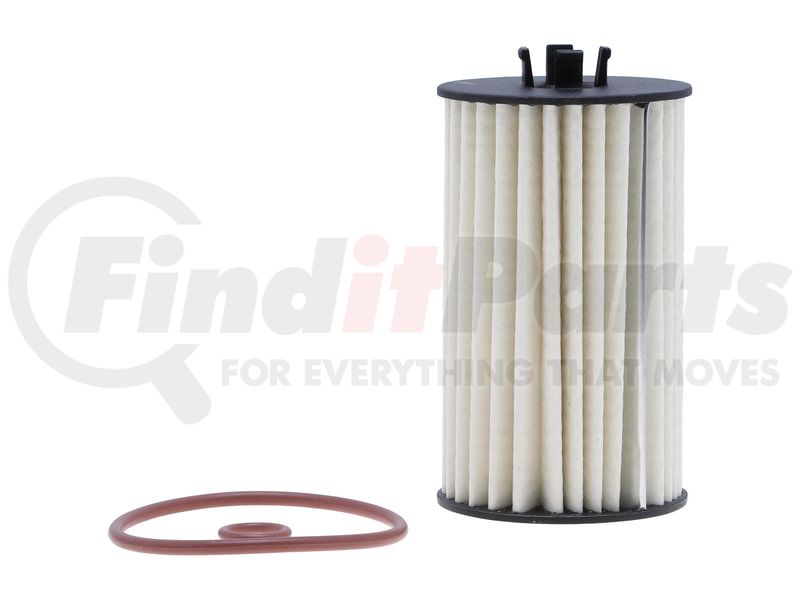

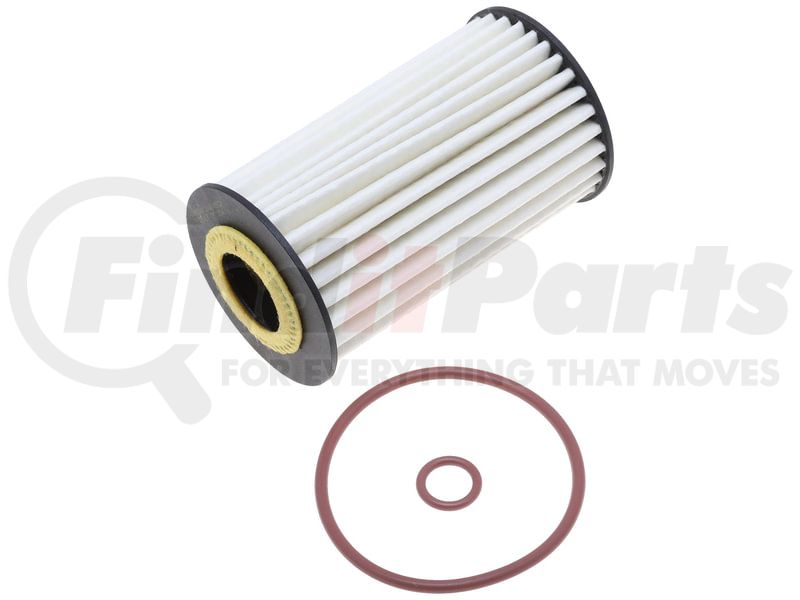

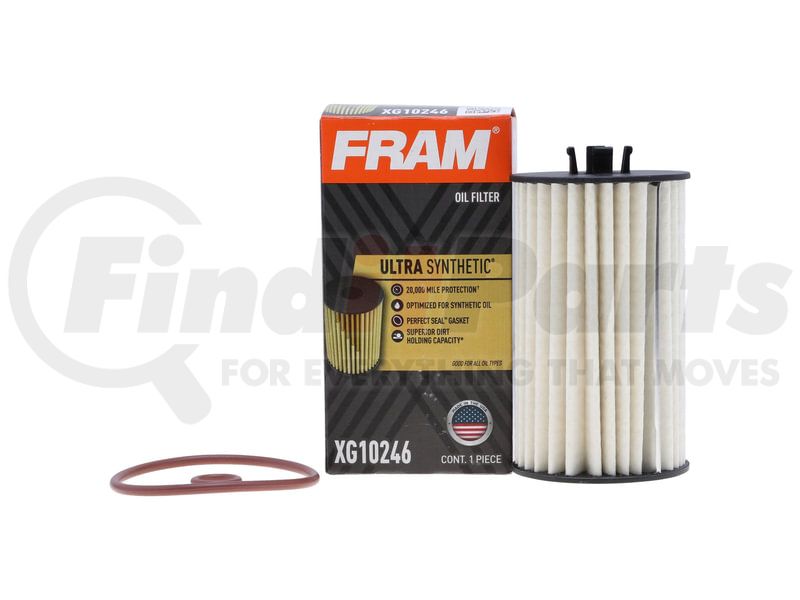

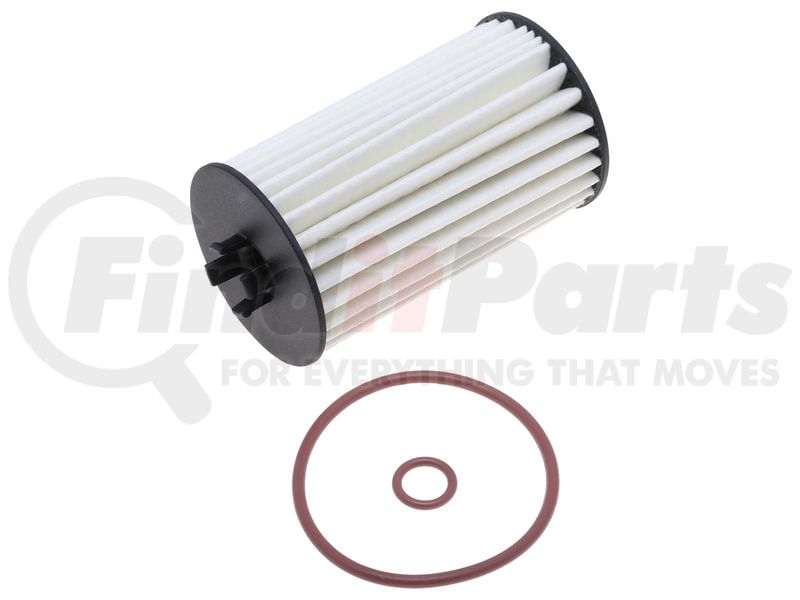

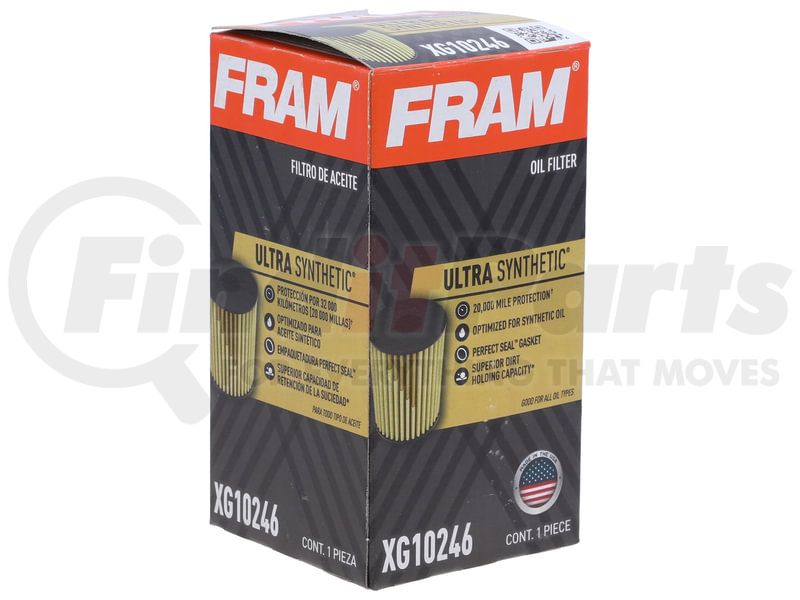

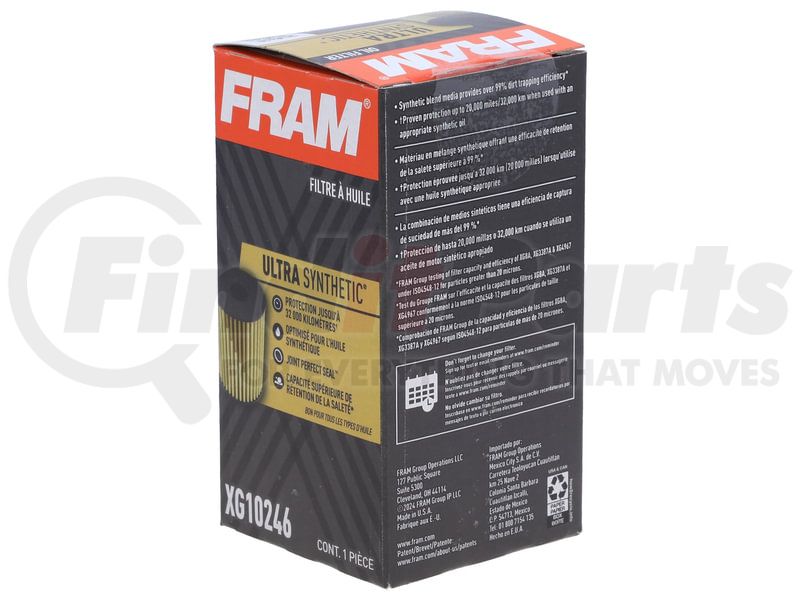

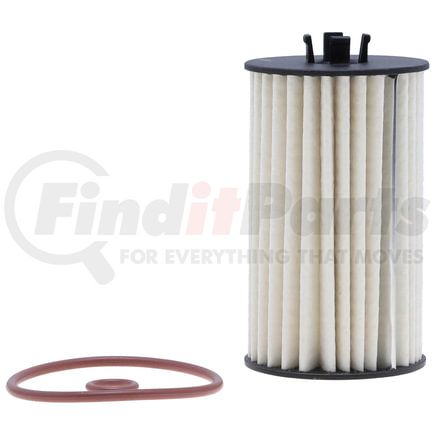

FRAM XG10246 - Cartridge Oil Filter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FRAM part description
Product Description
FRAM, XG10246, Oil Filter
Features & Benefits
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Synthetic |
| Height | 4.134 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Ultimate |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.063 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.461 IN |
| O-ring Outside Diameter | 2.600 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.264 in |
| Outer Diameter Top | 2.264 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.365 in |
| Torque Nut | No |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100561558 |
| UNSPSC | 15121501 |
Part Interchanges
- Champ P981
- Bosch 72260WS
- Casite Filters CF643
- Hastings LF643
- K&N PS-7027
- Promotive PH5839
- Group 7 V5839
- ACDelco PF101G
- Purolator L15839
- Wix 57674
- LUBER-FINER P981
- Carquest 84674
- Service Champ CF5839
- Mann-Filter HU612/2X
- Certified CCH10246
- General Motors 55576499
- Hengst E614HD256
- Warner WP981
- Opel 5650359
- Mobil 1 M1C-257
- Pronto PO-5839
- MicroGard MGL10246
- MotoMaster MCH10246
- Defense Filters DL10246
- STP S10246
- Parts Master 67674
- Premium Guard PG5839
- MAHLE OX254D4ECO
- NAPA 7674
- FVP G7674
- Tough Guard TG10246
- MOBIL MO981
- Hastings LF643F
- ACDelco PF2257G
- Carquest R84674
- Mann-Filter ML1053
- General Motors 55594651
- General Motors 55594652
- General Motors 93185674
- Mobil 1 M1C-257A
- MAHLE OX401D
- Carquest Premium Filters 84674
- Carquest Standard Filters R84674
- FRAM CH10246
- MicroGard MGL57674
- Valvoline VO-98
- STP S10246ML
- STP S10246XL
- Prime Guard Filters - Archived POF5839
- Purolator BOSS PBL15839
- FRAM Tough Guard TG10246
- FRAM Core COR10246ACC
- Mobil MO981
- K&N HP_7027
- Mighty Distributing System M981
- Pennzoil PZ171
- Quaker State QS171
- Mahle OX254D4ECO
- Factory Motor Parts G7674
- Champion 55674T
- STP Filters S10246
- Performax PO-171
- NAPA Gold Filters 7674
- NAPA ProSelect Filters 27674
- Champion Filters 55674T
- ECOGARD X5839
- NAPA Platinum Filters 7674
- Warner Filters WP981
- PureZone 8-57674
- Purolator TECH TL15839
- PurolatorONE PL15839
- FRAM Ultra Synthetic XG10246
- FRAM Force FF10246
- FRAM Titanium FS10246
- FRAM Drive FD10246
- FRAM Pro FP10246
- FRAM Synthetic Endurance FE10246
- General Motors 55588497
- Parts Master 67674X
- Champion Filters COC10246
- Champion COC10246
- FRAM Pro FP10246BP
- Mahle OX401D
- ACDelco PF2264G
- STP Filters S10246ML
- STP Filters S10246XL
- PurolatorONE VO-98
- Wix WL10331
- FRAM XG10246
Fits Vehicles
- Suzuki Aerio (2002)
- Pontiac G3 Wave (2009)
- Chevrolet Equinox (2018-2019)
- Chevrolet Cruze Limited (2016)
- GMC Canyon (2017-2022)
- GMC Terrain (2018-2019)
- Buick Cascada (2016-2019)
- Chevrolet Colorado (2017-2022)
- Chevrolet Malibu (2016-2019)
- Chevrolet Trax (2013-2021)
- Chevrolet Sonic (2012-2020)
- Buick Encore (2013-2021)
- Chevrolet Cruze (2011-2015, 2017-2019)
- Chevrolet Aveo5 (2009-2011)
- Saturn Astra (2008-2009)
- Suzuki Swift+ (2009)
- Chevrolet Aveo (2009-2011)
- Pontiac G3 (2009-2010)
