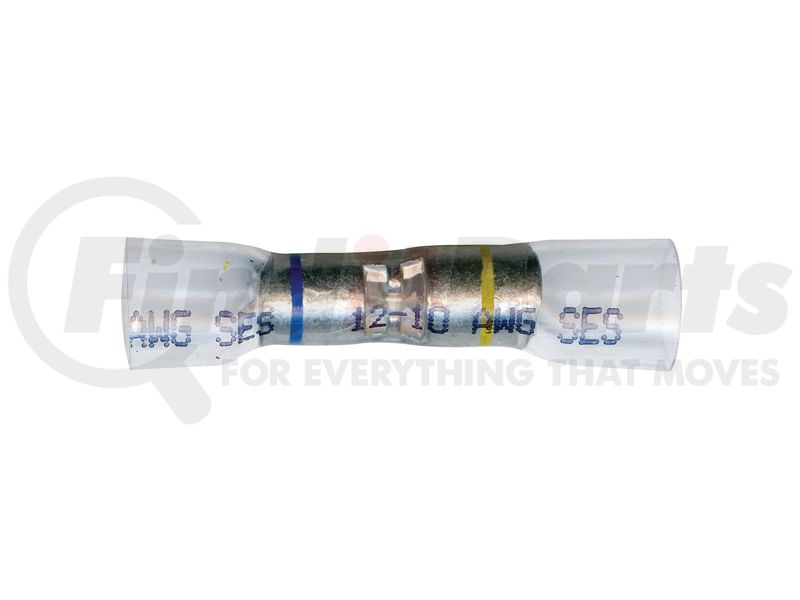

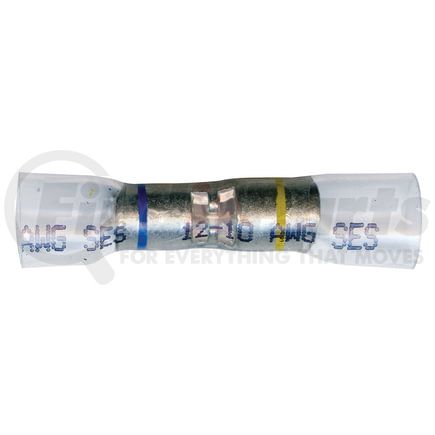

Grote 844625 - Opt; Seal Heat Shrink Step Down Butt, 16; 14 To 12; 10 Ga, Pk 15
$2349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GROTE part description
Product Description
Opt
Features & Benefits
- All butt connectors are comprised of copper with tin plating
- Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
- Seamless barrel butt connectors ensure superior crimp performance
- Step-down butt connectors have a uniform wall thickness for easy crimping & strong mechanical termination
- Window in center of connector assures that wire is stripped the proper length & fully seated
- Wire-stop in butt connectors prevents over-insertion of wire
Product Attributes
| Color | Clear w/Blue & Yellow Stripe |
| Connection Type | Step-Down Butt |
| Functions | Heat Shrinkable |
| Gauge | 16-14 to 12-10 GA |
| Material | Cross-linked ionic polymer |
| Operating temperature | -55°C to +125° (-67°F to +257°F) |
| Prop 65 Label Required | N |
| Rohs | Yes |
| Shrink Ratio | Exceeds 2.5 to 1 |
| Voltage | 600V |
| Package Type | Clamshell |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8536904000 |
| UPC | 00621935024277 |
| VMRS Code | 053007002 |
