Name: Main Filter MF0868154 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0868154
Price: 145.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.071
Inide Diameter Top	1.693
Outside Diameter Bottom	3.071
Inside Diameter Bottom	1.693
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	29.06498
Filter Area sq in	393
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM LUBER-FINER p/n LH95054
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0868154 replaces OEM LH95054 by LUBER-FINER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

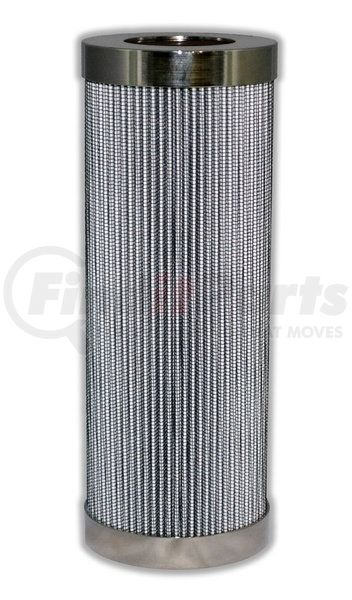

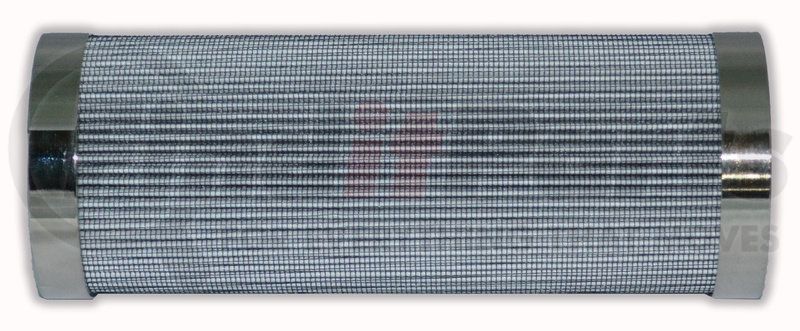

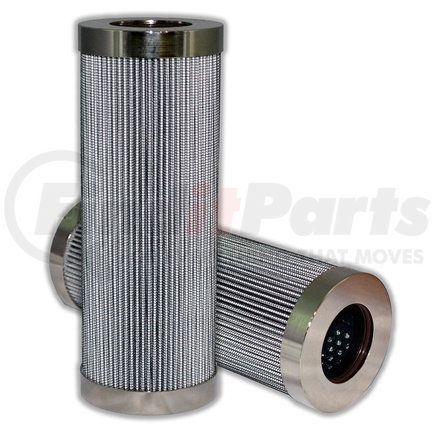

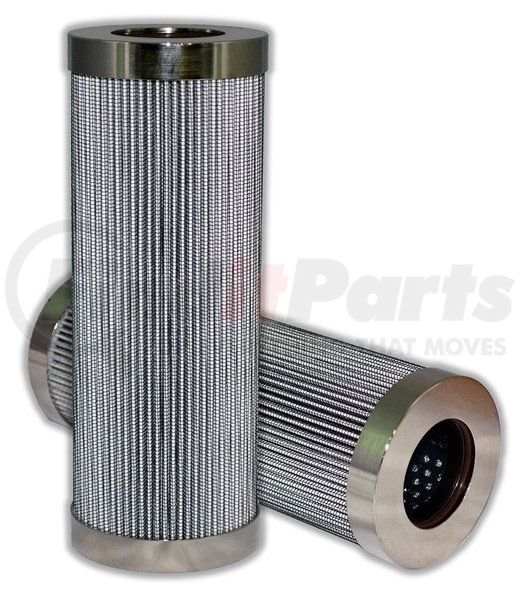

Images may be a general representations of products
Buy hydraulic filters direct from the manufacturer
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Features & Benefits

Interchange/replacement for OEM LUBER-FINER p/n LH95054
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0868154 replaces OEM LH95054 by LUBER-FINER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	8.14
Handle	No
Wrap	No
Product Media	Glass
Minimum Operating Temperature	-13 Deg Fahrenheit
Maximum Operating Temperature	248 Deg Fahrenheit
Dust Holding Capacity	29.06 grams
Inside Diameter (Bottom)	1.69 in.
Filter Area (sq. in.)	393
Bypass	No
Flow Direction	Outside-In
Beta Ratio 1	200/3
Micron Rating	3
Fluid Type	HH / HL / HM / HV
Outside Diameter (Bottom)	3.07 in.
Beta Ratio 2	1000/4.5
Collapse Pressure	3045
Outside Diameter (Top)	3.07 in.
Inside Diameter (Top)	1.69 in.
Gasket Material	Viton

Part Interchanges

LUBER-FINER LH95054

MAIN FILTER MF0868154 Cross Reference

We have 1 alternatives for the MF0868154 by MAIN FILTER:

LUBER-FINER LH95054
