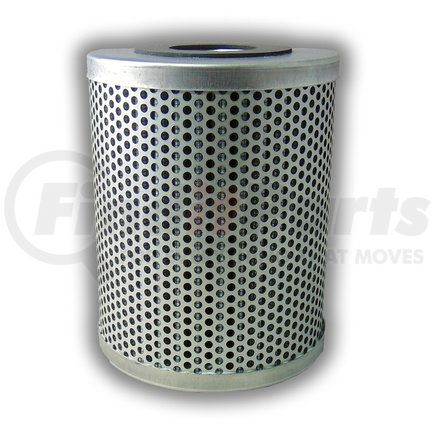

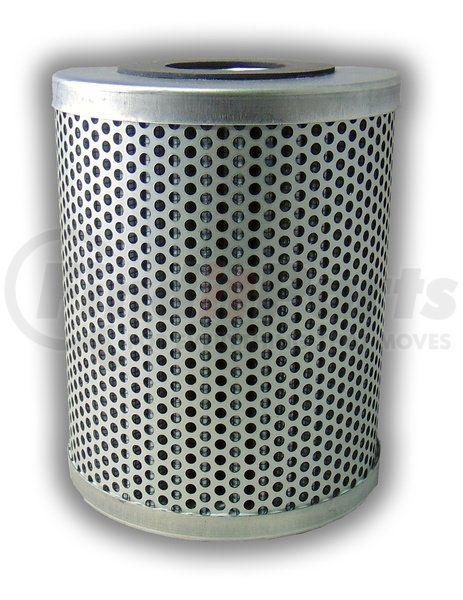

(888) 312-8812 Login SignupMAIN FILTER MF0309133 Aftermarket Replacement Hydraulic Filter, 40 Micron Glass Media, 5.157 in. Height
MSRP: $45.11
$4149
Save $3.62
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 3
MAIN FILTER MF0309133 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 40 Micron Glass Media, Buna N Seal
Features & Benefits
- Interchange/replacement for OEM FLEETGUARD p/n HF8140
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0309133 replaces OEM HF8140 by FLEETGUARD and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 4.016 |
| Inide Diameter Top | 1.378 |
| Outside Diameter Bottom | 4.016 |
| Inside Diameter Bottom | 1.142 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/38.2 |
| Beta Ratio 2 | 1000/42.4 |
| Micron 1 | 40 |
| bypass | No |
| handle | No |
| wrap | Yes |
MAIN FILTER MF0309133 Specifications
Product Attributes
| Product Media | Glass |
| Wrap | Yes |
| Micron Rating | 40 |
| Inside Diameter (Top) | 1.38 in. |
| Outside Diameter (Top) | 4.02 in. |
| Outside Diameter (Bottom) | 4.02 in. |
| Flow Direction | Inside Out |
| Maximum Operating Temperature | 248-deg. F |
| Height (in.) | 5.16 |
| Beta Ratio 1 | 200/38.2 |
| Inside Diameter (Bottom) | 1.14 in. |
| Fluid Type | HL, HM, HV, HH |
| Bypass | No |
| Beta Ratio 2 | 1000/42.4 |
| Handle | No |
| Gasket Material | Buna N |
| Collapse Pressure | 75 |
| Minimum Operating Temperature | -13-deg. F |
| Bottom Inside Diameter | 1.142 in. |
| Bottom Outside Diameter | 4.016 in. |
| Filter Rating | 40 micron |
| Filter Media | Glass |
| Flow Type | Inside Out |
| Height | 5.157 in. |
| Seal Type | Buna N |
| Top Inside Diameter | 1.378 in. |
| Top Outside Diameter | 4.016 in. |
MAIN FILTER MF0309133 Cross References
| Brand | Part Number |
|---|---|
| FLEETGUARD | HF8140 |
