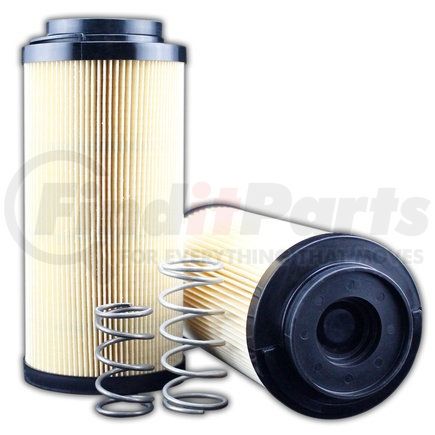

(888) 312-8812 Login SignupMAIN FILTER MF0309043 Aftermarket Replacement Hydraulic Filter with 25 Micron Rating, Cellulose, Outside-In Flow
$4649
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 29
MAIN FILTER MF0309043 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FLEETGUARD p/n HF7906
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0309043 replaces OEM HF7906 by FLEETGUARD and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.898 |
| Inide Diameter Top | 1.595 |
| Outside Diameter Bottom | 3.898 |
| BPVS Setting PSI | 25 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 23.0888 |
| Filter Area sq in | 577 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/25 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM FLEETGUARD p/n HF7906
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0309043 replaces OEM HF7906 by FLEETGUARD and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- Built using Quality Components with strict quality control.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0309043 Specifications
Product Attributes
| Micron Rating | 25 |
| Wrap | No |
| Height (in.) | 8.62 |
| Product Media | Cellulose |
| Handle | No |
| Bypass | Yes |
| BPVS Setting (PSI) | 24.7 |
| Outside Diameter (Bottom) | 3.9 in. |
| Outside Diameter (Top) | 3.9 in. |
| Inside Diameter (Top) | 1.59 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Collapse Pressure | 145 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 577 |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Gasket Material | Viton |
| Dust Holding Capacity | 23.09 grams |
| Beta Ratio 1 | 2/25 |
MAIN FILTER MF0309043 Cross References
| Brand | Part Number |
|---|---|
| FLEETGUARD | HF7906 |
