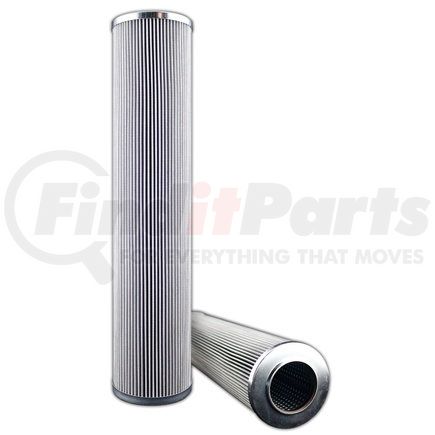

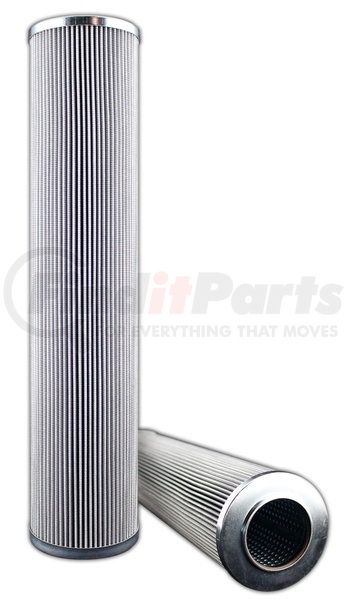

Name: Main Filter MF0337243 Aftermarket Replacement Hydraulic Filter with 5 Micron Rating, Glass, Outside-In Flow
SKU: mf0337243
Price: 82.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.78
Inide Diameter Top	2.224
Outside Diameter Bottom	3.78
Collapse Pressure	363
Operating Temp Min F	-13
Operating Temp Max F	248
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5

Features & Benefits

Interchange/replacement for OEM PALL p/n HC8900FKN16Z
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0337243 replaces OEM HC8900FKN16Z by PALL and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM PALL p/n HC8900FKN16Z
Main Filter MF0337243 replaces OEM HC8900FKN16Z by PALL and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Images may be a general representations of products
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM PALL p/n HC8900FKN16Z
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0337243 replaces OEM HC8900FKN16Z by PALL and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	16.88
Handle	No
Bypass	No
Product Media	Glass
Wrap	No
Flow Direction	Outside-In
Gasket Material	Viton
Outside Diameter (Top)	3.78 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Fluid Type	HH / HL / HM / HV
Minimum Operating Temperature	-13 Deg Fahrenheit
Micron Rating	5
Beta Ratio 2	1000/7.7
Beta Ratio 1	200/5.4
Outside Diameter (Bottom)	3.78 in.
Collapse Pressure	363
Inside Diameter (Top)	2.22 in.

Part Interchanges

Pall HC8900FKN16Z

MAIN FILTER MF0337243 Cross Reference

We have 1 alternatives for the MF0337243 by MAIN FILTER:

PALL HC8900FKN16Z
