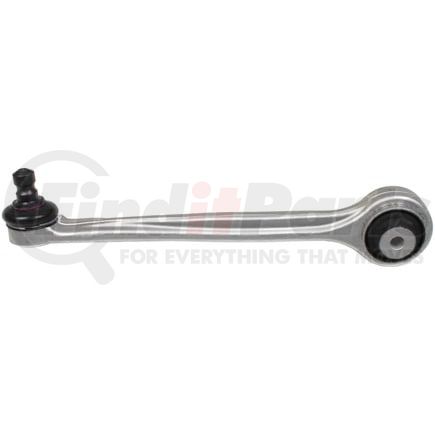

(888) 312-8812 Login SignupDELPHI TC3796 Control Arm and Ball Joint Assembly
Tap to view 2 more
$11749
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC3796 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3796 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Forward |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greaseable | No |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 41.00 MM |
| Control Arm Maximum Length | 268.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Bushing Inside Diameter | 10.20 MM |
| Bushing Length | 49.90 MM |
| Ball Joint Stud Length | 1.614 IN |
| Control Arm Maximum Length | 10.551 IN |
| Bushing Inside Diameter | 0.402 IN |
| Bushing Length | 1.965 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604357606 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC3796 Cross References
| Brand | Part Number |
|---|---|
| Audi | 8W0 407 505 C |
| CORTECO | 49107258 |
| DORMAN | 527-055, CB12157, CB12157PR |
| MEVOTECH | CMS701148 |
| MEYLE | 1160500245 |
| N/A | 1028065, CMS701148 |
| VAICO | V105263 |
DELPHI TC3796 Fits Vehicles
- Audi RS5 Sportback (2019, 2021-2022)
- Audi S5 Sportback (2018)
- Audi A5 Sportback (2018)
- Audi A5 Quattro (2018-2022)
- Audi RS5 (2018-2019, 2021-2022)
- Audi S5 (2018-2022)
- Audi A4 allroad (2017-2022)
- Audi S4 (2016-2022)
- Audi A4 Quattro (2016-2022)
- Audi A4 (2016-2019)
