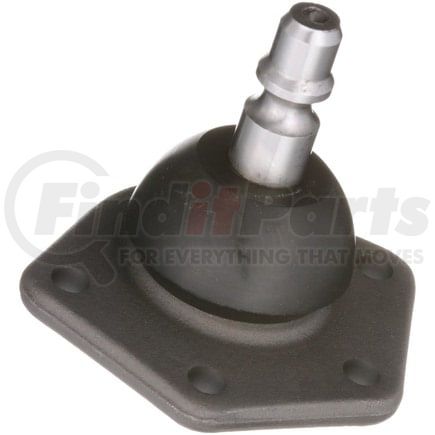

Delphi TC2580 - Ball Joint
$3149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 82 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.220 IN |
| Mounting Bolt Length | 31.00 MM |
| Washers Included | No |
| Height | 4.016 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 102 MM |
| Wrench Size | 12.7mm |
| Stud Type | Non-Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.313 IN |
| Mounting Bolt Head Diameter | 0.555 IN |
| Mounting Bolt Head Diameter | 14.10 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Length | 29.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Length | 4.010 IN |
| Length | 103.00 MM |
| Height | 102.01 MM |
| Stud Thread Length | 4.02 IN |
| Mounting Bolt Shank Diameter | 7.95 MM |
| Mounting Bolt Thread Length | 1.140 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604342091 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ford Aerostar (1986-1997)
