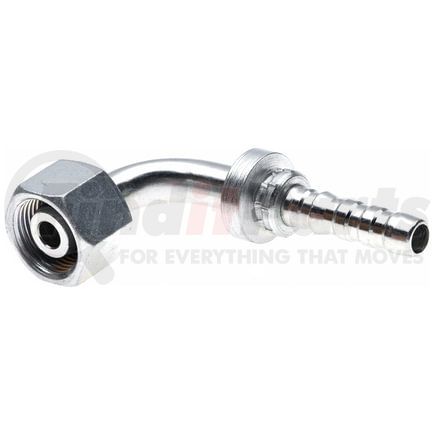

Gates G18730-1630 - Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube S Series
$54099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube S Series
Features & Benefits
- Stainless steel couplings last longer than standard couplings so you can avoid replacing an entire assembly before the hose itself needs replacement
- Fortified with 316 grade stainless steel
- Gates Stainless Steel stems are available in the B series for braided hose or the S series for spiral-wire
Product Attributes
| Coupling Description | Stainless Steel Spiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube S Series |
| Industrial Description | 16S-30FDHORX90-SS |
| Thread Size | M42X2.0 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Gates EFG3K, EFG4K, EFG5K, EFG6K, M4K, M4KL |
| Outside Diameter | 30 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 3.26 IN |
| Length | 5.5 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 82.8 MM |
| Length | 139.7 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075717997 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
